ROCKWOOL® Timber Frame Slab - Insulation

Verified by manufacturer 22 days ago

1200 x 570 x 90 mm

ROCKWOOL Ltd Variant:

Non-combustible thermal insulation designed specifically for timber frames.

Jump to:
BOS
+44 (0)1656 862621 Website

Application

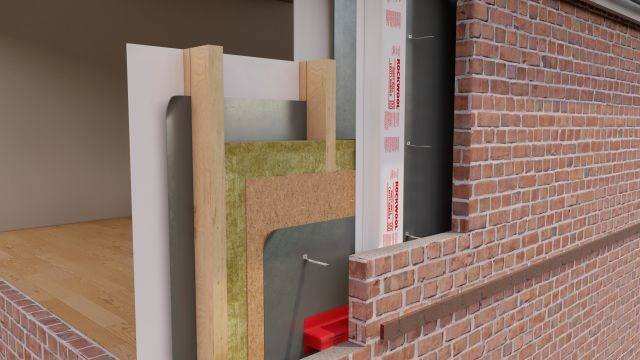

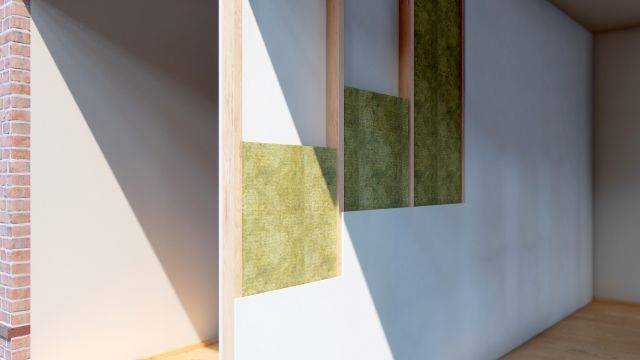

Designed specifically for quick and easy installation into the standard size 600 mm (on centre) studs of external timber frame walls. This means the insulation takes less time to install, is a more reliable and long-lasting fit, and that the performance does not diminish over the lifetime of the building.

Description

ROCKWOOL® Timber Frame Slab delivers performance to meet and exceed thermal building regulations for external walls in timber frame buildings. Being made from stone wool means the highest Euroclass A1 non-combustible reaction to fire as well as exceptional sound absorption properties. The Timber Frame Slab delivers thermal performance at an optimal weight and features dimensions tailored for external timber frame walls.


Features and benefits:

  • Low thermal conductivity of 0.034 W/m·K.
  • Non-combustible, Euroclass A1 non-combustible rated.
  • Open cell stone wool structure delivers outstanding sound absorption.
  • Robust and durable stone wool slabs that maintain shape, fit and performance over time.
  • A sustainable, recyclable solution.
  • Produced using abundant, renewable volcanic rock.
  • CE marked to BS EN13162:2012+A1:2015.


Acoustic performance:

Timber Frame Slab can significantly reduce outside sources of noise when used in an external wall.


Water resistance:

ROCKWOOL stone wool repels liquid water due to its fibre orientation and a water repellent additive.

General information

Color

Yellow

Material

Stone wool

Shape

Rectangle

Length

1200 mm

Width

570 mm

400 mm

Height

90 mm

140 mm

Uniclass

Pr_25_57_06_56 Mineral wool slab insulationPrimary

CAWS

P10/40 Insulation fitted betweenor to the face ofstuds

P10/190 Insulation fitted between studs

Specification data - Mineral wool slab insulation

General requirements

Insulation products generally.

Standard

To BS EN 13162; ISO 14001; ISO 9001.

Thickness

90 mm.

Edges

Manufacturer's standard.

Density

Manufacturer's standard.

Thermal conductivity (maximum)

0.034 W/m·K.

Compressive strength (minimum)

Manufacturer's standard.

Fire performance

To 13501-1, Euroclass A1.

Guidance for specification option:

Non-combustible.

Water vapour resistance

5.9 MNs/gm.

Dimensions

1200 x 570 mm.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

Can be recycled

Manufacturer guidance

ROCKWOOL stone wool insulation is recyclable and can be transformed into new ROCKWOOL products. Please contact us for details of how we can work together to recycle waste ROCKWOOL stone wool material that may be generated during on-site installation.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Case studies

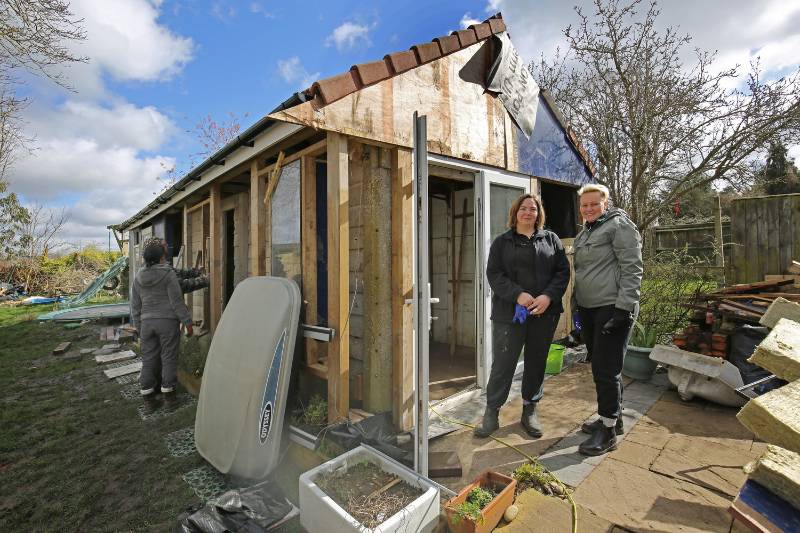

Rosebury Road, Garage Conversion

Rosebury Road, Garage Conversion

Similar products from ROCKWOOL Ltd

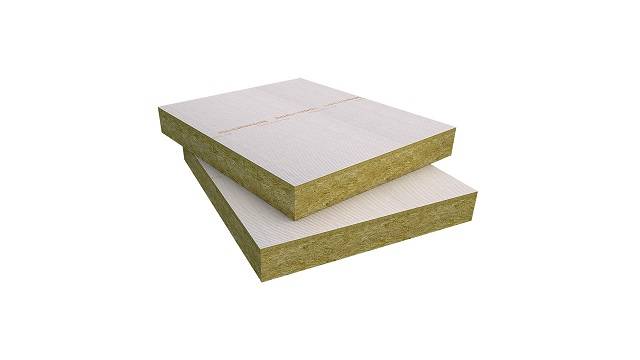

FirePro® Ablative Coated Batt - Stone wool with ablative coating
