Roda VenturiSmoke VS1 - AOV Smoke vent SHEV - smoke vent

Verified by manufacturer 15 days ago

VS1--2-S1-S

Lamilux Rooflights Ltd Variant:
Third party certifications:
  • TUV - Safety and Quality Report

    Certificate type

  • EPD

    EPD

    Certificate type

A natural smoke and heat extractor vent.

Jump to:
01284 749051 Website

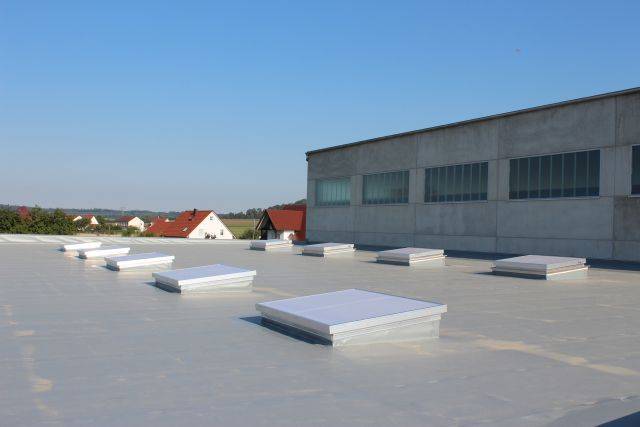

Application

Suitable for flat roofs (up to a maximum roof pitch of 15°).

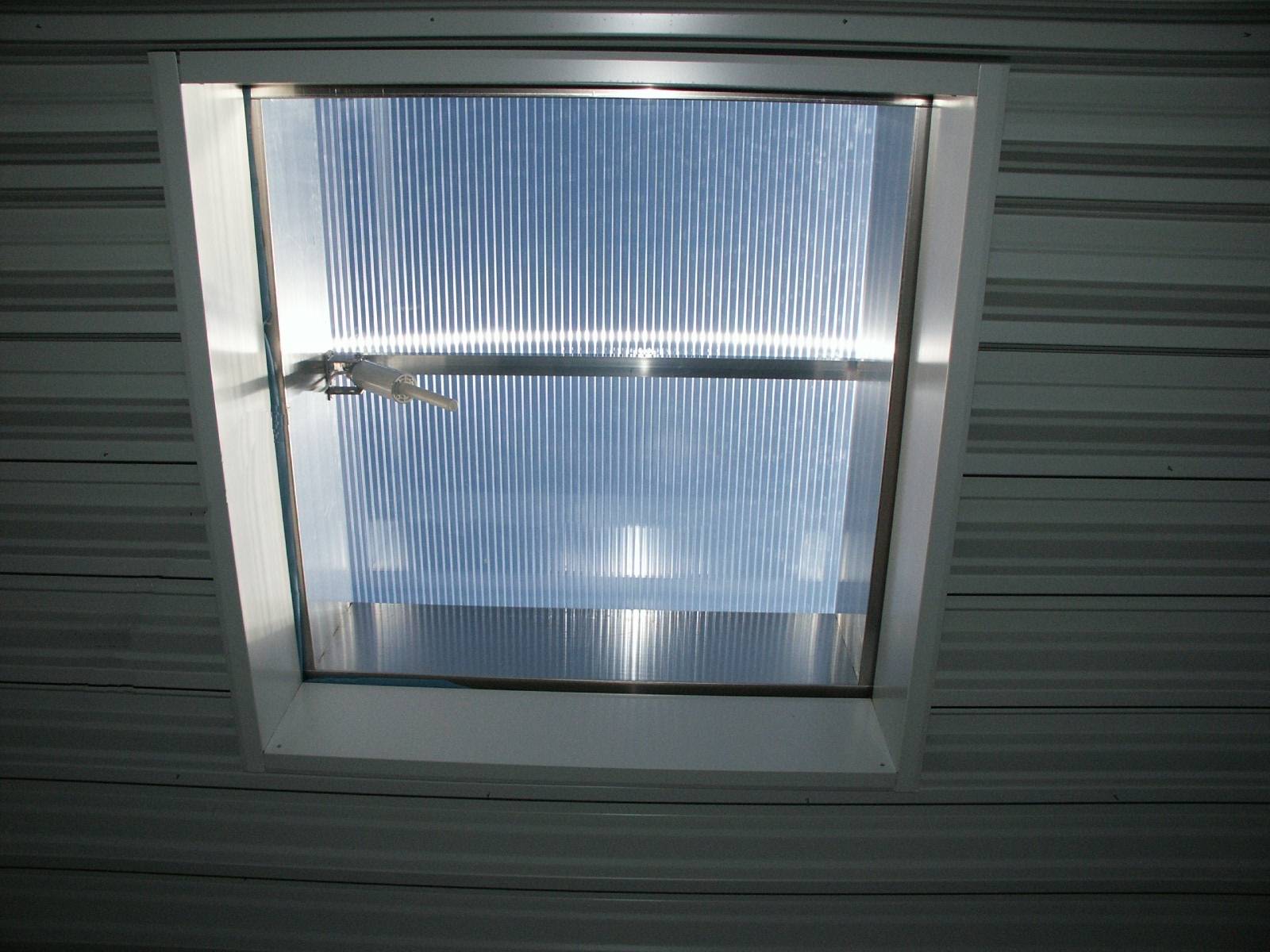

Description

VenturiSmoke is a natural smoke and heat extraction system (NSHE), which complies with European Standards, and features an opening panel that opens to an angle of 165° in case of fire.


Features and benefits:

  • Suitable for day-to-day ventilation, subject to model.
  • Durability tests of 10 000 open/close cycles.
  • Good aerodynamic effectiveness.
  • For daily ventilation, the 48 V drive allows for adjusting individual opening angles.
  • Also available with dark flap.
  • Energy-saving natural illumination.
  • Fall-through-safe, subject to model.
  • Fire classification A1, subject to model.
  • Delivery of the systems either pre-mounted and ready-for-use or in modular design.
  • Complies to the requirements of EN 12101-2.

General information

Finish

Mill

Material

Aluminium

Steel

Polycarbonate

Shape

Rectangle

Length

1250 mm

Width

1400 mm

1900 mm

Uniclass

Pr_70_65_04_56 Natural smoke and heat exhaust ventilatorsPrimary
Pr_30_59_72_31 Framed rooflights

CAWS

L10/45 Rooflights

L10/460 Rooflights

L10/490 Roof ventilators

Product range

Smoke ventilation

Specification data - Natural smoke and heat exhaust ventilators

Standard

To EN 12101-2.

Opening type

Single flap.

Mounting

Roof-mounted.

Guidance for specification option:

Suitable for flat roofs (up to maximum roof pitch of 15°).

Aerodynamic free area

1.1 m².

Manufacturer guidance

Non-standard sizes are available on request.

Reliability classification

Re 1000.

Guidance for specification option:

Tested and certified up to Re 1000.

Snow load classification

Up to SL 4000.

Guidance for specification option:

Subject to unit size and model.

Low ambient temperature classification

T (-05).

Wind load classification

Up to WL 4500, subject to unit size and model.

Arrangement

Aluminium and polycarbonate.

Dimensions

-

Length

1400 mm.

Width

1250 mm.

Controls

SHEV fitting - 48 V d.c. motor 3.0 A.

Guidance for specification option:

Opening angle approximately 165°.

Materials

-

Ventilator

-

Frame

Aluminium alloy AlMg3, AlMgSi05F22 and steel parts.

Glazing

A2 - double-skinned aluminium (insulated).

K2 - 16 mm clear / opal polycarbonate.

Finish

Mill finish.

Integral upstands

-

Material

Delivered pre-mounted on 450 mm high conical upstand and ready-for-installation.

Seals

EPDM seals.

Accessories

None.

Anti-fall grid.

Timer for night cooling.

Wind and rain sensor for bad weather protection.

Hinges

Hinges are fitted with positive-locking at the lateral side of the system base.

Guidance for specification option:

Two hinges are used for system sizes with a roof opening length of up to 1500 mm. Roof opening lengths of more than 1500 mm require three hinges.

Sustainability data

Contains Red List materials

No

Country of product manufacture

Germany

Third party certifications

Third party certifications

TUV - Safety and Quality Report

TUV - Safety and Quality Report

ISO 50001:2011

EPD

EPD

EDP - Barrel Vault Rooflight

TUV - Safety and Quality Report

TUV - Safety and Quality Report

ISO 9001 : 2015
