Roflex Airtight Grommets - Pipe Sealing Grommet

Verified by manufacturer 5 months ago

ROFLEX 20 multi (for nine 15–30 mm pipes)

Pro Clima Variant:
Third party certifications:
  • Passive House Institute - Certificate

    Passive House Institute - Certificate

    Certificate type

A range of sealing grommets for pipes Ø 15–320 mm, for interior and exterior use.

Jump to:
+44 (0)1228 711511 Website

Application

Internal or external roofs, walls and floors on pipes and ducts of 20–300 mm diameter. When used with Tescon Vana airtight tape as the adhesive, Roflex will stick to any air or windtight membrane, smooth planed or painted timber, wood-based panel or board, concrete, metal and plastic. The end of the pipe or duct must be accessible so it can be fed through the grommet.

Description

Roflex grommets are heat-resistant EPDM rubber seals for airtight sealing around circular pipes and ducting. For 15–320 mm diameter pipes, Roflex is available as a single pipe grommet with self-adhesive backing or a multiple pipe grommet that needs to be taped. For pipes over 30 mm and up to 320 mm diameter, Roflex can seal one pipe per grommet and is sealed with Tescon Vana airtight tape. Tescon Vana is a tape that has been tested and proved to remain airtight for 100 years. Roflex of 30 mm and larger and sold in pack sizes of 10 or 15 grommets do not come with tape.


Features and benefits:

  • Does not stick to the pipe.
  • Highly adaptable.
  • Easily seal around all common pipe and duct sizes.
  • Stretchy EPDM rubber allows the user to easily seal around pipes and ducts with confidence in achieving a permanent airtight seal.
  • The grommet allows for pipes and ducts to be re-positioned after installation without affecting the airtight seal.
  • Highly versatile with multiple sizes available to seal any pipe/duct between 15–320 mm diameter.

General information

Color

Black

Material

Rubber

Shape

Square

Length

140 mm

200 mm

250 mm

300 mm

450 mm

Show more

Width

140 mm

200 mm

250 mm

300 mm

450 mm

Show more

Warranty description

Ten year

Uniclass

Pr_65_52_61_64 Pipe sleeve sealsPrimary

CAWS

P31/40 Sealing around services

P31/710 Sealing

J41/480 Pipe collars

J42/480 Pipe collars

J31/357 Pipe collars

Specification data - Pipe sleeve seals

Materials

-

Body

EPDM rubber.

Seal

EPDM rubber.

Size

200 x 200 mm.

Pipe diameter

Nine pipes with a diameter of 15–30 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Recyclability

Not recyclable due to the risk of damage when removing at end of life

Third party certifications

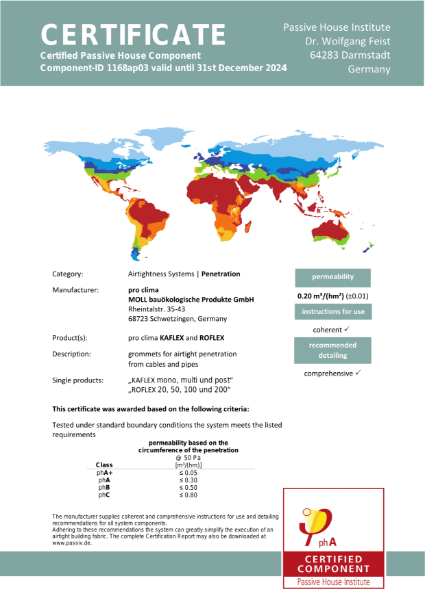

Passive House Institute - Certificate

Passive House Institute - Certificate

Pro Clima Kaflex and Roflex Passivhaus Component Certificate

Literature

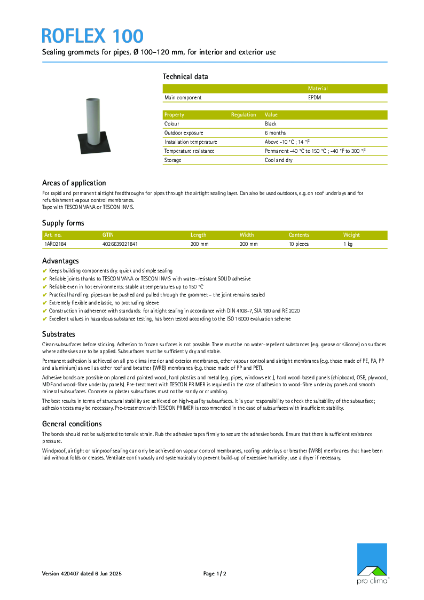

Roflex 100 Technical Datasheet

Roflex 100 Technical Datasheet

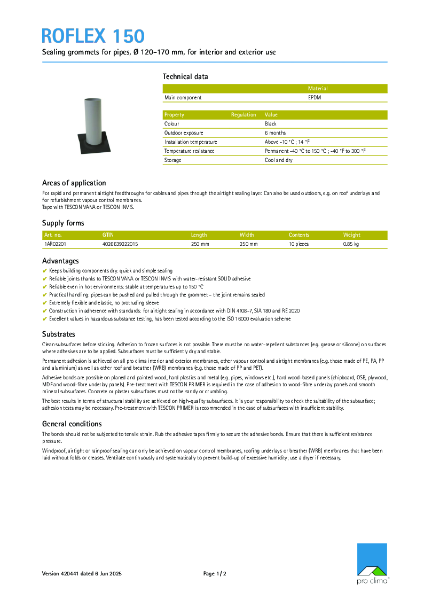

Roflex 150 Technical Datasheet

Roflex 150 Technical Datasheet

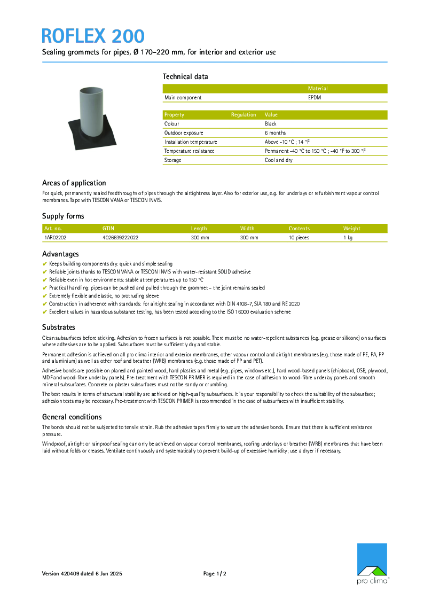

Roflex 200 Technical Datasheet

Roflex 200 Technical Datasheet

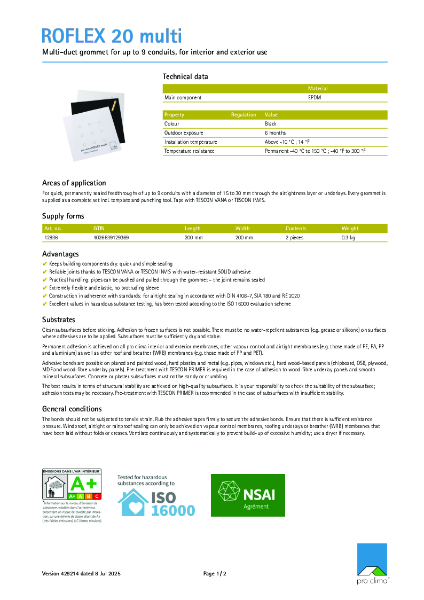

Roflex 20 Multi Technical Datasheet

Roflex 20 Multi Technical Datasheet

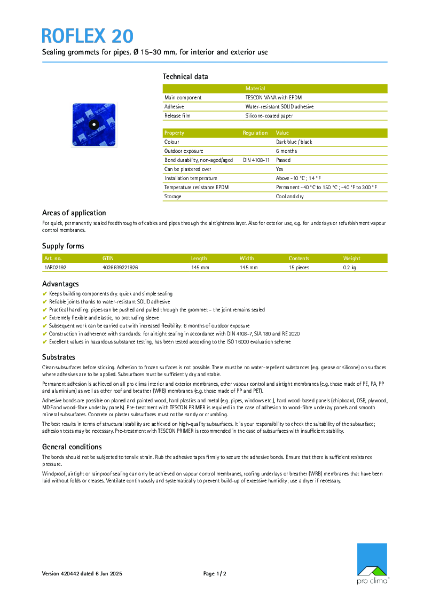

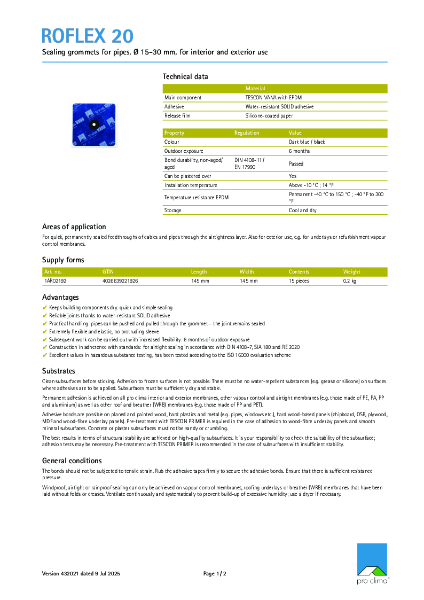

Roflex 20 Technical Datasheet

Roflex 20 Technical Datasheet

Roflex 250 Technical Datasheet

Roflex 250 Technical Datasheet

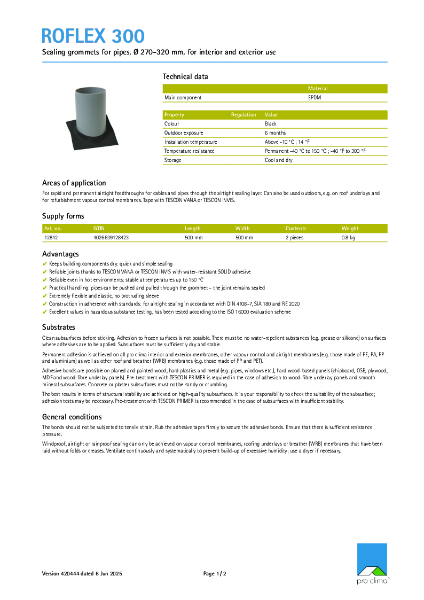

Roflex 300 Technical Datasheet

Roflex 300 Technical Datasheet

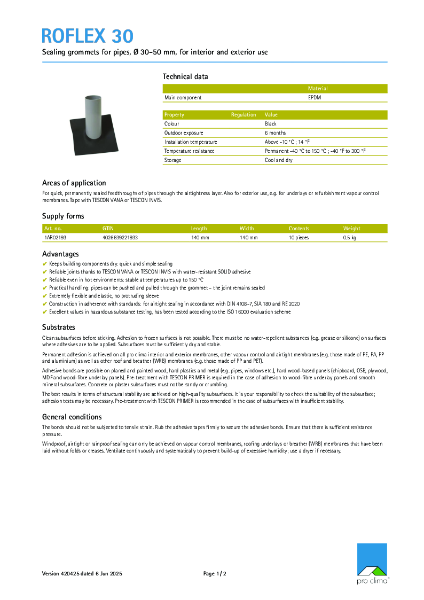

Roflex 30 Technical Datasheet

Roflex 30 Technical Datasheet

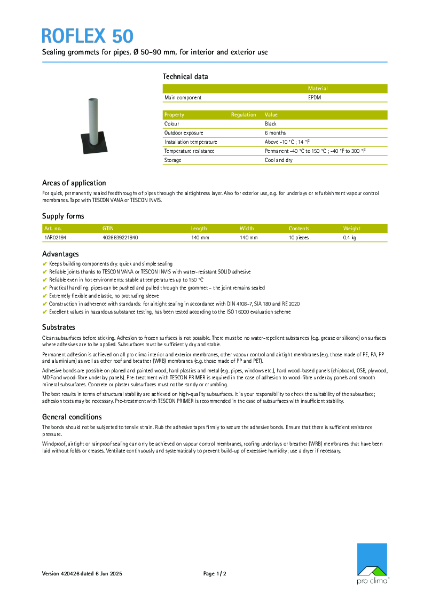

Roflex 50 Technical Datasheet

Roflex 50 Technical Datasheet

Pro Clima Warranty Agreement

Pro Clima Warranty Agreement

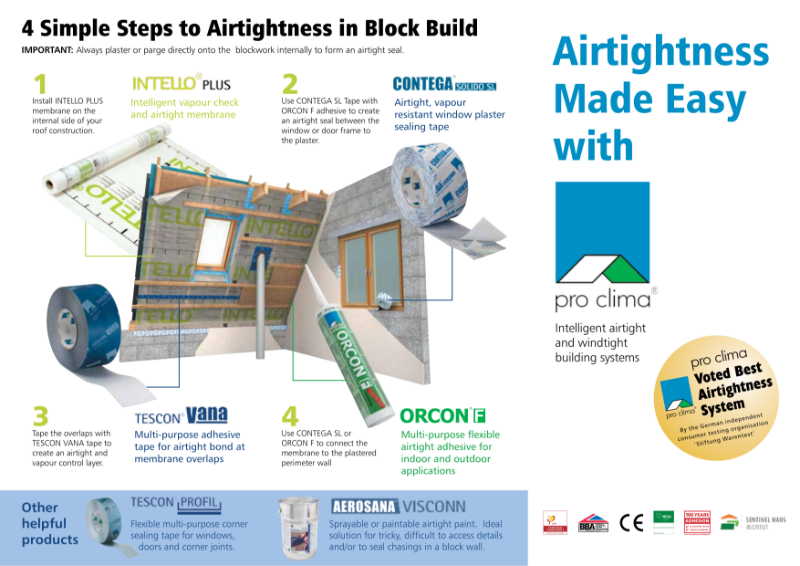

Airtightness Made Easy Ecological Building Systems Leaflet

Airtightness Made Easy Ecological Building Systems Leaflet

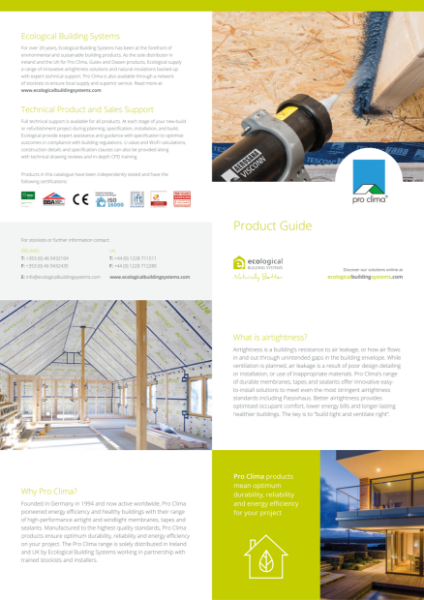

Pro Clima Product Guide EBS Leaflet

Pro Clima Product Guide EBS Leaflet

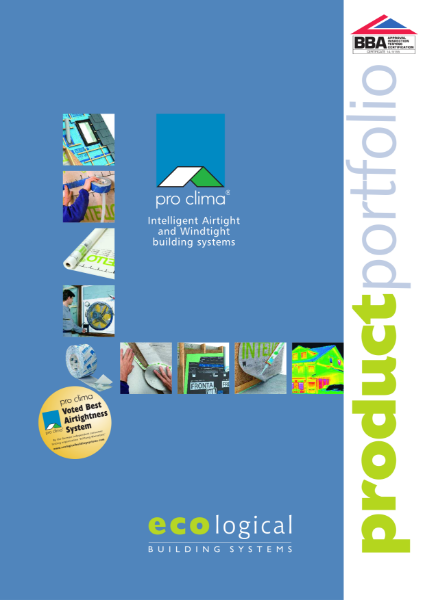

Pro Clima Product Portfolio

Pro Clima Product Portfolio

Case studies

Single Storey House, Fife

Single Storey House, Fife
