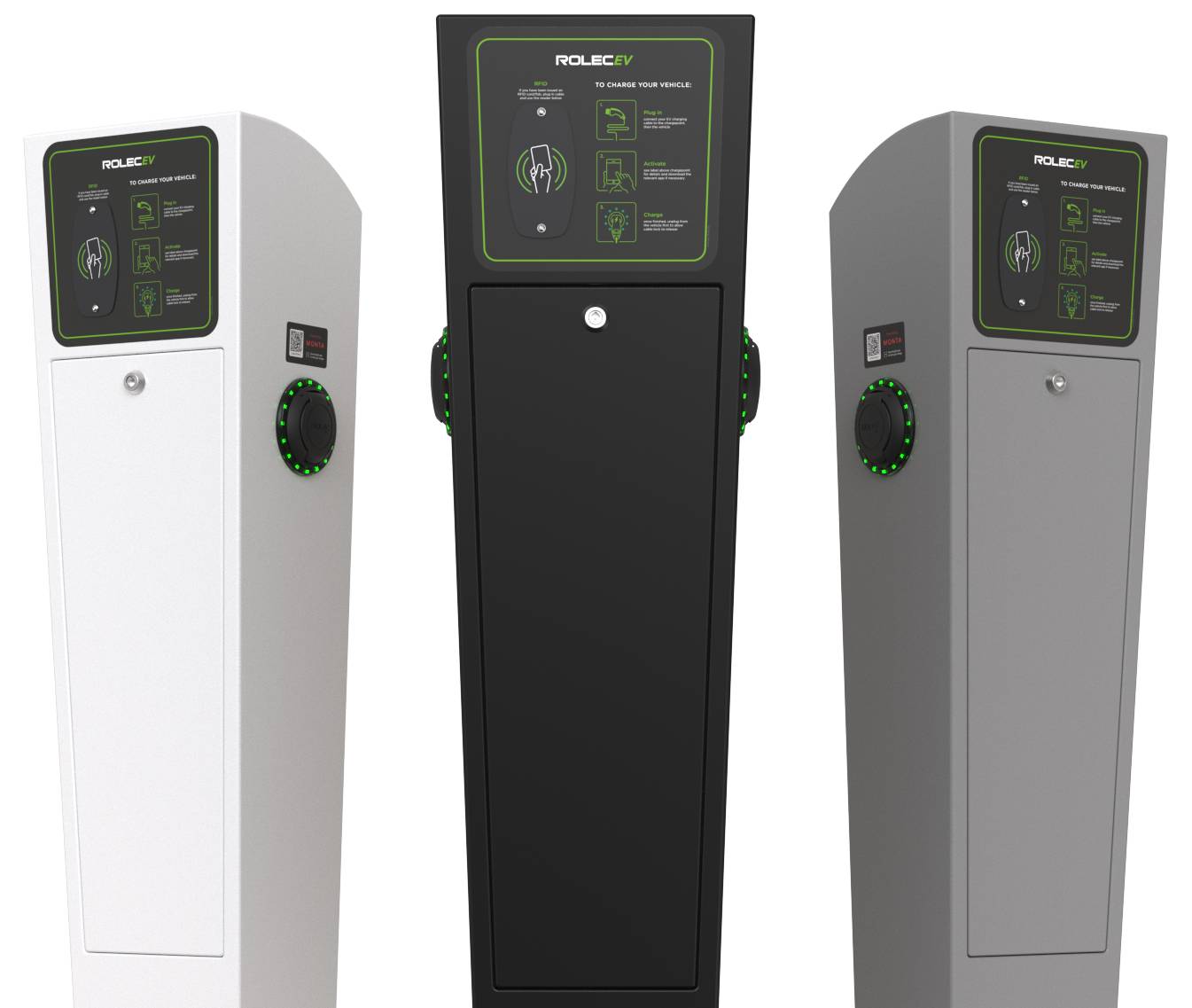

Rolec EV AutoCharge - Dual Socket - EV Charging Pedestal
Verified by manufacturer 17 days ago
AutoCharge 2 x 7.4kW Type 2 Sockets - Black (ROLEC0021B)
AutoCharge 2 x 7.4kW Type 2 Sockets - Black (ROLEC0021B)
An intelligent electric vehicle charging pedestal for workplaces and carparks.
Application
Suitable for workplaces, car parks, development sites and public locations.
Description
AutoCharge is a robust and hard-wearing EV charging pedestal. Its heavy-duty and vandal-resistant features make it a particularly suitable solution for exposed locations such as workplaces and public car parks.
This OCPP-compliant pedestal can offer a simple plug-and-charge or pay-to-charge solution via the EV driver’s smartphone and/ or RFID card/ fob through any chosen OCPP back-office management system.
Features and benefits:
- Plug and charge, mobile app or RFID-controlled charging.
- 2 x universal charging sockets.
- Up to 7.4 kW or 22 kW charging output(s).
- PME fault detection (no earth rod required).
- Supports dynamic load balancing and static load management.
- OCPP 1.6 compliant (can integrate with any back-office). MONTA is one of Rolec EV’s charge point operator partners. Other preferred back-office and mobile app partners include Fuuse, wattif, ChargePlace Scotland, and ev. energy.
- Over-the-air firmware/ software updates.
- Built-in AC overload and fault current protection (RCBO).
- Built-in 6 mA DC leakage protection.
- Switchgear and components behind lockable door.
- Cable lock feature (can be permanently locked by user).
- Integrated RFID reader(s).
- MID-approved energy metering.
- 4G/ Wi-Fi/ Ethernet connectivity.
- IK10 impact resistant design.
- Surface or root mountable.
- OZEV grant fundable.
- Designed and manufactured in the UK.
General information
Color | Black White Grey |
Finish | Powder-coated |
Material | Steel |
Shape | Other |
Length | 332 mm |
Width | 270 mm |
Height | 1275 mm |
Warranty description | Three year |
Uniclass | |
CAWS | V90/590 Equipment |
Product range |
Specification data - Electric vehicle charging points
Standards | To EN IEC 61851-1:2019, EN 61851-22:2002. |
Charging mode | 3. |
Input voltage | 230 V a.c. single-phase. |
Input current | Up to 63 A.Guidance for specification option: Chargepoint(s) will downrate if the input supply is lower than the maximum charging output. |
Rated frequency | 50/60 Hz. |
Power output | 7.4 kW. |
Outlet type | Double, Type 2 socket, to IEC 62196 series. |
Mounting | Ground-mounted.Guidance for specification option: With ground mounting base. Surface-mounted. |
Impact protection (minimum) | IK10. |
Ingress protection (minimum) | Enclosure IP54, socket IP54. |
Circuit protection | AC overload and fault current protection – 40 A 30 mA Type A RCBO (per socket). |
Accessories | RFID0010 RFID card.RFID0020 RFID fob.GMPG0010 Ground mounting base for AutoCharge pedestal.EVCB0020 Root mount protection barrier – 48 mm.EVCB0040 Surface mount protection barrier – 48 mm.EVPS0010 EV parking sign – A4 landscape.Guidance for specification option: Other sizes are available. EVPP0100 5 m 32 A Type 2 to Type 2 charging cable.EVPP0107 10 m 32 A Type 2 to Type 2 charging cable.EVPP0105 5 m 32 A Three phase Type 2 to Type 2 charging cable.EVPP0108 10 m 32 A Three phase Type 2 to Type 2 charging cable.Guidance for specification option: Other cables are available, including Type 1 options. ACSR0125 100 A up to 35 mm² screened CT clamp with 10 m cable.ACSR0520 Perific fuse protection device – 3 No. 36 mm current sensors.ACSR0530 Perific fuse protection device – 3 No. 100 mm current sensors. |
Operating temperature range | -30°C to +50°C. |
Colour | Black. |
Communications | 4G LTE Cat-1. |
Interfaces | Mobile app. |
Integral accessories | Integrated Class 1 MID compliant metering. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Steel |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
EVAD-V01-R8 AutoCharge Data Sheet
