Rollashield Armaroll - Compact Aluminium Roller Shutter

Verified by manufacturer 4 months ago

Tekta UK Third party certifications:
  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • CHAS

    CHAS

    Certificate type

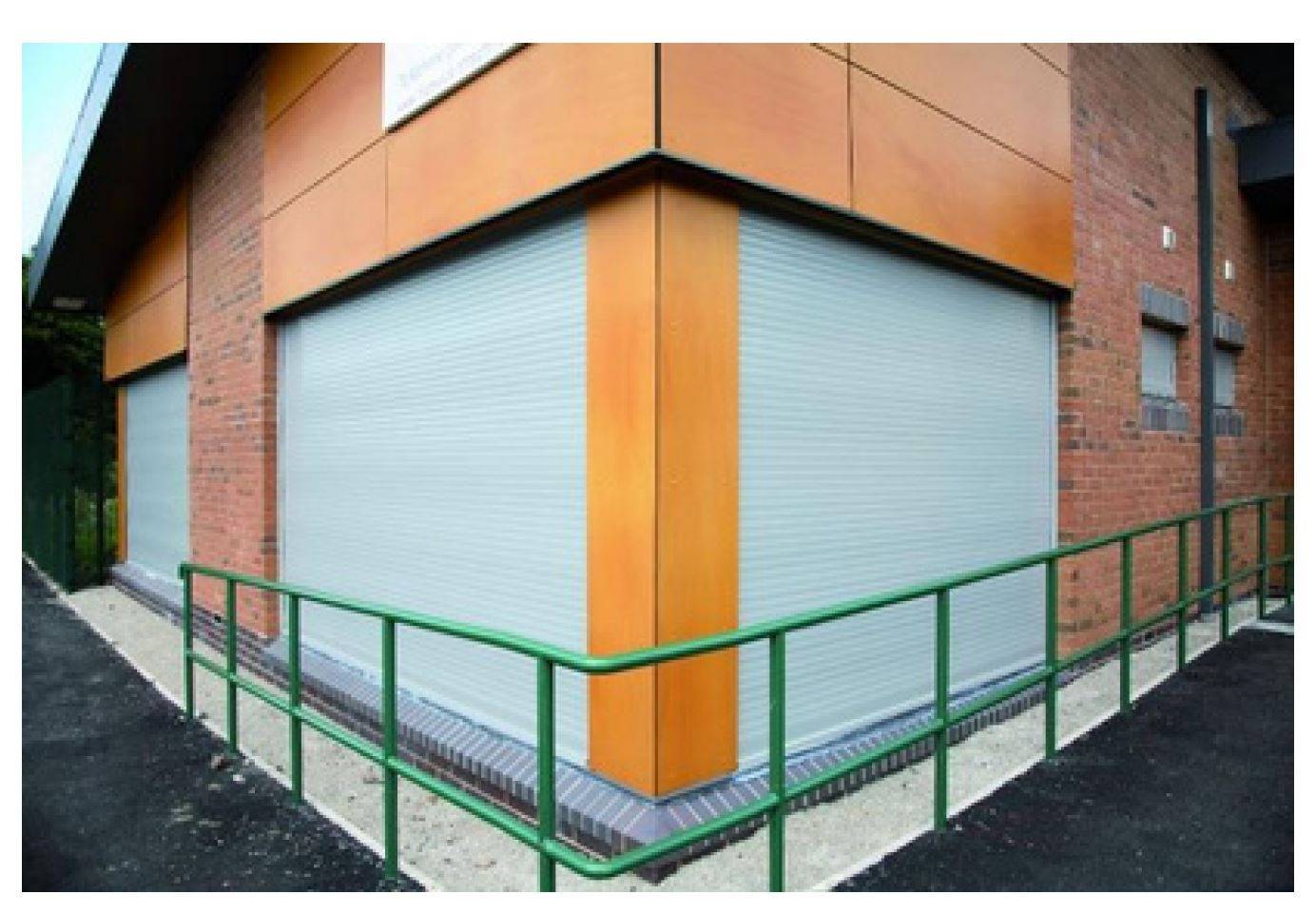

The Rollashield Armaroll range of aluminium shutters offers a corrosion-resistant solution for a wide range of medium security applications.

Jump to:
+ (44) 0330 7000 333 Website

Application

  • Serveries.
  • Kiosks.
  • Reception Areas.
  • Internal and External Openings.

Description

Continental-style aluminium roller shutters offer a simple and reliable operation for a variety of low-usage applications, and are designed to provide a strong and effective security barrier.


The product is constructed from a non-corrosive aluminium and is available as either an insulated, or non-insulated option. Available with four pre-finishes, or power coated to any standard RAL colour, this shutter can be designed to suit a variety of interiors.


Where through-vision is required, punched or perforated lathes are available to provide effective vision, without compromising security, making the Armaroll suitable for reception or entranceway applications.


Operated by a reliable tubular motor, the shutter is designed to be activated by a push button or key switch.


Features and benefits:

  • Corrosion resistant aluminium construction.
  • Compact frame design with tubular motor.
  • Effective security barrier.

General information

Color

Black

White

Brown

Beige

Finish

Powder-coated

Material

Aluminium

Shape

Square

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_84_73 Roller shuttersPrimary

CAWS

L20/60 Doors

L20/610 Roller shutters/ curtains

Specification data - Roller shutters

Standard

To EN 13241-1, BS EN 12433, BS EN 12604, BS EN 12605, BS EN 12424.

Opening sizes

-

Manufacturer guidance

Size (w x h): 3500 x 3500 mm. Larger sizes available on request. Insert requirements.

Format

External.

Arrangement

Face-fitted across opening.

Performance

-

Resistance to wind load

Up to Class 2.

Shutter curtain

-

Lath material

Extruded aluminium lath with black plastic end locks and aluminium bottom rail.

Insulated double-skin aluminium lath

Profile

Solid.

Guidance for specification option:

Standard.

Perforated.

Guidance for specification option:

Optional.

Finish and colour

RAL 9016.

RAL 9005.

RAL 8014.

RAL 1015.

Manufacturer guidance

Optional: Powder coated to any standard RAL colour.

Frame and guides

-

Material

Aluminium.

Finish

Powder coated.

Colour

RAL 9016.

RAL 9005.

RAL 8014.

RAL 1015.

Operation

-

Control

Push button.

Guidance for specification option:

Standard.

Key switch.

Remote controls.

Accessories

Manual hand crank device.

Vision panel

Perforated or punched single skin lathes.

None.

Speed

Maximum opening speed: 0.8 m/s, Closing speed: 0.2 m/s.

Power supply

Single phase 230 V.

Sustainability data

Material

Aluminium

Third party certifications

Third party certifications

Alcumus SafeContractor

Alcumus SafeContractor

Safe Contractor Certificate

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001

Constructionline Gold

Constructionline Gold

Constructionline Gold Certificate

CHAS

CHAS

CHAS Certificate

Literature

Rollashield Armaroll Datasheet

Rollashield Armaroll Datasheet
