Rollashield Isodor Insulated Sectional Door
Verified by manufacturer 5 months ago
Alcumus SafeContractor
Certificate type
ISO 9001 Quality Management
Certificate type
ISO 14001 Environmental Management Systems
Certificate type
Constructionline Gold
Certificate type
CHAS
Certificate type

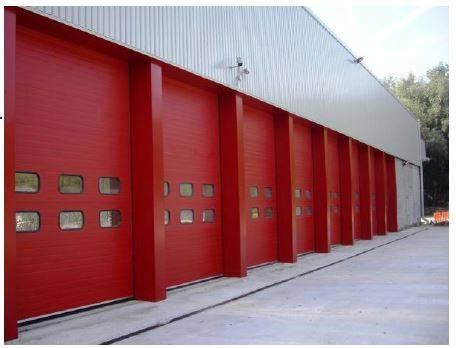

The Rollashield Isodor sectional overhead door range is designed to offer security and exceptional thermal insulation for external applications.
Application
- Food production facilities.
- Distribution.
- Loading bays.
- Warehouse.
- Internal and external openings.
Description
With its interlocking panel design eliminating cold-bridging, and insulative Kingspan Firesafe foam core, the door curtain achieves a through-panel thermal U-value of 0.51 W/m²K, making this door a perfect solution for external opening. Also available with an 80 mm thick panel (achieving a through-panel thermal U-value of 0.24 W/m²K, it is a popular choice for chilled warehouse and distribution centres.
In addition, the Rollashield Isodor is supplied with rubber seals to the bottom, top and both sides of the door, giving a superior seal for both hygiene and temperature control. Achieving an air permeability rating of up to Class 4, these features make this door a popular choice for the food and pharmaceutical industries.
Available with various track configurations and manual or motorized operation, this versatile range is designed to be configured for a wide variety of applications.
Features and benefits:
- Energy efficient design.
- Range of track options to suit roof/ headroom.
- Superior hygienic seal.
- Reliable operation.
General information
Color | White Yellow Red Blue Beige |
Finish | Galvanized Plastisol |
Material | Steel Guidance for specification option: Curved steel lath running within steel profiled side guides. Plastic Guidance for specification option: Endlocks. EPDM |
Shape | Square Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | L20/615 Sectional overhead doors L20/630 Hatches L20/60 Doors |
Specification data - Sectional overhead doorsets
Grade | External, thermally insulated.Internal. |
Arrangement | |
Type | Standard lift.High lift.Vertical lift. |
Door panels | |
Type | Insulated sandwich panel, constructed with hot dip zinc-coated steel outer skin and insulated with high density CFC-free foam core. |
Finish | Galvanized.Guidance for specification option: Standard. Polyester.Guidance for specification option: Optional. Plastisol-coated.Guidance for specification option: Optional. |
Colour | Sunflower Yellow.Flame Red.Sapphire Blue.Khaki Green.Olive Green.Leaf Green.Van Dyke Brown.Goosewing Grey.Merlin Grey.Cornflower Blue.Azure Blue.Juniper Green.Signal White.Anthracite.Sunset RedGuidance for specification option: Optional Gentian BlueGuidance for specification option: Optional Fir GreenGuidance for specification option: Optional IvoryGuidance for specification option: Optional Bone WhiteGuidance for specification option: Optional Grey AluminiumGuidance for specification option: Optional SilverGuidance for specification option: Optional WhiteGuidance for specification option: Optional BlackGuidance for specification option: Optional Manufacturer guidanceSelection for front face only. Standard on all backs of panels are White RAL 9010. |
Operation | |
Activation | Manual hand-chain.Guidance for specification option: Standard. Manual push up (spring assist).Guidance for specification option: Optional. Motor Operation. |
Standard | To BS EN 13241-1: 2003 + A1: 2001; BS EN 12604; BS EN 12453, BS EN12424, BS EN 12425, BS EN 12426. |
Power supply | 415 V, three phase. |
Emergency release | Manual hand-chain. |
Safety | Spring break device, Cable break device. Guidance for specification option: Standard. Bottom optical safety edge. Guidance for specification option: Optional. Safety Photocell. Guidance for specification option: Optional. |

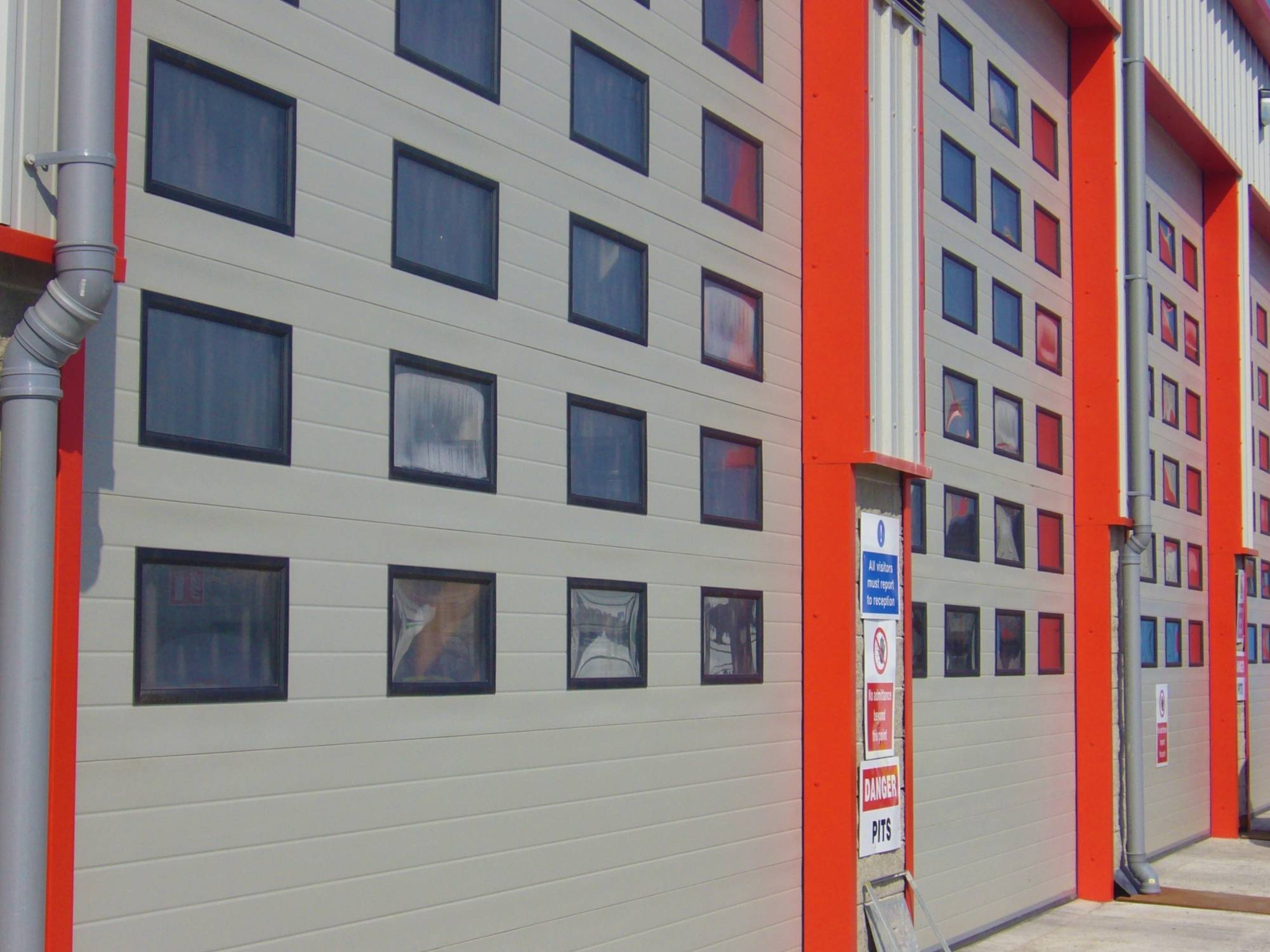

Vision panels | Rectangular rounded. Guidance for specification option: Standard. Rectangular. Guidance for specification option: Optional. Panoramic style door. Guidance for specification option: Optional. |
Resistance to water penetration | Class 3. |
Opening sizes | Manufacturer guidanceSize (W x H): 8000 x 8000 mm (maximum). Larger sizes available on request, consult manufacturer and insert requirement. |
Resistance to wind load | Class 3. |
Acoustic performance | 25 dB. Guidance for specification option: Weighted sound reduction. |
Air permeability | Class 2. Class 3. Guidance for specification option: For CR doors. Class 4. |
Thickness | 40 mm. 80 mm. |
Sustainability data
Material | Steel Guidance for specification option: Curved steel lath running within steel profiled side guides. Plastic Guidance for specification option: Endlocks. EPDM |
Third party certifications
Third party certifications
Alcumus SafeContractor
Safe Contractor Certificate
ISO 9001 Quality Management
ISO 9001
ISO 14001 Environmental Management Systems
ISO 14001
Constructionline Gold
Constructionline Gold Certificate
CHAS
CHAS Certificate
Literature
Rollashield Isodor Datasheet
Rollashield Isodor Threshold Detail
