Roller Blind - Chain Operated - Heavy Duty - Silent Gliss SG 4940 - Chain Operated Roller Blind

Name: Roller Blind - Chain Operated - Heavy Duty - Silent Gliss SG 4940 - Chain Operated Roller Blind
Brand: Silent Gliss Ltd
SKU: dTFtuR6kVSCgYsAH8iV796

Verified by manufacturer 3 days ago

Silent Gliss Ltd

Chain operated roller blind for medium to large applications. Recomended for large blinds with long drops. Suitable for commercial and residential interiors.

Jump to:

+44 (0)1843 863571 Website

Application

Roller blind has varied fixing possibilities to wall, ceiling or recess are available.Roller blind suitable for use in a commercial and residential applications, including:

Internal window shading.
Can be ceiling, wall or recess fixed to a variety of surfaces.
Can be recess mounted inside a reveal.
Can be recess mounted inside a headbox.
Can be wall fixed with a fascia box.

Description

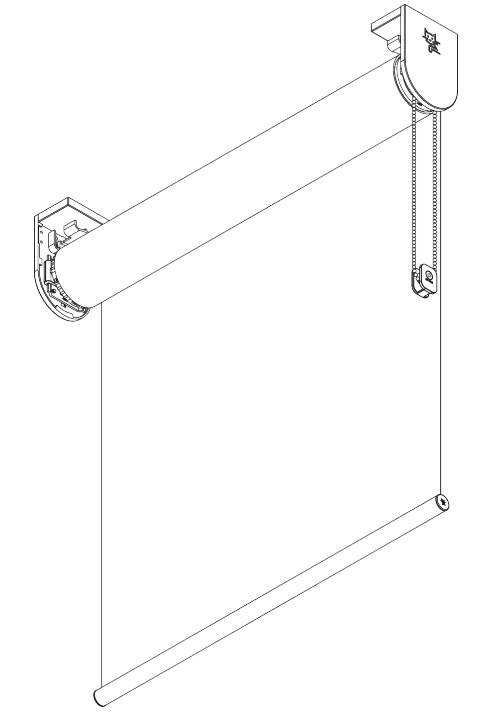

Chain operated roller blind, available in a range of colours and fabric options.

Features and benefits:

Superior gear mechanism for effortless operation, even at large sizes.
Precision engineering makes this system ideal for large windows up to 4 m width and 6 m drop.
Hardware available in black, white, and grey.
Choose from a wide range of flame retardant fabrics, including screens.
Wall, ceiling, or recess fitting.
Optional recess and fascia box
Stainless steel brackets, adjustable for vertical alignment.
Stainless steel bead chain.
Standards: ISO 9001, ISO 14001 and EN 13120.

General information

Color	Black White Other Grey
Finish	Powder-coated
Material	Stainless steel Fabric Aluminium
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	Five year

Uniclass	Pr_30_59_07_72 Roller blindsPrimary
CAWS	N10/70 Blinds N10/240 Blinds

SKU Code	SG 4940

Specification data - Roller blinds

Classification data
Standards	To BS EN 13120.
Position	Ceiling/ top fixed. Wall/ face fixed. Recess fixed.
Dimensions (minimum width x depth)	- Manufacturer guidance Maximum width: 4000 mm. Minimum width: 500 mm. Maximum depth: 6000 mm. Maximum area: 15 m². Recommended width to height ratio is maximum 1:3; consult manufacturer for more details and insert requirements.
Headrail	-
Material	Stainless steel.
Colour	White. Guidance for specification option: RAL 9016. Grey. Guidance for specification option: RAL 7035. Black. Guidance for specification option: RAL 9005. Other. Guidance for specification option: Special colours possible; consult manufacturer for more details and insert requirements.
Blinds	-
Material	Guidance for specification option: Consult manufacturer for more details and insert requirements.
Finish	Guidance for specification option: Consult manufacturer for more details and insert requirements.
Colour	Guidance for specification option: Consult manufacturer for more details and insert requirements.
Pattern	Guidance for specification option: Consult manufacturer for more details and insert requirements.
Tube	-
Material	Manufacturer's standard.
Diameter	80 mm.
Operation	Manual, stainless steel ball chain.
Accessories	Not required. Side guides. Guidance for specification option: Additional parts: 2 x SG 3036 bracket 47 mm. 2 x SG 4944 side guide end cover. 2 x SG 4946 side guide wire rope fastener. 2 x SG 4947 side guide wire rope fastener. 2 x SG 4948 side guide wire ø 1.5 mm. Adjustable end stop. Other. Guidance for specification option: Manufacturer offers a wide range of accessory components; consult manufacturer's literature for more details and insert requirements.
Maximum weight	12.5 kg.
Bottom bar	SG 10760 bottom bar round. SG 10770 bottom bar square. SG 4903 bottom bar.
Bottom bar	White. Guidance for specification option: RAL 9016. Grey. Guidance for specification option: RAL 7035. Black. Guidance for specification option: RAL 9005. Other. Guidance for specification option: Special colours possible; consult manufacturer for more details and insert requirements.
Fixing type	SG 4984 end cover. SG 4986 end cover. SG 4988 bracket. SG 4906 plate (set SG 4949). SG 6951 pan head screw coated M6 x 70 mm.
Orientation	Fabric roll-off window side. Guidance for specification option: Standard. Fabric roll-off room side.

Sustainability data

Contains Red List materials	No
Country of product manufacture	United Kingdom
Material	Stainless steel Fabric Aluminium
Recycled content As defined in clause 7.8 of BS EN ISO 14021	25 %
