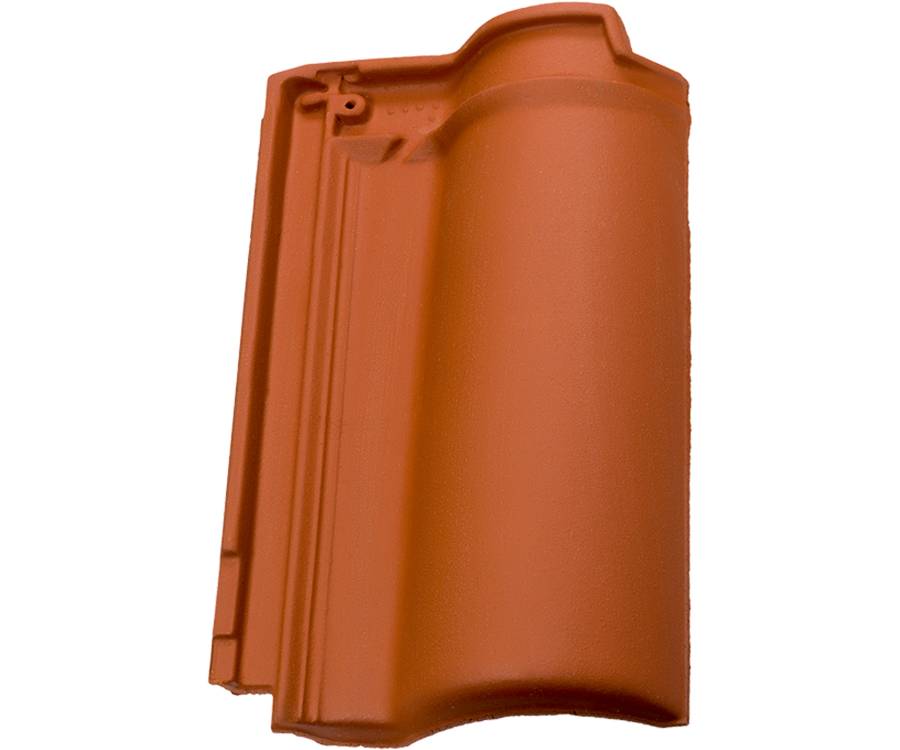

Roman Roof Tile

Name: Roman Roof Tile
Brand: British Ceramics
SKU: ssJPXXQxRHgb3jPiFSsgWp

Verified by manufacturer 2 months ago

British Ceramics

Third party certifications:

EPD
Certificate type

Clay roof tile.

Jump to:

01322380200 Website

Application

Suitable for roofs.

Description

Clay roof tile, offering colour longevity, strength, and durability. The Roman-type roof tile, thanks to its very close resemblance to the Byzantine tile, is particularly suitable for more traditional constructions.

Features and benefits:

Traditional tile.
Available glazed and in a range of colours.
13 tiles/m² coverage.
350–355 mm batten spacing.
>20 hours water permeability.
150 cycles frost resistance.
Recommended roof slope using covering (e.g. membrane): 30% (17˚).

General information

Color	Red Orange Brown Cream Blue Green Grey Black Show more
Finish	Smooth
Material	Clay
Shape	Rectangle
Length	400 mm
Width	250 mm
Warranty description	50 year

Uniclass	Pr_25_93_72_12 Clay interlocking tilesPrimary
CAWS	H65/5 Roof tiling H65/105 Clay roof tiling

Specification data - Clay interlocking tiles

Standard	To BS EN 1304.
Tile type	Tile with headlock and sidelock.
Mechanical and physical properties	-
Impermeability	To EN 539-1, Pass.
Flexural strength	To EN 538, >1200 N.
Frost resistance	To EN 539-2, 150 cycles.
Fire performance	-
Reaction to fire	A1.
Environmental performance requirements	-
Environmental rating	Carbon footprint 237 CO₂ per kg. Guidance for specification option: Consult manufacturer's EPD for details.
Dimensions and dimensional tolerances	To EN 1024, ±2%.
Head lock	Required.
Colour	Glazed. Red. Brown. Ochre. Blue. Green. Grey. Black.
Surface finish	Smooth.
Size	400 x 250 mm. Guidance for specification option: Useful length: 355 mm. Useful width: 215 mm.

Weight	3.2 kg. Guidance for specification option: Weight/m²: 41.6 kg/m².
Overlap	Lateral overlap: 35 mm. Head overlap: 45 mm.
Spacing	350–355 mm. Manufacturer guidance Batten spacing/ distance.

Sustainability data

Country of material origin	Greece
Country of product manufacture	Greece
Material	Clay
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	237 kg CO₂ eq/kg
Recyclability	70% recycling and re-use

Third party certifications

Environmental Product Declaration (EPD) - Roof Tiles

Third party certifications

EPD

Environmental Product Declaration (EPD) - Roof Tiles

Literature

British Ceramics - Brochure

Warranty

Roman Roof Tile - Data Sheet
