Roof Drains

Verified by manufacturer over a year ago

Integradrain Outlet

Mapei (UK) Ltd Variant:

Roof drainage outlets.

Jump to:
BOS
+44 (0)121 508 6970 Website

Application

A range of roof drainage outlets for flat roof applications.

Description

A range of roof drainage outlets for flat roof applications.

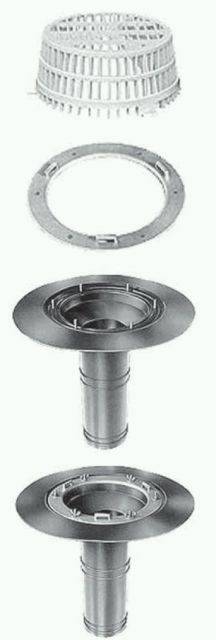

Integradrain:

Anti-backup roof outlets constructed from IGOM CE thermoplastic rubber, specially designed to obtain a high quality product with excellent physical and technical properties. Integradrain outlets can be used for most types of roofing and are compatible with all kinds of bituminous membranes. They have high resistance to ultra violet rays, ozone and other atmospheric and chemical agents. The outlets can be used within a wide range of temperatures and remain very flexible at low temperatures.


SUREFIX Roof Drain:

The SUREFIX Roof Drain is amongst the best means of connecting a roof system to an outlet drain and is suitable for use on all flat roof applications for either commercial or residential buildings. The fastening and seal between the roof system is achieved mechanically, forming a secure fix between roof system and drain. The unit is constructed from Dutral rubber which has excellent physical and chemical characteristics with superior resistance to breakdown by sunlight, ozone and other atmospheric agents. The unit consists of a flexible of a flexible circular flange with six stainless steel lugs. The unit incorporates a 30 mm deep, 170 mm diameter sump to ensure that even storm water will flow quickly into the drain.

General information

Uniclass

Pr_65_50_35_37 Gravity rainwater outletsPrimary

CAWS

R10/26 Proprietary rainwater outlets

R10/365 Proprietary rainwater outlets

Specification data - Gravity rainwater outlets

Product Reference

Integradrain Outlet

SUREFIX Roof Drain

OutletDiameter

54 mm.

66 mm.

73 mm.

92 mm.

Length

250 mm.

Accessories

None.

Gravel grate.

Leaf guard.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
