ROOFPORT® MRO - Metal Roof Outlet
Verified by manufacturer 14 days ago
Constructionline
Certificate type
ISO 9001 Quality Management
Certificate type
Acclaim Accreditation
Certificate type
Stainless steel roof outlet with a factory sealed lead flange to seal a lead roof.
Application
Can be used for internal outlets within lead roofs and gutters, providing a firm spigot to which a watertight connection can easily be made.
Description

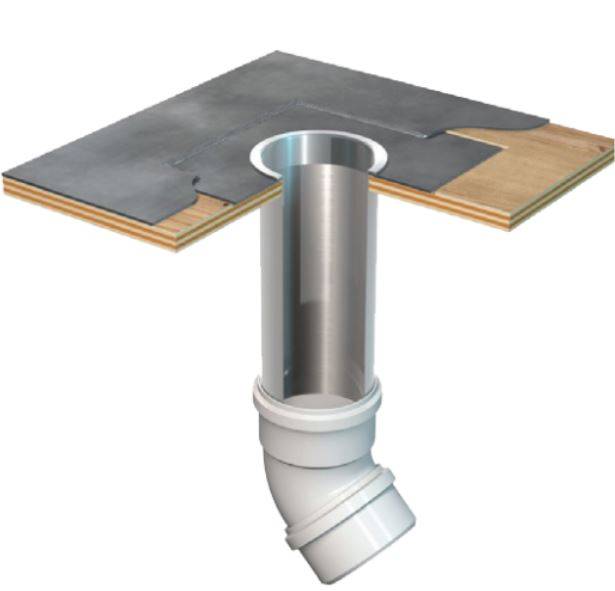

110mm diameter stainless steel roof outlet with a factory attached lead flange piece.
The outlet can be connected to the discharge pipework beneath the outlet via a standard 110 mm push fit sealing socket or timesaver clamp. This ensures that the discharge pipework has a definite seal to the lead roof – particularly important for internally draining areas of roof.
General information
Color | Silver |
Material | Stainless steel Guidance for specification option: Pipe section. Lead Guidance for specification option: Flange. |
Shape | Other |
Length | 240 mm |
Width | 110 mm Guidance for specification option: Diameter. |
Warranty description | Ten year Guidance for specification option: See warranty statement for details. |
Uniclass | |
CAWS | R10/26 Proprietary rainwater outlets R10/365 Proprietary rainwater outlets |
Specification data - Gravity rainwater outlets
Roof construction | |
Form | Lead roof with plywood substrate. |
Material | Stainless steel. |
Spigots | 110 mm diameter stainless steel spigot. |
Integral accessories | 240 x 240 mm lead flange.Guidance for specification option: Code 5 lead. |
Weight | 2 kg. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Stainless steel Guidance for specification option: Pipe section. Lead Guidance for specification option: Flange. |
Recyclability | Yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 60 % |
Expected Life | 30 year |
Third party certifications
Constructionline
Constructionline Silver Membership
ISO 9001 Quality Management
Citation
Acclaim Accreditation
Certificate of Health & Safety Accreditation
Literature
ROOFPORT® MRO - Tech Data Sheet
Case studies
ROOFPORT - Green solar roof
