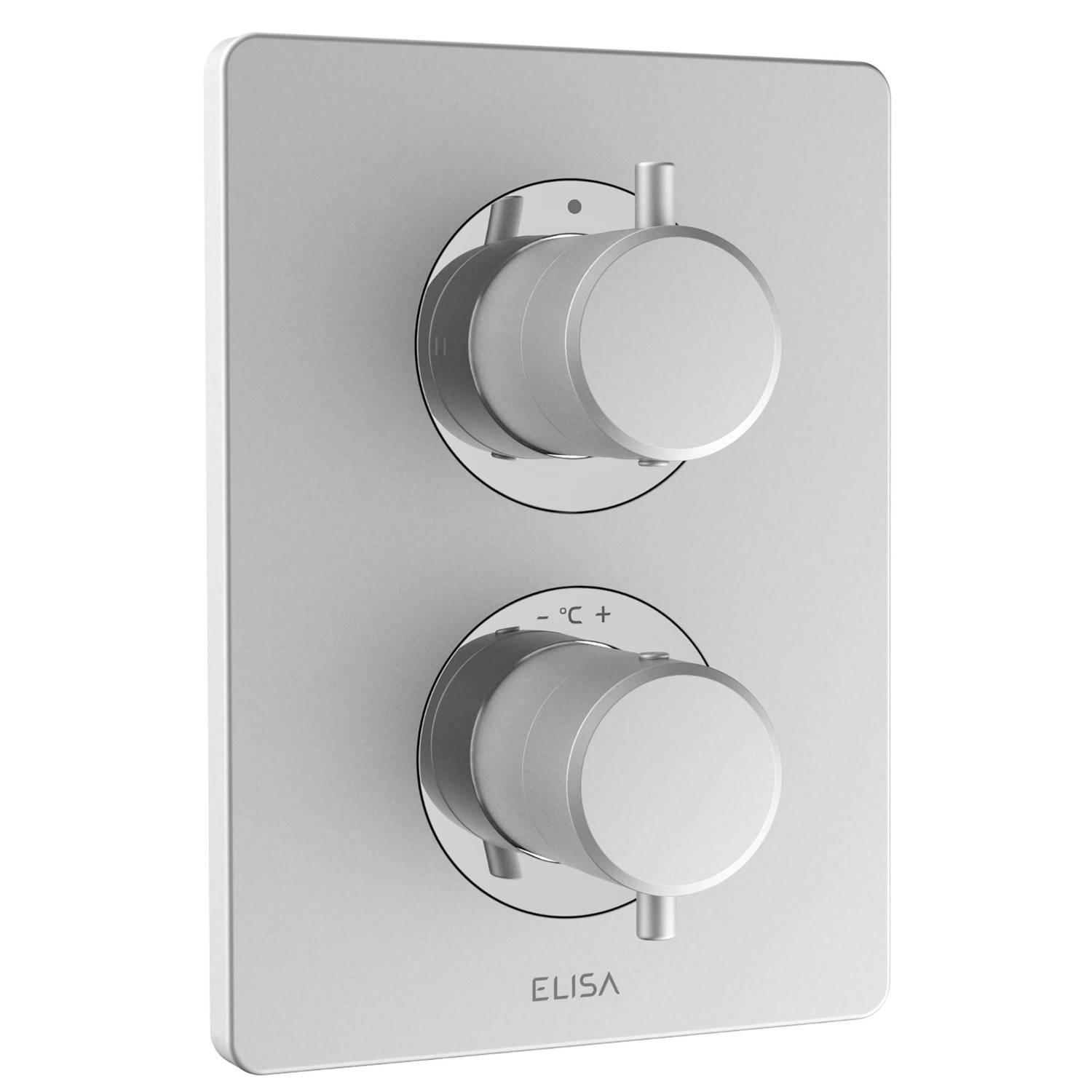

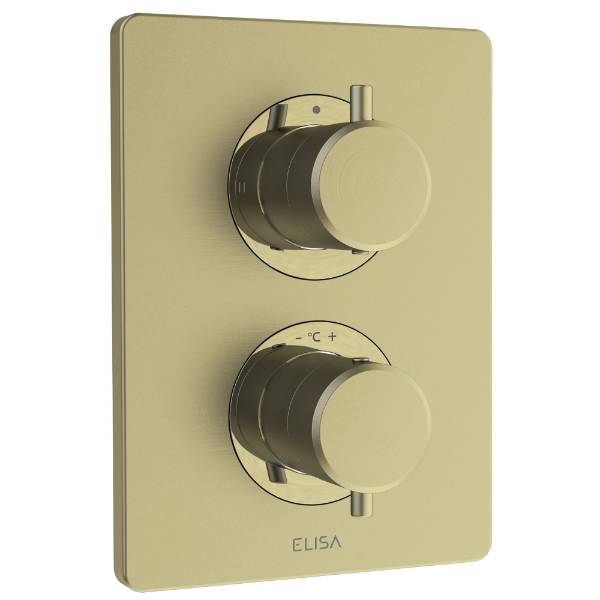

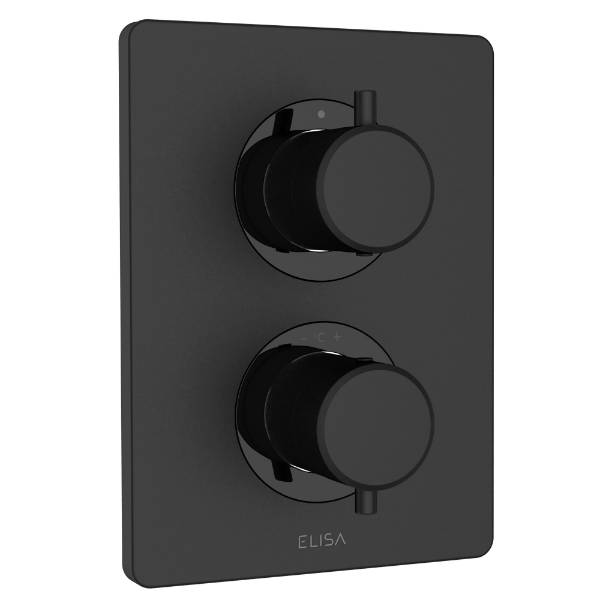

Rosa Dual Control Triple Outlet Concealed Mixer

Verified by manufacturer 10 months ago

DC003BB

Elisa™ Variant:

Dual control face plate for triple outlet shower-compatible with Elisa's Aquahub Universal Concealed Installation Box.

Jump to:
+44 (0)1959 560003 Website

Application

  • Suitable for use with Elisa's Aquahub Universal Concealed Installation Box.
  • For triple outlet system.
  • Compatible with high pressure and combi water systems.

Description

Dual control dials, which are set on a metal facia in a brushed brass, satin chrome or matt black finish, separately operate the flow, thermostatic temperature adjustment and divert for a triple outlet system, functioning from a handset, fixed drencher head and bathfill.


As a second fix, convenient for new or refurbishment projects, the dial and wallplate assembly simply fits onto the in-situ Aquahub box and can be matched with a range of handsets, fixed heads, adjustable rails and wall mounted holders to create the sought-after subtle and minimalist look for modern bathrooms and shower areas. Designed as a flexible, modular system, based on the Aquahub’s universal connections, the front-accessed controls and wall facia can be easily renewed with other models and fittings available from the Rosa and Emilie ranges.


Features and benefits:

  • Thermostatically controlled for safety assurance.
  • Contemporary dial shower is available in single, dual and triple outlet.
  • Colour choices include chrome, brushed brass and matt black.
  • Options to mix and match kits as the shower and kit are all sold modularly for maximum choice and flexibility.
  • Can be installed as first and second fix to cohere with renovation timelines.
  • Once the Aquahub is installed there is no invasive work needed to change the design/update the look of the faceplate.
  • Temperature override button.
  • Full metal faceplate.

General information

Color

Black

Silver

Guidance for specification option:

Chrome.

Other

Guidance for specification option:

Brass.

Finish

Matt

Satin

Brushed

Material

Brass

Zinc

Plastic

Shape

Other

Length

210 mm

Width

150 mm

Height

13 mm

Warranty description

15 year

Uniclass

Pr_40_20_87_81 Shower thermostatic water supply setsPrimary

CAWS

N13/42 Shower mixer valves

N13/40 Shower units

N13/375 Shower units

Specification data - Shower thermostatic water supply sets

Form

Dual control face plate for triple outlet shower.

Guidance for specification option:

Compatible with Elisa's Aquahub Universal Concealed Installation Box.

Materials

-

Body

Brass, zinc and plastic.

Finish and colour

Brushed brass.

Integral accessories

Guidance for specification option:

Consult manufacturer and insert requirements.

Width

150 mm.

Depth

13 mm.

Height

210 mm.

Control

Dial.

Weight

2.321 kg.

Outlets

Triple outlet system.

Sustainability data

Contains Red List materials

No

Country of product manufacture

China
