Application

  • For new build or refurbishment, ideal solution when no provision has been made for cavity venting or weeps or an insufficient number have been installed.
  • As a plastic component this item is not suitable for use within the external walls of high-rise buildings requiring non-combustible materials.

Description

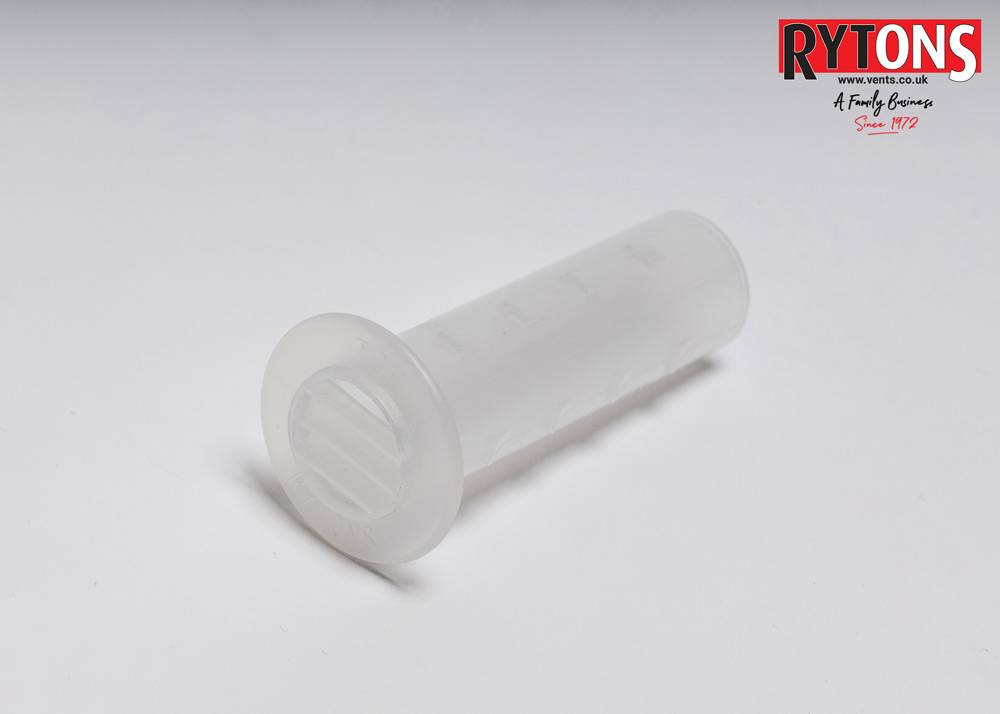

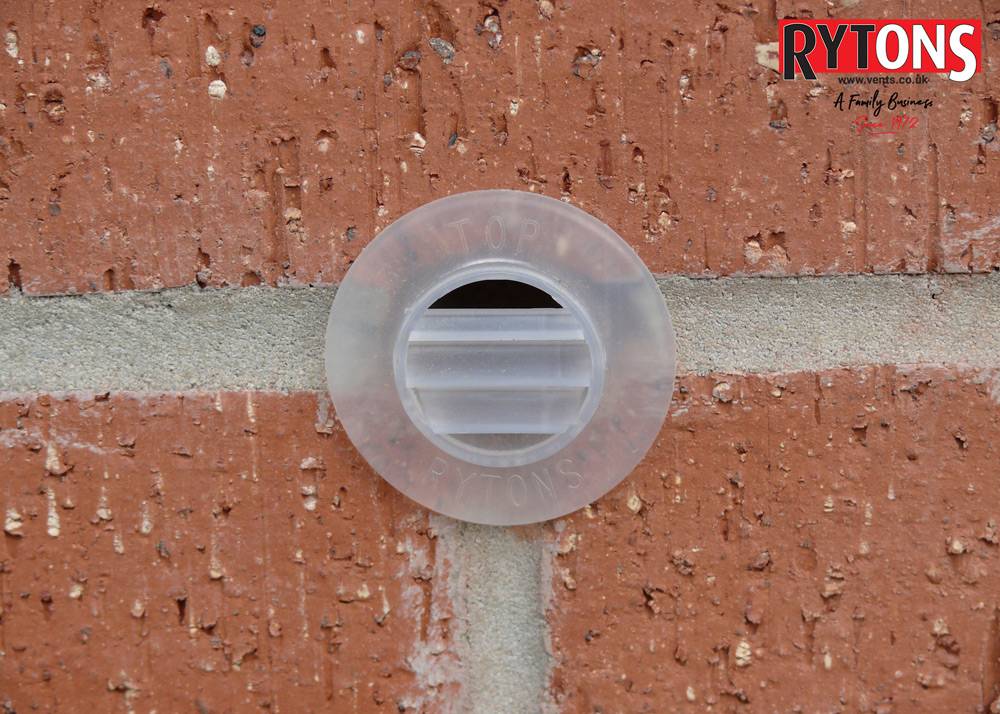

Plastic, retro-fitted cavity ventilator and weep hole duct.


Features and benefits:

  • Easily retro-fitted through a 25 mm diameter drilled hole.
  • External fins provide a lock-tight fit.
  • Front louvres protect against rain and large insects.
  • Flange aids positioning, helps prevent seepage and covers drilling for a neat finish.
  • Clear colour blends with any facing brick or render to maintain the aesthetic appearance.
  • For use in timber frame and traditional build.
  • Made in Britain.

General information

Color

Clear

Finish

Smooth

Material

Plastic

Guidance for specification option:

Polypropylene.

Shape

Circle

Length

80 mm

Width

26 mm

Guidance for specification option:

Excluding flange

Height

26 mm

Guidance for specification option:

Excluding flange

Uniclass

Pr_35_90_50_62 Perpend joint plastics weepholesPrimary

CAWS

F30/132 Perpend joint plastics weep holes

F30/8 Perpend joint plastics weep holes

Product range

Rytons Cavity Weeps and Ventilators

Specification data - Perpend joint plastics weepholes

Colour

Clear.

Free area

250 mm².

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Plastic

Guidance for specification option:

Polypropylene.

Recyclability

Recyclable
