Russell Cheviot Roof Tile

Name: Russell Cheviot Roof Tile
Brand: Russell Roof Tiles
SKU: iVWqoFg2frCPxaGPwBrJqD

Verified by manufacturer 26 days ago

75 mm Headlap

Third party certifications:

Interlocking concrete roof tile with a trapezoid shaped roll to provide an attractive undulating surface.

Jump to:

Application

Suitable for used across residential, commercial and public buildings with a roof pitch between 22.5° and 60° depending on the headlap specified.

Interlocking concrete roof tile with a trapezoid shaped roll to provide an attractive undulating surface.

Features and benefits:

Manufactured in accordance with BS EN 490 and BS EN 491.
Approvals: non-combustible when tested to BS 476: Part 3, 2004 (spread of flame and fire prevention).
Approvals: SAA classification.

Uniclass	Pr_25_93_72_17 Concrete interlocking tilesPrimary
CAWS	H65/115 Concrete roof tiling H65/5 Roof tiling

Standard	To BS EN 490.
Tile type	Interlocking tile.
Fire performance	-
Reaction to fire	Non-combustible when tested to BS 476: Part 3:1975. Guidance for specification option: SAA Classification.
Profile	Standard profile.
Head lock	Required.

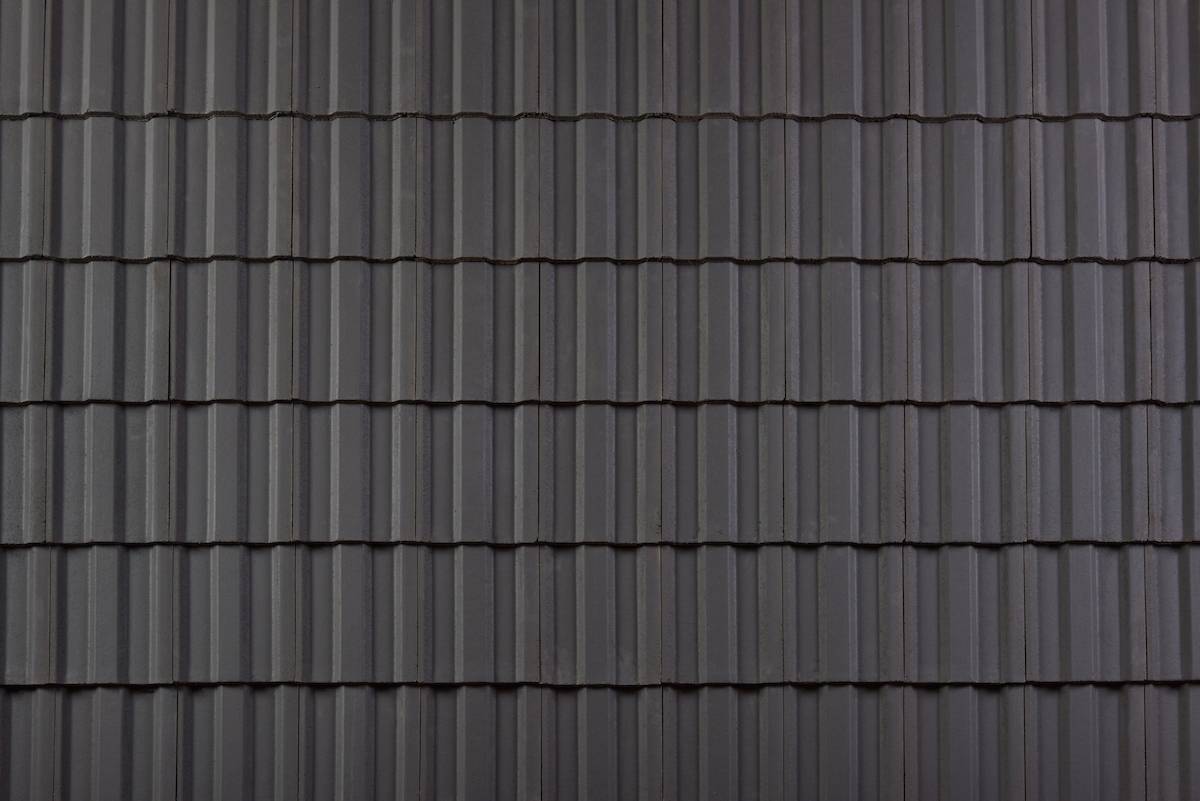

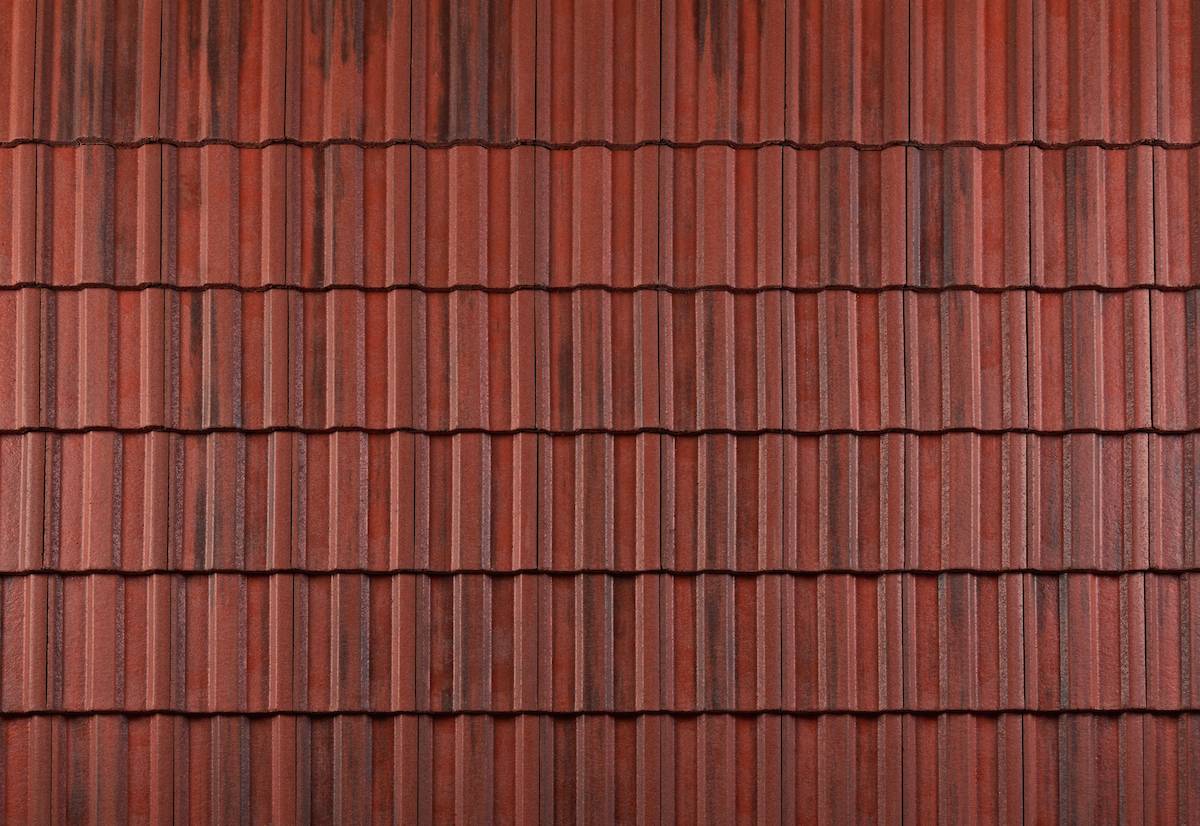

Colour	Anthracite. Cottage red. Peat brown. Slate grey. Terracotta.
Surface finish	Smooth.
Size	418 x 330 mm.

Head-lap	75 mm. Guidance for specification option: Minimum.
Batten size	50 x 25 mm.
Gauge	343 mm. Manufacturer guidance Maximum.
Weight	45 kg/m².
Pitch	Maximum: 60°. Minimum 25°.
Roof covering	9.8 tiles per m².
Accessories	Guidance for specification option: A range of complementary ridge, verge, hip tiles and valleys with corresponding fixing products used in conjunction with dry fix ridge, hip and verge systems along with roof ventilation products are available; consult manufacturer for details.
Fixing	40 x 3.35 mm aluminium alloy nails. Guidance for specification option: Smooth or ring shank dependent on fixing specification.
Thickness	23 mm.
