Salamandre distribution trunking - Cable Trunking
Verified by manufacturer 2 days ago
IP30
IP30

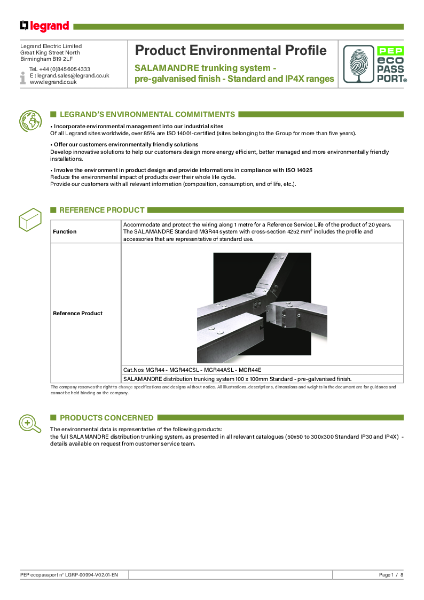

EPD
Certificate type
A distribution trunking range.
Application
Suitable for commercial applications.
Description

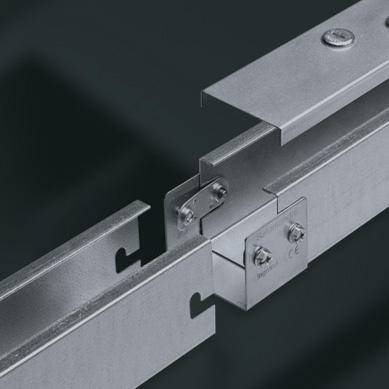

Salamandre distribution trunking has a pre-fitted coupling system, integrated shake-proof screws and a clip-on lid. Standard, IP4X, IP55 and lighting trunking ranges are available.
Features and benefits:
- Clip-on lid.
- Pre-fitted couplers.
- Multi-head screws.
- Convenient slotted ends.
- Safety edge for easier handling.
General information
Color | Silver White |
Finish | Galvanized Powder-coated |
Material | Steel |
Shape | Rectangle Square |
Length | 2000 mm 3000 mm 4000 mm 5000 mm 6000 mm |
Width | 50 mm 75 mm 100 mm 150 mm 225 mm |
Height | 50 mm 75 mm 100 mm 150 mm 225 mm |
Uniclass | |
CAWS | V90/350 Cable trunking and cable ducting for wall and ceiling mounting V90/350 Cable trunking and cable ducting for wall and ceiling mounting |
SKU Code | MGR MGIP LT |
Specification data - Wall and ceiling-mounted cable trunking and ducting
Classification data | |
Standards | To BS EN 50085-1 and BS EN 50085-2-1. |
Installation position | Surface-mounted on the ceiling. Surface-mounted on the wall. |
Format | 2. |
Resistance to impact | 2 J. |
Temperature properties | |
Storage and transport temperature (minimum) | -25°C. |
Installation and application temperature (minimum) | -15°C. |
Application temperature (maximum) | +60°C. |
Resistance to flame propagation | Non-flame-propagating. |
Electrical properties | With electrical continuity characteristics. Without electrical insulating characteristics. |
Protection by enclosure | |
Protection against ingress of solid objects (minimum) | To BS EN 60529, IP30. |
Access method | With tools. |
Sizes | 50 x 50 mm. 75 x 50 mm. 75 x 75 mm. 100 x 50 mm. 100 x 75 mm. 100 x 100 mm. 150 x 50 mm. 150 x 75 mm. 150 x 100 mm. 150 x 150 mm. 225 x 75 mm. 225 x 100 mm. 225 x 150 mm. 225 x 225 mm. 300 x 75 mm. 300 x 100 mm. 300 x 150 mm. 300 x 300 mm. |
Compartments | One. Two. Three. |
Accessories and fittings | |
Types | Top lid 90° bends – gussett. Top lid 90° bends – square. Inside lid 90° bends – gussett. Inside lid 90° bends – square. Outside lid 90° bends – gussett. Outside lid 90° bends – square. Top lid 45° bends. Inside lid 45° bends. Outside lid 45° bends. Top lid tees – gusset. Top lid tees – square. Inside lid tees – gusset. Outside lid tees – gusset. Offset tees. Crossovers. Offset crossovers. Reducers. Bellmouths. Change faces – left hand. Change faces – right hand. Pin racks. End caps. Flanges. Fitting to fitting adaptors. Trunking couplers. Cable retainers. Earth link. Stirrup hangers. Overhead hanger. Loose partitions – 3 m. PVC edging strip. Socket plates. Manufacturer guidanceConsult the 'Salamandre distribution trunking - Product technical guide' for details. |
Lid | Diecast turnbuckle fixings. Screwfix (M5 x 9 mm) fixings. Tamperproof screwfix (M5 x 8 TORX) fixings. |
Colour/ Finish | Pre-galvanized steel. Guidance for specification option: BS EN 10327 grade DX51D. Powder-coated RAL 9003. |
