Sanpress Inox G

Verified by manufacturer 1 day ago

VIEGA LTD Third party certifications:
  • EPD

    EPD

    Certificate type

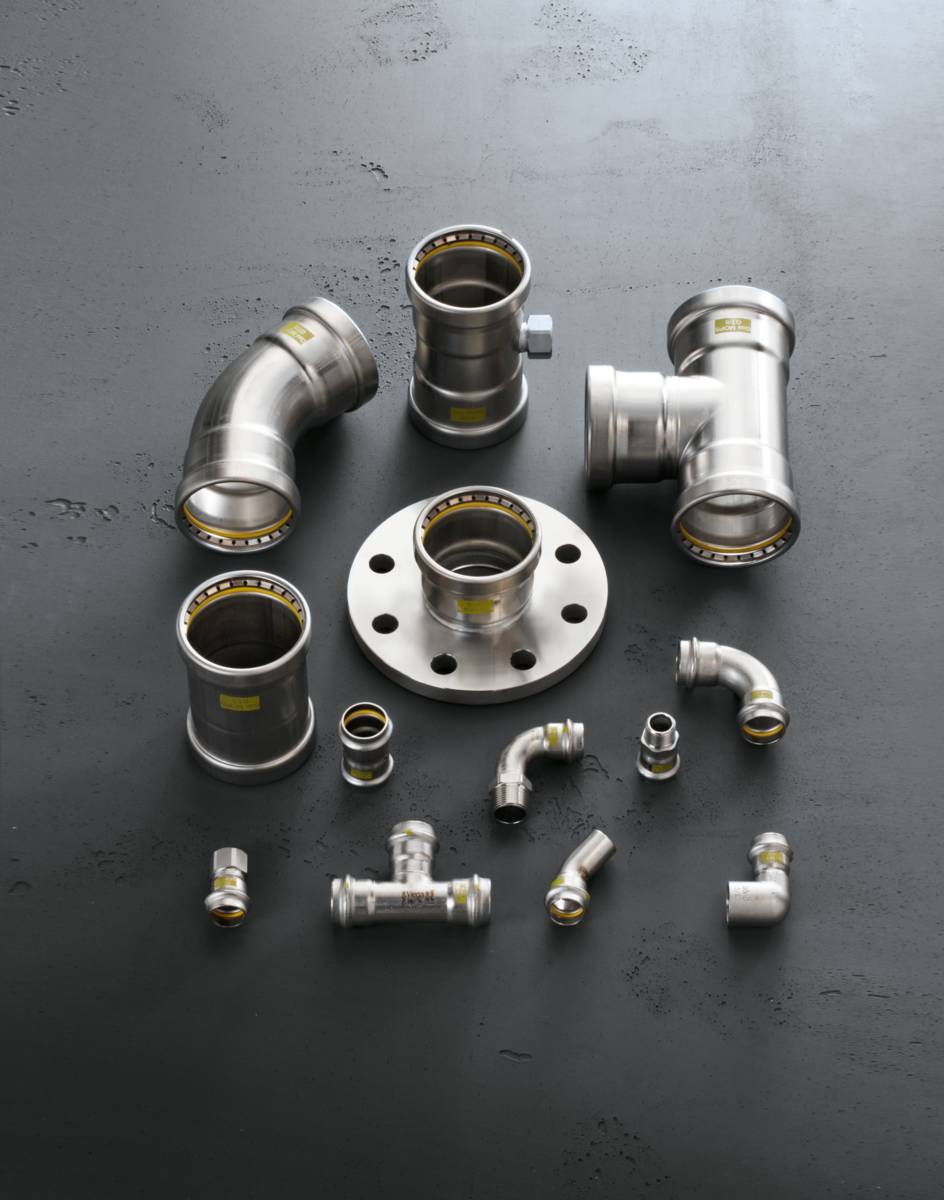

Stainless steel press connector system for natural gas/ liquid gas, heating oil and diesel fuel pipes.

Jump to:
+44 (0)204 582 6495 Website

Application

  • Suitable for concealed and pre-​wall installations of riser pipes and floor installations.
  • Suitable for natural gas/ liquid gas, heating oil, diesel fuel.

Description

Flow-​optimized press connector system with press connectors and pipes made of stainless steel 1.4401. Press connectors for protecting the sealing element equipped with cylindrical pipe guide. Press connectors from d64.0 with stainless steel cutting ring to ensure the mechanical strength of the connection. For protection pipes are equipped with pipe plugs. The pressing force is located before and behind the sealing element seat.

Marking:

Manufacturer, pipe dimension, batch, yellow dot on press end, yellow rectangle with inscription »Gas MOP 5 / GT5« for Sanpress Inox G connectors, yellow rectangle with inscription »Gas MOP 5 / GT1« for Profipress G connectors made of gunmetal, yellow pipe plug, detachable orange label as press indicator from d64.0.


Press connector with SC‑Contur:

Inadvertently unpressed connections are noticed immediately during a leakage test. Viega guarantees the detection of unpressed connections in the following pressure ranges with compressed air or inert gases:

  • Minimum air pressure: 22 hPa / 22 mbar / 0.3 PSI.
  • Maximum air pressure: 0.3 MPa / 3 bar / 43.5 PSI.


Sealing elements:

HNBR (hydrogenated acrylonitrile butadiene rubber), yellow, pre-​assembled.

Tools:

The functional safety of Viega press connector systems depends primarily on the faultless condition of the press tools used. For the manufacture of press connections, Viega recommends the use of Viega press tools. Viega press tools have to be regularly maintained by authorized service partners.


Standards and approvals:

  • Press connector system with press connectors and pipes in accordance with DIN EN 10088, DVGW Worksheet GW 541.
  • Press connector approval for stainless steel in accordance with DG-8531BR0333.
  • Press connector approval for gunmetal in accordance with DG-8531BP0069.
  • Gases in accordance with DVGW G 260 in gas installations in accordance with DVGW-​TRGI 2018 (DVGW Worksheet G 600) / DVFG-​TRF 2012.
  • Liquid gases in the gas phase for domestic and commercial applications, tested in accordance with DVGW Worksheet G 5614.
  • Pipelines for heating oil in accordance with DIN 51603 and pipelines for diesel fuel as suction and pressure pipelines in accordance with DIN EN 590 in consideration of the General Building Approval Z-38.4‑1.

General information

Color

Silver

Finish

-

Manufacturer guidance

stainless steel

Material

Stainless steel

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Six year

Uniclass

Pr_65_52_63_79 Stainless steel pipe fittingsPrimary

CAWS

S15/425 Stainless steel pipeline

S91/330 Domestic low pressure gas supply pipelines

S92/370 Steel pipelines

Product range

Piping Technology

Specification data - Stainless steel pipe fittings

Standards

-

Press fittings

Manufacturer's standard.

Guidance for specification option:

Press connector fittings and pipe manufactured from stainless steel and silicon bronze to 108mm in accordance with DIN EN 10088. The fittings shall be supplied and manufactured by Viega, equipped with the SC-Contur ‘leak before press’. SC-Contur guarantees the identification of non-pressed connections throughout the entire pressure range from 22 mbar to 3 bar with compressed air or inert gases. The fitting is double pressed; both in front and behind the HNBR sealing element.

Type

-

Manufacturer guidance

Consult literature and insert requirements [part number(s)].

Accessories

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Sizes

15–108 mm.

MaximumOperatingTemperature

Gas and liquid gas installations: -20°C to +70°C (-4°F to +158°F); Heating oil and diesel fuel installations: 40°C / 104°F.

Operating pressure (maximum)

Manufacturer's standard.

Guidance for specification option:

Gas and liquid gas installations: 0.5 MPa/ 5 bar/ 72.5 PSI; at HTB requirements 650°C (1202 °F)/ 30 minutes maximum 0.5 MPa (5 bar; 72.5 PSI).

Heating oil and diesel fuel installations: -0.05 to +0.5 MPa (-0.5 to +5 bar / -7.25 to +72.5 PSI).

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Third party certifications

Third party certifications

EPD

EPD

Viega_Sanpress_EPD

EPD

EPD

Viega_Sanpress_Inox_EPD
