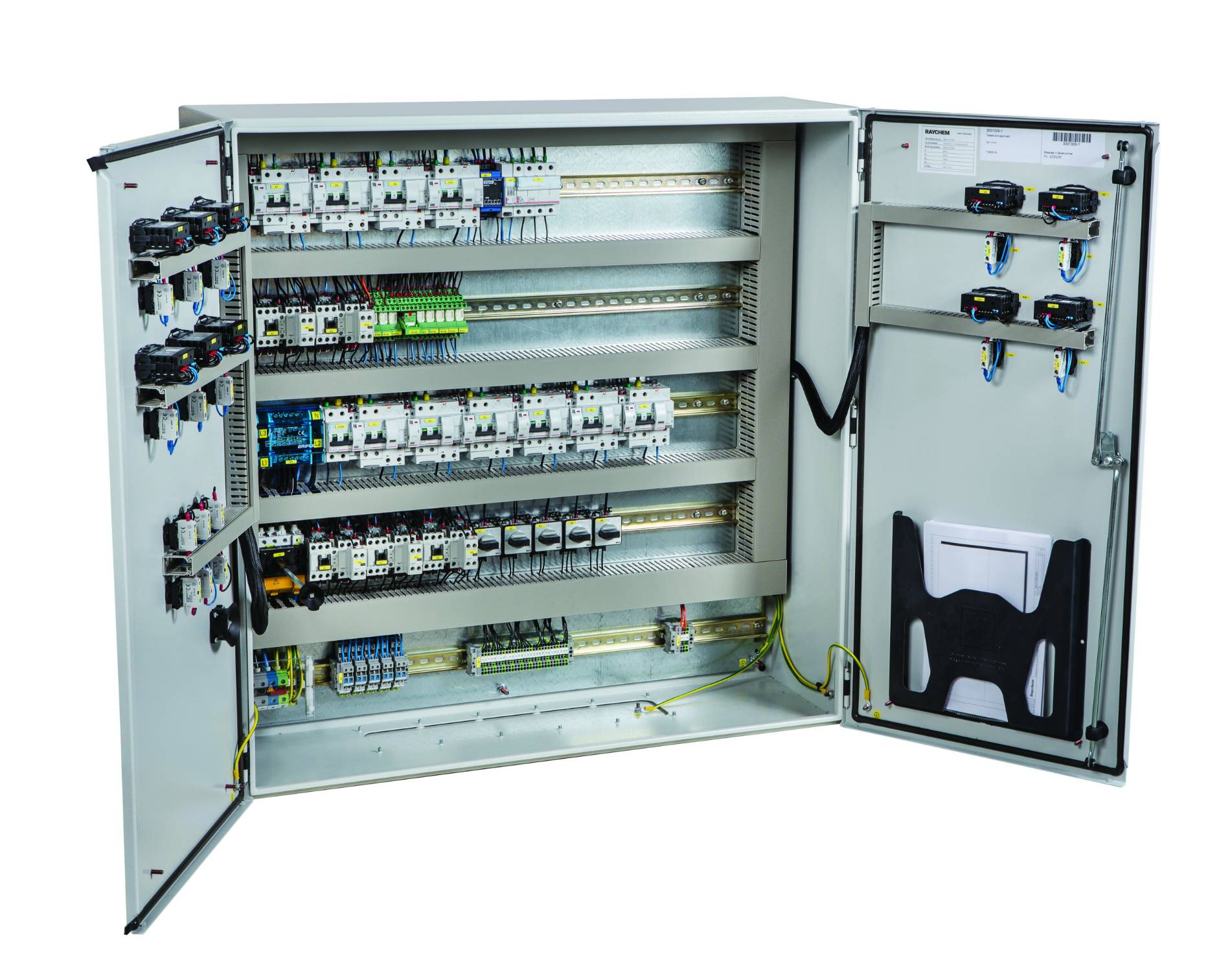

SBS Sprinkler Control Panel

Verified by manufacturer over a year ago

nVent Thermal Management

Multi-circuit, panel mounted, single application controller compliant to EN60204-1/ EN61439-1 and compliant to BS EN 12845.

Jump to:
+44 (0) 7730 503452 Website

Application

For sprinkler control.

Description

Multi circuit, panel mounted, single application controller.


Features and benefits:

  • All sprinkler pipe freeze protection circuits are controlled and monitored by an integrated, multi-circuit, multi-sensor, electrically protected control panel that is EN 60204-1/ EN 61439-1 compliant.
  • RAL 7035 (light grey) coated metal housing (IP54 rated), complete with automatic redundant circuit switching (compliant with BS EN 12845).
  • Individual sprinkler pipe circuit monitoring (ambient and pipe sensing), automatic switching to redundant circuit (in the event of heating circuit failure) with audible alarm, digital display of ambient temperature and sprinkler line temperature per circuit, audible alarms (to indicate loss of power or low voltage to the panel or loss of an electrical phase or redundant circuit activation or RCD/ circuit breaker failure).
  • Manual over-ride switch (to allow system override or testing (main heating circuit on, redundant circuit on/ main heating circuit off, automatic mode controlled via sensor inputs).
  • The control panel shall be RAYCHEM SBS-xx-SNR as manufactured by nVent, available as standard.

General information

Uniclass

Pr_75_50_76_27 Electronic trace heating thermostatsPrimary

CAWS

S90/565 Trace heating tape for pipelines

Specification data - Electronic trace heating thermostats

Application

Sprinkler system.

Type

SBS-02-SNR.

Guidance for specification option:

One sprinkler line control and monitoring with redundant circuit.

SBS-04-SNR.

Guidance for specification option:

Two sprinkler lines control and monitoring with redundant circuits.

SBS-06-SNR.

Guidance for specification option:

Three sprinkler lines control and monitoring with redundant circuits.

SBS-08-SNR.

Guidance for specification option:

Four sprinkler lines control and monitoring with redundant circuits.

SBS-10- SNR.

Guidance for specification option:

Five sprinkler lines control and monitoring with redundant circuits.

Show more

BIM objects

Platform Compatible Version
Revit

Revit 2017
