Schlüter®-BARA-RTK - External edge profile
Verified by manufacturer 6 months ago
A finishing profile for the exposed edges of the floor of balconies and terraces that have an existing sloped screed.
Application
For the exposed edges of the floor of balconies and terraces that have an existing sloped screed.
Description

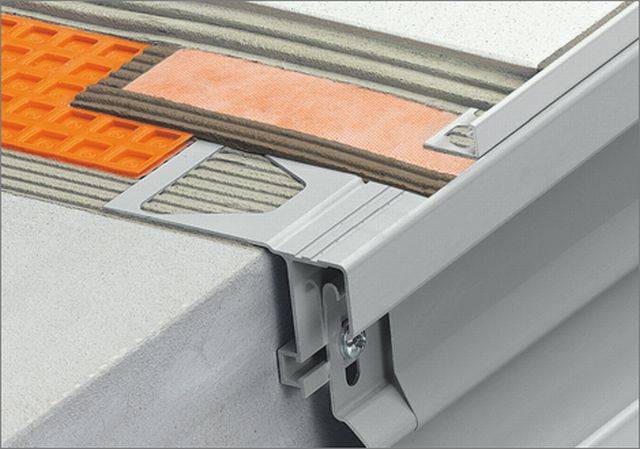

A finishing profile that has a projecting bonding flange for application of protective edge profiles, a drip lip and an integrated T-shaped chamber for attaching the Schlüter-BARIN guttering system. Installation is preferred by Schlüter-Systems trained installers.
Features and benefits:
- Connectors, 90° internal corners, 90° and 135° external corners are available.
- The coating of the aluminium profile is colourfast, weather and UV resistant. Visible surfaces should be protected against abrasion.
- Requires no special maintenance.
- The coated surface of the aluminium profile is colour stable.
- Damaged visible surfaces can be restored with paint.
General information
Color | White Guidance for specification option: Brilliant white. Grey Guidance for specification option: Grey metallic and pastel grey. Beige Guidance for specification option: Light beige. Red Guidance for specification option: Red brown. Brown Guidance for specification option: Black brown. |
Finish | Coated |
Material | Aluminium |
Shape | Other |
Length | 2500 mm |
Width | 110 mm |
Height | 63 mm |
Warranty description | Five year |
Uniclass | |
CAWS | M10/110 Bonded cement:sand levelling screeds M10/115 Cement:sand levelling screeds M10/12 Proprietary polymer modified levelling screeds M10/120 Fine concrete levelling screeds M10/130 Proprietary quick drying levelling screeds M10/140 Proprietary polymer modified levelling screeds M10/150 Proprietary lightweight aggregate levelling screeds M10/160 Proprietary self smoothing levelling screeds M10/17 Proprietary polymer modified wearing screeds M10/180 Concrete wearing screeds (granolithic) M10/185 Proprietary polymer modified wearing screeds M10/4 Cement:sand levelling screeds M10/7 Proprietary quick drying levelling screeds M40/10 Natural stone covering to M40/110 Tiling to M40/115 Natural stone covering to M40/120 Mosaic to M40/5 Tiling to |
Specification data - Floor edge trims
Material | Aluminium. |
Finish | Coated. |
Colour | BW - Brilliant white.GM - Grey metallic.HB - Light beige.PG - Pastel grey.SB - Black brown. |
Width | 110 mm. |
Accessories | Not required. Connectors. 90° internal corner. 90° external corner. 135° external corner. |
Edging size | 110 x 63 mm. |
Edging length (minimum) | 2.5 m. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Recyclability | Manufacturer guidanceProduct can be recycled where local facilities exist. |
