Application

For crack free and functionally safe floating screeds and heated screeds with coverings made of ceramic tiles, natural stone or other materials.

Especially suitable for flowing screeds.

Description

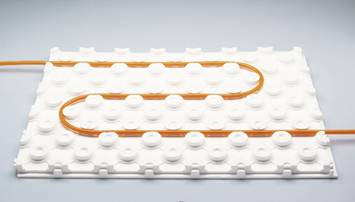

Studded polystyrene screed support panel which is placed over acoustic or thermal insulation, or directly over a loadbearing substrate. The screed is laid over the studded surface of the panel. Installation is preferred by Schlüter-Systems trained installers.


Features and benefits:

  • The studs form a grid pattern, with a distance of 75 mm between studs to accept heating tubes 10 mm to 18 mm in diameter if underfloor heating is to be installed.
  • Designed for the attachment of the Schlüter®-BEKOTEC-THERM-HR heating pipe.

General information

Color

White

Finish

Other

Guidance for specification option:

Studded.

Material

Polystyrene

Guidance for specification option:

Polystyrene EPS 033 DEO (PS 20).

Shape

Rectangle

Length

755 mm

Width

1060 mm

Height

44 mm

Warranty description

Lifetime

Uniclass

Pr_25_57_51_38 High-impact polystyrene (HIPS) studded sheetsPrimary

CAWS

M10/115 Cement:sand levelling screeds

M10/12 Proprietary polymer modified levelling screeds

M10/120 Fine concrete levelling screeds

M10/130 Proprietary quick drying levelling screeds

M10/140 Proprietary polymer modified levelling screeds

M10/150 Proprietary lightweight aggregate levelling screeds

M10/160 Proprietary self smoothing levelling screeds

M10/290 Floating construction

M10/4 Cement:sand levelling screeds

M10/7 Proprietary quick drying levelling screeds

M13/260 Floating construction

Product range

Modular Screed Systems

Specification data - High-impact polystyrene (HIPS) studded sheets

Third-party certification

B2 pursuant to DIN 4102.

Sheet thickness

44 mm.

Colour

White.

Integral accessories

Schlüter-BEKOTEC-BRS 808KF screed edge strip.

Guidance for specification option:

Closed cell polyethylene foam edge strip for flowing screeds.

Schlüter-BEKOTEC-BRS 810 screed edge strip.

Guidance for specification option:

Closed cell polyethylene foam edge strip for conventional screeds.

Schlüter-BEKOTEC-BRSK 810 screed edge strip.

Guidance for specification option:

Closed cell polyethylene foam edge strip for conventional screeds.

Schlüter-BEKOTEC-BTS PE impact sound insulation.

Guidance for specification option:

Suitable for use with Schlüter-BEKOTEC-EN 2520P, Schlüter-BEKOTEC-EN 1520PF.

Schlüter-BEKOTEC-ENR 1520P Edge board.

Show more

Face size (nominal length x width)

1060 x 755 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Material

Polystyrene

Guidance for specification option:

Polystyrene EPS 033 DEO (PS 20).

Manufacturing plant location

Recyclability

Materials can be recycled where they can be reclaimed and where facilities exist.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC

IFC2X3

2

Revit

Revit 2016

3
