Schlüter®-DITRA-HEAT - Electric Underfloor Heating

Verified by manufacturer 5 months ago

Schlüter-Systems Ltd Third party certifications:
  • DoP

    DoP

    Certificate type

An uncoupling and electric underfloor heating system for tiled floor coverings.

Jump to:
BOS
+44 (0)1530 813396 Website

Application

  • Cementitious screeds.
  • Concrete.
  • Heated screeds.
  • Plywood panels that are specially treated to prevent the absorption of moisture and hardwood floors.

Description

A universal substrate for tile coverings, which serves as an uncoupling layer and vapour pressure equalisation layer and is designed for the attachment of heating cables. Installation is preferred by Schlüter-Systems trained installers.


Features and benefits:

  • Non-degrading.
  • Waterproof and can be used for crack bridging.
  • Largely resistant to the effects of watery solutions, salts, acids and alkalis, many organic solvents, alcohols and oils.

General information

Color

Orange

Finish

Other

Guidance for specification option:

Cut-back stud structure.

Material

Polypropylene

Shape

-

Manufacturer guidance

Dovetail configuration.

Length

800 mm

12760 mm

Width

980 mm

Height

5.5 mm

Warranty description

Five year

Uniclass

Ss_60_40_92_27 Electric underfloor heating systemsPrimary

CAWS

T90/478 Underfloor electric heating cables

Product range

Waterproofing, Uncoupling, Drainage and Sound Insulation

Specification data - Electric underfloor heating systems

Heating elements

Schlüter-DITRA-HEAT-E-HK 4 metres length.

Guidance for specification option:

For area of 0.4 m².

Schlüter-DITRA-HEAT-E-HK 6.76 metres length.

Guidance for specification option:

For area of 0.6 m².

Schlüter-DITRA-HEAT-E-HK 12.07 metres length.

Guidance for specification option:

For area of 1.1 m².

Schlüter-DITRA-HEAT-E-HK 17.66 metres length.

Guidance for specification option:

For area of 1.6 m².

Schlüter-DITRA-HEAT-E-HK 23.77 metres length.

Guidance for specification option:

For area of 2.2 m².

Schlüter-DITRA-HEAT-E-HK 29.87 metres length.

Guidance for specification option:

For area of 2.7 m².

Schlüter-DITRA-HEAT-E-HK 35.97 metres length.

Guidance for specification option:

For area of 3.3 m².

Schlüter-DITRA-HEAT-E-HK 41.56 metres length.

Guidance for specification option:

For area of 3.8 m².

Schlüter-DITRA-HEAT-E-HK 47.67 metres length.

Guidance for specification option:

For area of 4.4 m².

Schlüter-DITRA-HEAT-E-HK 53.77 metres length.

Guidance for specification option:

For area of 5.0 m².

Schlüter-DITRA-HEAT-E-HK 59.87 metres length.

Guidance for specification option:

For area of 5.5 m².

Schlüter-DITRA-HEAT-E-HK 71.57 metres length.

Guidance for specification option:

For area of 6.6 m².

Schlüter-DITRA-HEAT-E-HK 83.77 metres length.

Guidance for specification option:

For area of 7.7 m².

Schlüter-DITRA-HEAT-E-HK 95.47 metres length.

Guidance for specification option:

For area of 8.8 m².

Schlüter-DITRA-HEAT-E-HK 107.67 metres length.

Guidance for specification option:

For area of 10.0 m².

Schlüter-DITRA-HEAT-E-HK 136.16 metres length.

Guidance for specification option:

For area of 12.7 m².

Schlüter-DITRA-HEAT-E-HK 164.07 metres length.

Guidance for specification option:

For area of 15 m².

Schlüter-DITRA-HEAT-E-HK 192.27 metres length.

Guidance for specification option:

For area of 17.7 m².

Schlüter-DITRA-HEAT-E-HK 216.27 metres length.

Guidance for specification option:

For area of 20 m².

Schlüter-DITRA-HEAT-E-HK 244.37 metres length

Guidance for specification option:

For area of 22.7 m².

Controls

-

Controllers

Schlüter-DITRA-HEAT-E-R-WIFI.

Guidance for specification option:

5.1 cm touchscreen display thermostat with two remote floor sensors and WiFi functionality.

Schlüter-DITRA-HEAT-E-R.

Guidance for specification option:

5.1 cm touchscreen display thermostat with two remote floor sensors.

Schlüter-DITRA-HEAT-E-R3.

Guidance for specification option:

8.9 cm touchscreen display thermostat with two remote floor sensors.

Schlüter-DITRA-HEAT-E-R4.

Guidance for specification option:

Thermostat with on/off function supplied with two remote floor sensors.

Sensors

Floor temperature sensors.

Configuration

Dove-tail.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Material

Polypropylene

Manufacturing plant location

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

3.11 kg CO₂ eq/unit

Self declared

Recyclability

-

Manufacturer guidance

Waste and reclaimed material can be recycled where facilities exist.

Expected Life

Lifetime

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2016

5

IFC

IFC2X3

4

Third party certifications

DoP

Declaration of Performance May 2017

Case studies

Lalit Hotel London - Wetrooms Fit for a Maharaja

Lalit Hotel London - Wetrooms Fit for a Maharaja

Adare Manor - Minimising Build-Up in The Manor

Adare Manor - Minimising Build-Up in The Manor

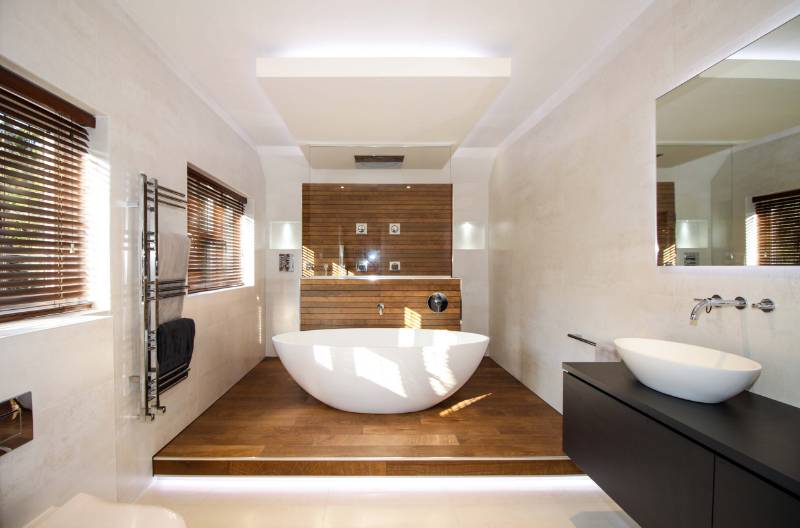

Schlüter Solutions Help to Create Statement Surrey Wetroom

Schlüter Solutions Help to Create Statement Surrey Wetroom

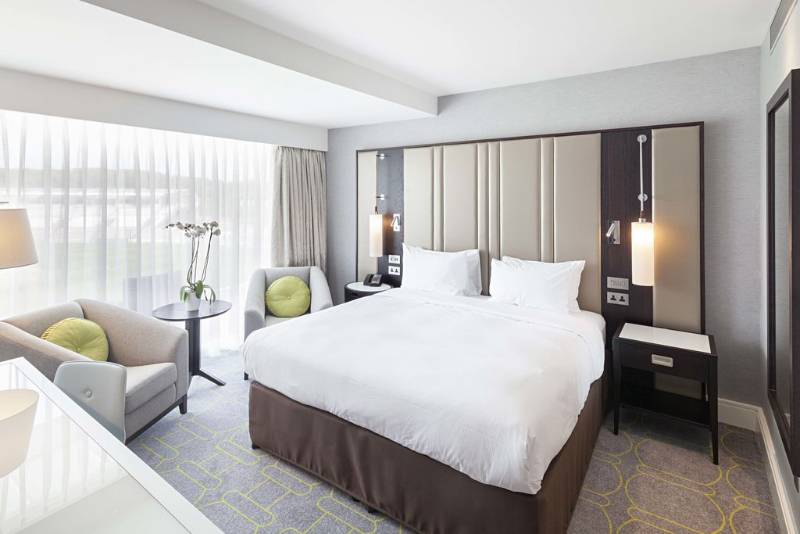

Schlüter-Systems Hits a Six at Cricket Stadium Hotel
