Schlüter®-RENO-RAMP - Ramp Profile

Verified by manufacturer 4 months ago

Schlüter-Systems Ltd

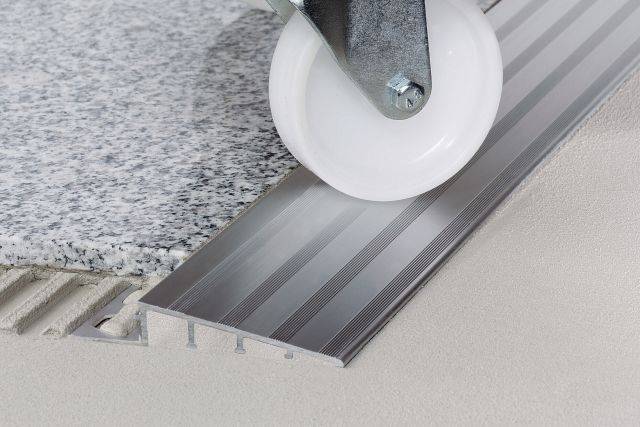

Sloped ramp transition profile of aluminium for tile or stone coverings.

Jump to:
+44 (0)1530 813396 Website

Application

For areas exposed to heavy vehicular traffic. The shallow angle (approximately 10º) of the sloped transition edge ensures the profile is easy to use with forklifts and platform trucks. Also suited to create step-less transitions in areas that must comply with disability requirements.

Description

A profile with a trapezoid-perforated anchoring leg and features an integrated grout spacer. Installation is preferred by Schlüter-Systems trained installers.


Features and benefits:

  • Provides a gradient transition between tile coverings and lower adjoining surfaces.
  • The integrated spacer creates a uniform grout joint.

General information

Color

Silver

Finish

Anodized

Material

Aluminium

Shape

Other

Length

2500 mm

Width

50 mm

64 mm

89 mm

Height

6 mm

10 mm

12.5 mm

15 mm

20 mm

Warranty description

Five year

Uniclass

Pr_35_90_31_58 One-part floor transition stripsPrimary

CAWS

M40/10 Natural stone covering to

M40/110 Tiling to

M40/115 Natural stone covering to

M40/120 Mosaic to

M40/5 Tiling to

M50/70 Edgings and cover strips

M50/740 Edgings and cover strips

Product range

Edge Profiles for Floor Coverings

Specification data - One-part floor transition strips

Profile

Ramped.

Material

Aluminium.

Finish

Anodised.

Colour

Silver.

Size

6 x 50 x 2500 mm

10 x 64 x 2500 mm

12.5 x 64 x 2500 mm

12.5 x 89 x 2500 mm

15 x 89 x 2500 mm

20 x 89 x 2500 mm

Product Reference

Schlüter®-RENO-RAMP

Accessories

Schlüter-RENO-RAMP-K.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Material

Aluminium

Manufacturing plant location

Recyclability

Aluminium product can be fully recycled where local facilities exist

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

Waste and reclaimed material can be recycled where facilities exist.

Expected Life

Lifetime

BIM objects

Platform Compatible Version
DWG
-

1
