Schlüter®-SHOWERPROFILE-WS-WSK - Shower Support Profile

Verified by manufacturer 4 months ago

Schlüter-SHOWERPROFILE-WSK

Schlüter-Systems Ltd Variant:

Support profiles.

Jump to:
+44 (0)1530 813396 Website

Application

Suited for renovation projects.

Description

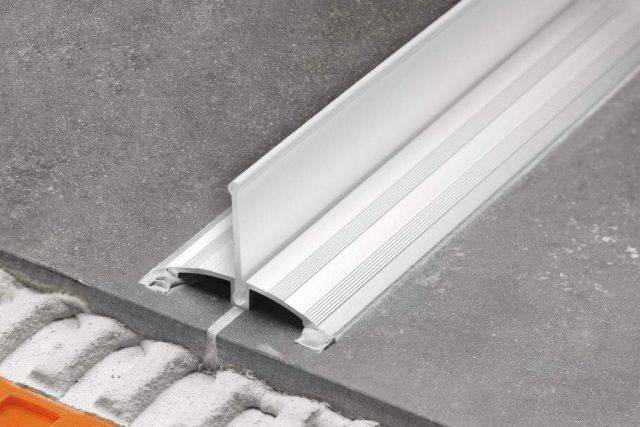

High quality support profiles made of anodized aluminium. Installation is preferred by Schlüter-Systems trained installers.


Features and benefits:

  • Together with the lip inserts Schlüter-SHOWERPROFILE-WSL or Schlüter-SHOWERPROFILE-WSC, they provide optimal splash protection in floor-level showers.
  • The support profile Schlüter-SHOWERPROFILE-WSK can be adhered to existing coverings and is therefore ideally suited for renovation projects.
  • Its visible area has a width of 52 mm. Schlüter-SHOWERPROFILE-WS, in conjunction with the lip insert Schlüter-SHOWERPROFILE-WSL made of transparent soft PVC, has a total height of 37 mm and reliably prevents water from flowing out of insufficiently sloped shower areas. The lip insert will self-right when stepped on or moved over with a wheelchair.
  • The lip insert Schlüter-SHOWERPROFILE-WSC, made of semi-rigid PVC, creates an inconspicuous transition from the shower area to the adjoining space with a low assembly height of 2 mm and a visible area of 16 mm.
  • Schlüter-SHOWERPROFILE-WSL and Schlüter-SHOWERPROFILE-WSC are specially treated to resist the growth of fungi and bacteria and require no special maintenance or care.
  • Schlüter-SHOWERPROFILE-WS/-WSK-AE (Anodized aluminium): The aluminium features anodized finish that retains a uniform appearance during normal use.
  • The lip insert Schlüter-SHOWERPROFILE-WSL is made of highly flexible, soft polyvinyl chloride (PVC). Schlüter-SHOWERPROFILE-WSC is made from semi-rigid polyvinyl chloride (PVC). This material is resistant to UV radiation and typical chemical stresses as well as fungi and bacteria.

General information

Color

Silver

Finish

Anodized

Material

Aluminium

Polyvinyl chloride (PVC)

Shape

Other

Length

3000 mm

2500 mm

1000 mm

Width

19 mm

52 mm

Height

29 mm

37 mm

Warranty description

Five year

Uniclass

Pr_35_90_31_90 Two-part floor transition stripsPrimary

CAWS

M41/445 Strip movement joints

M41/455 Sealant movement joints with metal edgings

Product range

Pre-sloped Modular Shower Trays and System Accessories

Specification data - Two-part floor transition strips

Base section

-

Material

Aluminium.

Guidance for specification option:

Anodized.

Size

52 mm.

Top insert

-

Profile

Lip insert.

Material

PVC.

Size

2.5 mm.

Guidance for specification option:

WSC.

8 mm.

Guidance for specification option:

WSC.

29 mm.

Guidance for specification option:

WSL.

37 mm.

Guidance for specification option:

WSL.

Product Reference

Schlüter-SHOWERPROFILE-WS

Schlüter-SHOWERPROFILE-WSK

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Recyclability

Where product is reclaimed from the building the material can be recycled where facilities exist.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

Waste and reclaimed material can be recycled where facilities exist.

Literature

14.2 - Schlüter®-SHOWERPROFILE-WS - Technical Drawing

14.2 - Schlüter®-SHOWERPROFILE-WS - Technical Drawing

14.2 SHOWERPROFILE-WS -WSK - Technical Data Sheet

14.2 SHOWERPROFILE-WS -WSK - Technical Data Sheet
