Schlüter-TREP-V - Stair Nosing for Tiled Floors
Verified by manufacturer 2 months ago
TREP-V-42
TREP-V-42
Stair nosing profile for use with tiled floors.
Application
Stair nosing profile for use with floor tiles.
Description
Schlüter-TREP-V is an aluminium stair nosing profile with a replaceable thermoplastic slip-resistant tread.
Features and benefits:
- For use with tiled floors.
- The treads are available in a wide range of colours to ensure the necessary contrast to the adjoining tile floor covering.
- The profile is available with either a narrow 42 mm wide tread (12 mm-high visible front) or a wide 60 mm wide tread (32 mm-high visible front).
- Both profile options are available with PVC end caps.
General information
Color | Black Beige Brown Grey Other |
Finish | Anti-slip |
Material | Aluminium Plastic Guidance for specification option: Thermoplastic tread. |
Shape | Other |
Length | 3000 mm 2000 mm 1500 mm 1000 mm Manufacturer guidanceStock lengths; can be cut to suit. |
Width | 42 mm 60 mm Manufacturer guidanceVisible trim width only. |
Height | 9 mm 11 mm 12.5 mm Manufacturer guidanceCompatible tile heights. |
Warranty description | Five year Guidance for specification option: Slip resistant tread is replaceable if it becomes worn or damaged through normal wear and tear. Manufacturer guidanceSlip resistant tread is replaceable if it becomes worn or damaged through normal wear and tear. |
Uniclass | |
CAWS | M40/110 Tiling to M40/120 Mosaic to M40/5 Tiling to L30/590 Applied stair nosings |
Specification data - Rigid stair nosings
Profile | Square. |
Base section | |
Material | Aluminium. |
Finish | Manufacturer's standard. |
Size | |
Rise x going | 12 x 42 mm. |
Gauge | Manufacturer's standard. |
Inserts | |
Material | Slip resistant thermoplastic (replaceable). |
Colour | FG - joint grey.GS - graphite black.HB - light beige.HG - light grey.NB - nut brown.SG - stone grey.SP - soft peach. |
Accessories | None.PVC end caps. |
Tile thickness | 9 mm. 11 mm. 12.5 mm. |
Profile lengths | 3000 mm. 2000 mm. 1500 mm. 1000 mm. Manufacturer guidanceStock lengths; can be cut to suit. Insert drawing reference or schedule if required. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Aluminium Plastic Guidance for specification option: Thermoplastic tread. |
Manufacturing plant location | |
Recyclability | Materials can be recycled where facilities exist |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 60 % Manufacturer guidancePre-consumer |
Expected Life | Lifetime Guidance for specification option: The tread insert can be replaced if the tread is damaged or through normal wear and tear. Manufacturer guidanceThe tread insert can be replaced if the tread is damaged or through normal wear and tear. |
Literature

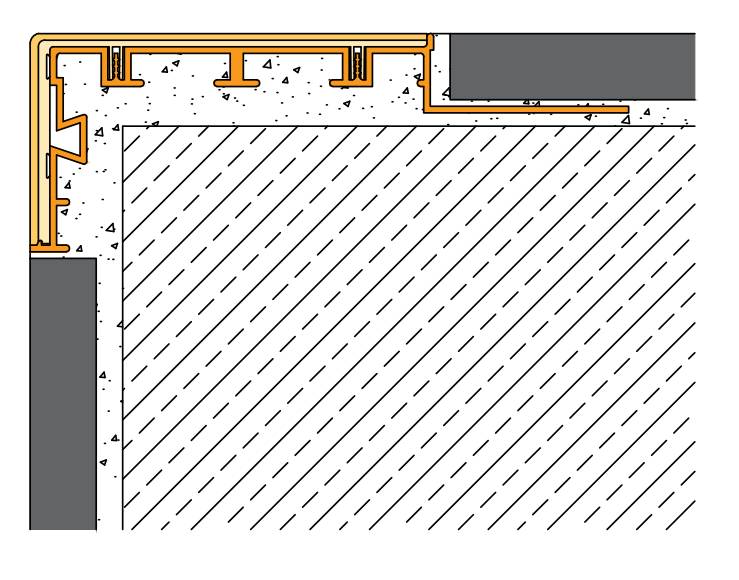

3.6 - Schlüter®-TREP-V - Technical Drawing
