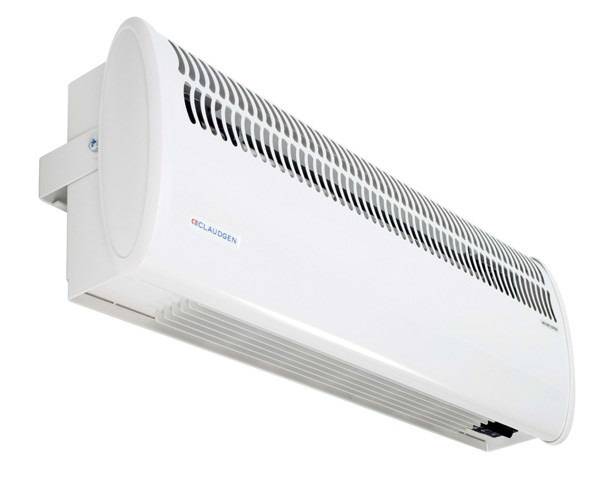

Screenzone Single Door Air Curtains
Verified by manufacturer 3 months ago
HE7420
HE7420
Screenzone Single Door Air Curtains
Application
For doorways in shops, hotels, offices and other commercial premises.
Description
Overall energy savings are likely when an air curtain is sited above a frequently opened external door as the airstream can prevent heat loss.
Features and benefits:
- 3 kW and 4.5 kW models.
- Wall mounting bracket supplied for ease of installation and angular adjustment.
- Alternatively the heater can be suspended, wall or trunking mounted.
- Fitted with integral switches.
- Optional remote switch HE8407.
- 3 heat settings.
- Fan only setting for air circulation.
- Automatic safety cut-out for thermal overload protection.
- Finished in white.
Note: 200 mm clearance from ceiling required.
Included in object:
- HE7402.
- HE7420.
General information
Color | White |
Finish | Powder-coated |
Material | Steel Guidance for specification option: Zinc coated. |
Shape | Rectangle |
Length | 115 mm Manufacturer guidanceDepth |
Width | 634 mm |
Height | 210 mm |
Warranty description | One year Guidance for specification option: All products have a one year warranty which is backed by our nationwide customer care service, offering full spares and field support. |
Uniclass |
Specification data - Air curtains
Arrangement | Horizontal. |
Output | 4.5 KW. |
Mounting height | 2.3 m maximum. |
Casing finish | Polyester powder coated finished in white. |
Accessories | HE8407 remote switch. |
Dimensions | 634 x 210 x 115 mm. |
Safety features | Automatic safety cut-out for thermal overload protection. |
Weight | 5.1 kg. |
AcousticRating | 46 dBA. |
Ceiling | 200 mm. Manufacturer guidanceClearance requirement. |
Mounting | Suspended, trunking, wall. Manufacturer guidanceOptions. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Steel Guidance for specification option: Zinc coated. |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0 kg CO₂ eq/unit Self declared |
Recyclability | This product can be recycled. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 90 % Manufacturer guidancePercentage value will vary depending on the product manufactured and the recycle materials available for use to manufacture the product. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2017 | 1 |
 IFC | - | 1 |
Literature
Single door air curtain data sheet
HE7402 HE7420 user instructions
