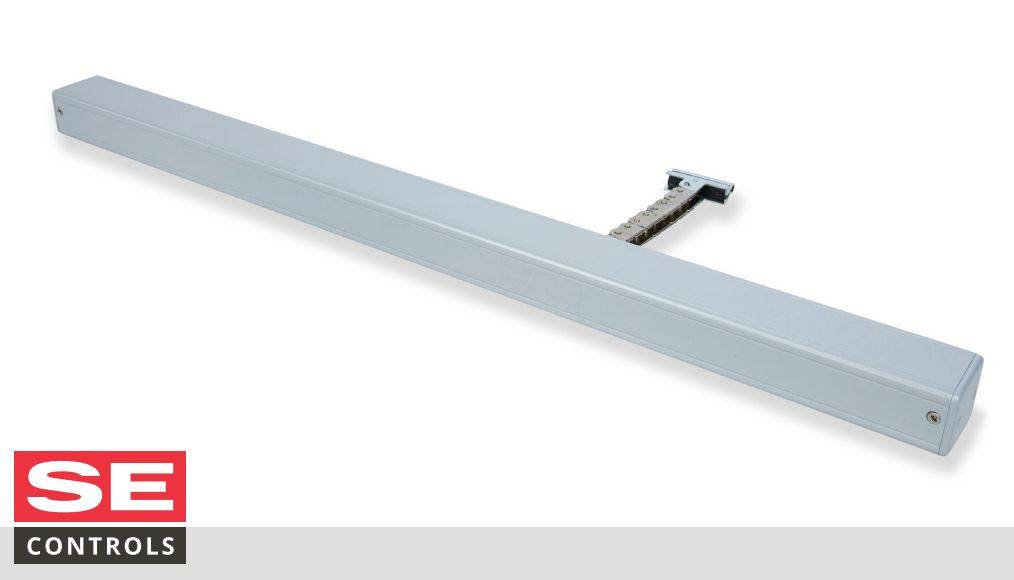

SECO Ni 24 40

Verified by manufacturer 2 months ago

600 mm Stroke - AASI400600S

The SECO Ni 24 40 24 V d.c. chain actuator has been designed to provide precise and reliable operation for smoke and environmental ventilation applications.

Jump to:

+44 (0)1543 443060 Website

Application

Suitable for smoke and environmental ventilation applications.

Description

The SECO Ni 24 40 24 V d.c. chain actuator has been designed to provide precise and reliable operation for smoke and environmental ventilation applications.

Features and benefits:

High-quality ‘Made in Britain’ actuator.
Tested to EN 12101-2: 2003 - check the combination of actuator and profile is certified.
‘Frequency of operation data logging records every actuator movement.
Compact design with variable options for stroke length.
Volt Free Contact version available for positional feedback.
Standard finish is RAL 9006 (white aluminum) but it can be customised to suit installation requirements.
Standard flex length is 2 m but this can be modified to suit installation requirements.
Extensive range of brackets to suit a variety of window systems.
Quiet operation with configurable speed control.
900 mm version is not suitable for top hung applications.

General information

Color	Grey Guidance for specification option: RAL 9006. Manufacturer guidance Bespoke colours available.
Finish	Powder-coated Guidance for specification option: Polyester powder-coated.
Material	Aluminium
Shape	Rectangle
Length	635 mm
Width	54 mm
Height	42 mm
Warranty description	One year Guidance for specification option: One year from date of invoice. Commercial terms of each project will supersede this warranty information. Manufacturer guidance 15 000 cycles.

Uniclass	Pr_75_50_02_13 Chain actuatorsPrimary
CAWS	L10/33 Proprietary windows L10/390 Proprietary windows L10/31 PVC-U windows L10/330 Aluminium windows L10/650 Metal louvres L10/20 Steel windows L10/350 PVC-U windows L10/15 Wood windows L10/25 Aluminium windows L10/3 PVC-U windows L10/45 Rooflights L10/210 Wood windows L10/10 Wood windows L10/310 Steel windows L10/400 Composite windows L10/460 Rooflights L10/480 Roof windows L10/490 Roof ventilators

SKU Code	AASI400600S, AASI400900S

Product range	Actuators

Specification data - Chain actuators

Description	24 V d.c. chain actuator.
Manufacturer	SE Controls.
Standard	Comply with the requirements of BS EN 12101-2.
Stroke	0–600 mm. Guidance for specification option: Configurable. Current draw: 1.0 A.
Electrical supply	24 V d.c.
Operation	Sensor control.
Finish	Powder-coated RAL 9006, silver grey. Guidance for specification option: Standard. Powder-coated, RAL. Guidance for specification option: Insert RAL reference: Consult manufacturer for available colours.
Accessories	Not required. Four-core flex. Guidance for specification option: Volt free contact. Replaces standard two-core flex. Flex length, non-standard. Guidance for specification option: Consult manufacturer for options and insert requirements. Standard flex length 2000 mm. Synchronization.

Controls	3 A controller. Guidance for specification option: Recommend number of actuators: 600 mm stroke: 3. 900 mm stroke: 2. 30 A PSU. Guidance for specification option: Recommend number of actuators: 600 mm stroke: 30. 900 mm stroke: 25. NVLogiQ® PSU. Guidance for specification option: Recommend number of actuators: 600 mm stroke: 4. 900 mm stroke: 4. OS2 AC controller. Guidance for specification option: Recommend number of actuators: n/a. SHEVTEC controller. Guidance for specification option: Recommend number of actuators: 600 mm stroke: 8. 900 mm stroke: 6. Manufacturer guidance 24 V actuators require control from a compatible low voltage unit, such as an OS2 SHEVTEC controller or NVLogiQ® PSU. Permanent power should not be applied.
Opening speed	17 mm/s. Guidance for specification option: Minimum speed: 5 mm/s (configurable).
Fixing	Brackets, face fix. Guidance for specification option: Consult manufacturer for height and offset options. Brackets, sill fixing. Guidance for specification option: Consult manufacturer for height and offset options. Brackets, open inward. Guidance for specification option: Consult manufacturer for height and offset options.
Ingress protection (IP) rating	IP 20. IP 42.
Orientation	Bottom-hung. Top-hung. Guidance for specification option: 900 mm version is not suitable for top hung applications. Side-hung. Centre-pivot.
Interconnecting cable	Flex: Two core, 0.75 mm silicone. Guidance for specification option: Standard. Four core (volt free contact). Guidance for specification option: Optional.
Current	- Manufacturer guidance Current draw dependent on stroke length.
Force	400 N. Guidance for specification option: Thrust/ close force.
Operating temperature range	-5°C to +60°C. Guidance for specification option: Ambient.
Seal	Seal relief programmable up to 20 mm.
Duty cycle	22% (approximately 2 min on, 7 min off).
