SECURABLINDS® Defender Plus

Verified by manufacturer 2 months ago

A5GTRHHT Left-Hand Hung Gate with Transom Security Blind

Abbey Protect Variant:

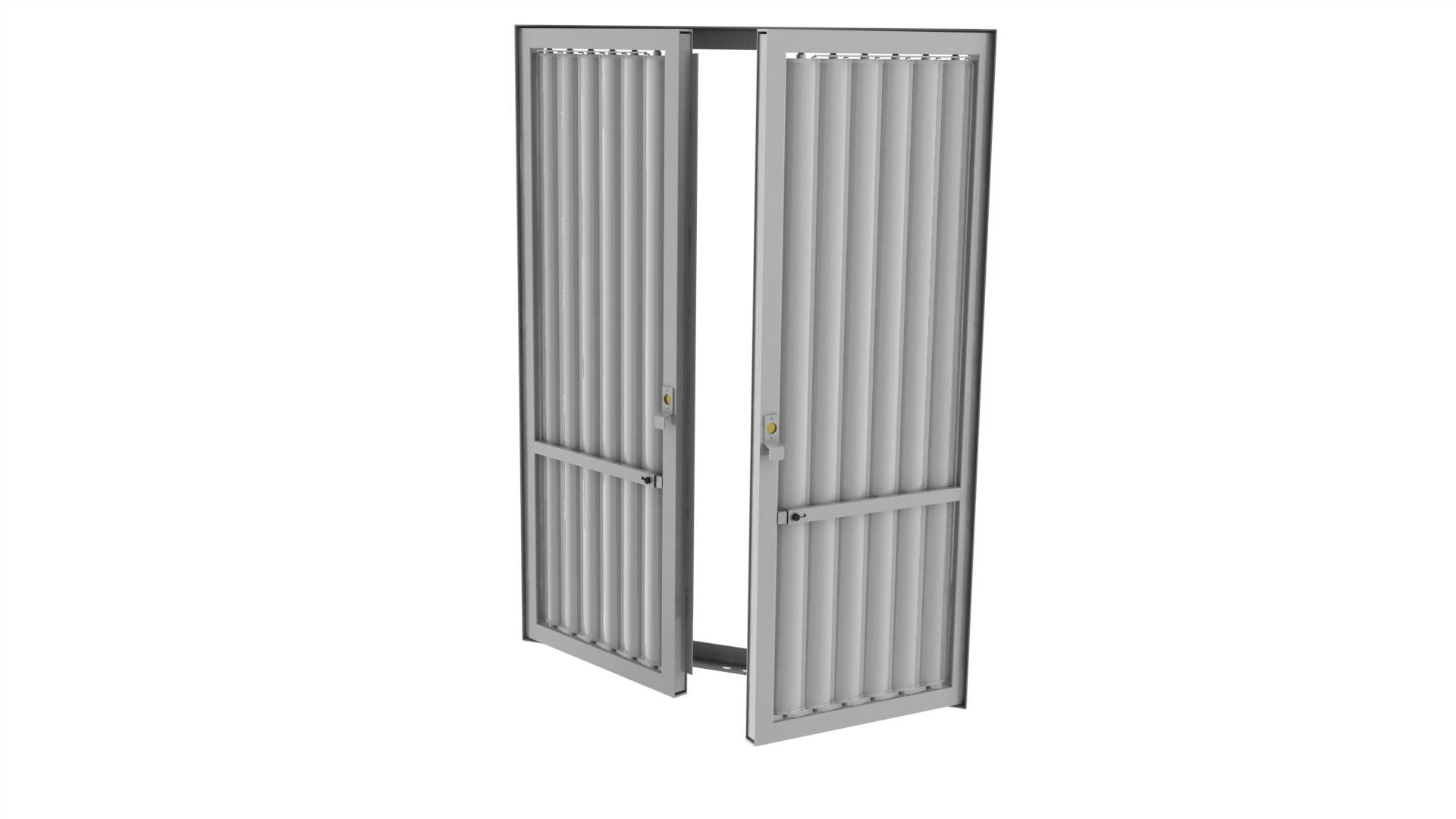

Left-hand or right-hand hung gate with transom security blind, internally fitted behind a buildings window for forced entry prevention.

Jump to:
+44 (0)151 3636304 Website

Application

Can be retrofitted to fit existing buildings as well as new-build applications. Predominantly to be used in window apertures fixed within the reveal and can also be used in door openings. Consult manufacturer for different applications.

Description

SECURABLINDS® Defender Plus, left-hand or right-hand hung gate with transom. Internally fitted security blind for forced entry prevention against a higher level of attack which has an inward opening inner panel, with a transom incorporating two sets of security blinds, which opens to 90° into the room allowing for access to the window. Incorporates a 6 mm polycarbonate sheet UV-coated on both sides for added protection.


Features and benefits:

  • Enhanced protection over the Defender Gate.
  • 70 mm polyester powder coated aluminium blades able to rotate through 180° combining the conventional features of a window blind and the high strength of a security grille.
  • Can be hung to the right-hand or left-hand side of the aperture.
  • A transom is included, splitting the blades into two sets which can be moved independently from one another.
  • Solid construction creates an impervious barrier between a high level attack and the inside of a property.
  • Durable and resilient, with a high core strength.
  • Comprising an enhanced steel outer and inner frame, aluminium blades, high tensile rods (which create a barrier of protection), enhanced hinge blocks, stainless steel hinge pins, enhanced stainless steel shoot bolts, UV-coated polycarbonate sheet and two locking bars (which clamp the blades shut).
  • Incorporates a 6 mm UV-coated polycarbonate sheet which travels with the inner panel to enhance the level of protection.
  • Aesthetically pleasing compared to physical security systems, appearing as a conventional window blind.
  • Does not suffer broken cords, strings or blades.
  • Easy to maintain.
  • Multiple configurations are available.
  • Manufactured in accordance with ISO 9001.
  • Locking bars: Two.
  • Inner panel swing: 90°.


Unit can be packed either side up to 25 mm to accommodate variable aperture sizes.

General information

Color

Beige

Black

Blue

Bronze

Cream

Show more

Finish

Powder-coated

Material

Other

Shape

Square

Rectangle

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_30_59_57_77 Security window screensPrimary

CAWS

L10/60 Security

L10/690 Security

Specification data - Security window screens

Screen

-

Size

-

Manufacturer guidance

Width:

  • 711 mm. 11 blades.
  • 761 mm. 12 blades.
  • 811 mm. 13 blades.
  • 861 mm. 14 blades.
  • 911 mm. 15 blades.
  • 961 mm. 16 blades.
  • 1011 mm. 17 blades.
  • 1061 mm. 18 blades.
  • 1111 mm. 19 blades.
  • 1161 mm. 20 blades.
  • 1211 mm. 21 blades.
  • 1261 mm. 22 blades.
  • 1311 mm. 23 blades.
  • 1361 mm. 24 blades.
  • 1411 mm. 25 blades.


Height:

Lock height, transom height and locking bar height are variable, dependent on overall height chosen. Consult manufacturer for details.

Finish

Polyester powder-coated.

Accessories

None.

Blades

70 mm aluminium blades, positioned at 50 mm centres.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom
