SECURABLINDS® Defender

Verified by manufacturer 2 months ago

A12DST: Two-door horizontal slider with transom.

Abbey Protect Variant:

Two door horizontal slider security blind, internally fitted behind a buildings window for forced entry prevention. Available with or without transom.

Jump to:
+44 (0)151 3636304 Website

Application

Can be retrofitted to fit existing buildings as well as new-build applications. Predominantly to be used in window apertures fixed within the reveal and can also be used in door openings. Consult manufacturer for different applications.


Description

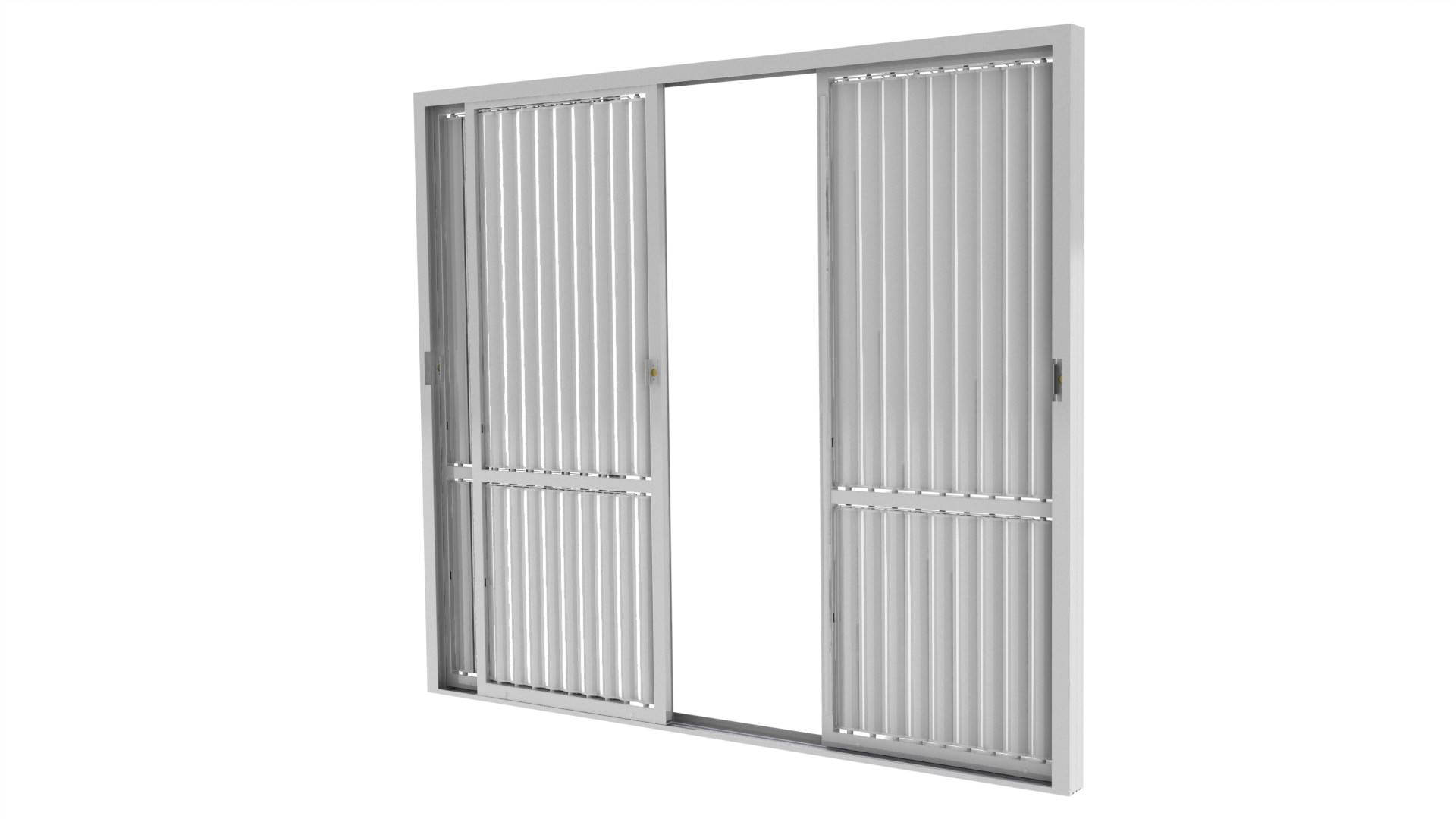

Two door horizontal slider security blind. Internally fitted behind a buildings window for forced entry prevention, includes a left-hand and right-hand inner panel of security blinds, both which are able to slide back one behind the other for access to the window.


Features and benefits:

  • LPCB Approved under LPS 1175: Issue 8 Security Rating B3 (SR2).
  • Secured by Design: Police Preferred Specification.
  • 85 mm polyester powder-coated aluminium blades able to rotate through 180° combining the conventional features of a window blind and the high strength of a security grille.
  • Consists of two sliding panels; the left-hand panel is on the front track, while the right-hand panel is on the back track.
  • Solid construction creates an impervious barrier between a high level attack and the inside of a property.
  • Durable and resilient, with a high core strength.
  • Aesthetically pleasing compared to physical security systems, appearing as a conventional window blind.
  • Does not suffer broken cords, strings or blades.
  • Easy to maintain.
  • Multiple configurations are available.
  • Manufactured in accordance with ISO 9001.


Locking bars:

  • A12DS: Two (one for each panel).
  • A12DST: Four (two in each panel).


- A12DS Security Blind:

Comprising an aluminium outer frame, steel inner frames, aluminium blades, high tensile rods (which create a barrier of protection), shoot bolts and two locking bars (which clamp the blades shut).


- A12DST Security Blind with Transom:

  • Comprising an aluminium outer frame, steel inner frame, aluminium blades, high tensile rods (which create a barrier of protection), shoot bolts, transom, four locking bars (which clamp the blades shut).
  • The transom splits the blades into two sets which can be moved independently from one another.


Unit can be packed either side up to 37.5 mm to accommodate variable aperture sizes.

General information

Color

Beige

Black

Blue

Bronze

Cream

Show more

Finish

Powder-coated

Material

Polycarbonate

Shape

Other

Warranty description

Ten year

Uniclass

Pr_30_59_57_77 Security window screensPrimary

CAWS

L10/60 Security

L10/690 Security

Specification data - Security window screens

Screen

-

Size

-

Manufacturer guidance

Width:

  • 1098 mm (550 mm right and left panels). 12 blades (6 right-hand, 6 left-hand).
  • 1173 mm (550 mm right panel, 625 mm left panel). 13 blades (6 right-hand, 7 left-hand).
  • 1248 mm (625 mm right panel, 625 mm left panel). 14 blades (7 right-hand, 7 left-hand).
  • 1323 mm (625 mm right panel, 700 mm left panel). 15 blades (7 right-hand, 8 left-hand).
  • 1398 mm (700 mm right panel, 700 mm left panel). 16 blades (8 right-hand, 8 left-hand).
  • 1473 mm (700 mm right panel, 775 mm left panel). 17 blades (8 right-hand, 9 left-hand).
  • 1548 mm (775 mm right panel, 775 mm left panel). 18 blades (9 right-hand, 9 left-hand).
  • 1623 mm (775 mm right panel, 850 mm left panel). 19 blades (9 right-hand, 10 left-hand).
  • 1698 mm (850 mm right panel, 850 mm left panel). 20 blades (10 right-hand, 10 left-hand).
  • 1773 mm (850 mm right panel, 925 mm left panel). 21 blades (10 right-hand, 11 left-hand).
  • 1848 mm (925 mm right panel, 925 mm left panel). 22 blades (11 right-hand, 11 left-hand).
  • 1923 mm (925 mm right panel, 1000 mm left panel). 23 blades (11 right-hand, 12 left-hand).
  • 1998 mm (1000 mm right panel, 1000 mm left panel). 24 blades (12 right-hand, 12 left-hand).
  • 2073 mm (1000 mm right panel, 1075 mm left panel). 25 blades (12 right-hand, 13 left-hand).
  • 2148 mm (1075 mm right panel, 1075 mm left panel). 26 blades (13 right-hand, 13 left-hand).
  • 2223 mm (1075 mm right panel, 1150 mm left panel). 27 blades (13 right-hand, 14 left-hand).
  • 2298 mm (1150 mm right panel, 1150 mm left panel). 28 blades (14 right-hand, 14 left-hand).
  • 2373 mm (1150 mm right panel, 1225 mm left panel). 29 blades (14 right-hand, 15 left-hand).
  • 2448 mm (1225 mm right panel, 1225 mm left panel). 30 blades (15 right-hand, 15 left-hand).
  • 2523 mm (1225 mm right panel, 1300 mm left panel). 31 blades (15 right-hand, 16 left-hand).
  • 2598 mm (1300 mm right panel, 1300 mm left panel). 32 blades (16 right-hand, 16 left-hand).
  • 2673 mm (1300 mm right panel, 1375 mm left panel). 33 blades (16 right-hand, 17 left-hand).
  • 2748 mm (1375 mm right panel, 1375 mm left panel). 34 blades (17 right-hand, 17 left-hand).
  • 2823 mm (1375 mm right panel, 1450 mm left panel). 35 blades (17 right-hand, 18 left-hand).
  • 2898 mm (1450 mm right panel, 1450 mm left panel). 36 blades (18 right-hand, 18 left-hand).


Height:

  • Maximum: 2500 mm.
  • Lock height and locking bar height are variable, dependent on overall height chosen. Consult manufacturer for details.


Finish

Polyester powder coated.

Accessories

None.

Transom.

Blades

85 mm aluminium blades, positioned at 75 mm centres.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom
