SEDS - ES AA Single Compartment Smoke Control Damper (≤1600x1000mm) - Smoke Damper

Name: SEDS - ES AA Single Compartment Smoke Control Damper (≤1600x1000mm) - Smoke Damper
Brand: Mandik UK Limited
SKU: rGAoVPrtoYyqd86xS9DyuM

Verified by manufacturer 15 days ago

Mandik UK Limited

Third party certifications:

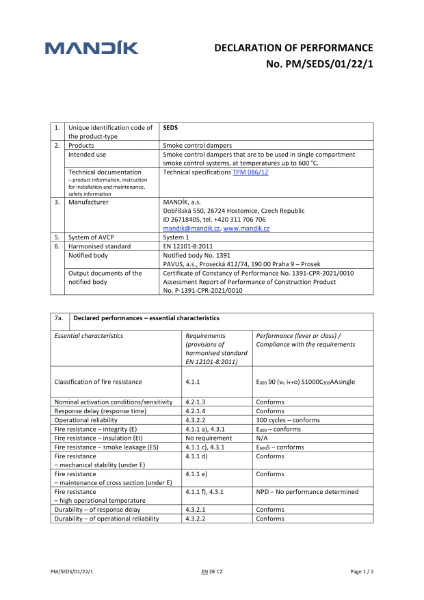

DoP
Certificate type
Certificate of Conformity
Certificate type
Hygiene requirements to VDI 6022
Certificate type
EPD
Certificate type

Single compartment smoke control damper.

Jump to:

0117 4526376 Website

Application

Single-compartment smoke control dampers are designed to remove heat and combustion products (e.g. smoke) from single fire compartments according to EN 1366-9.

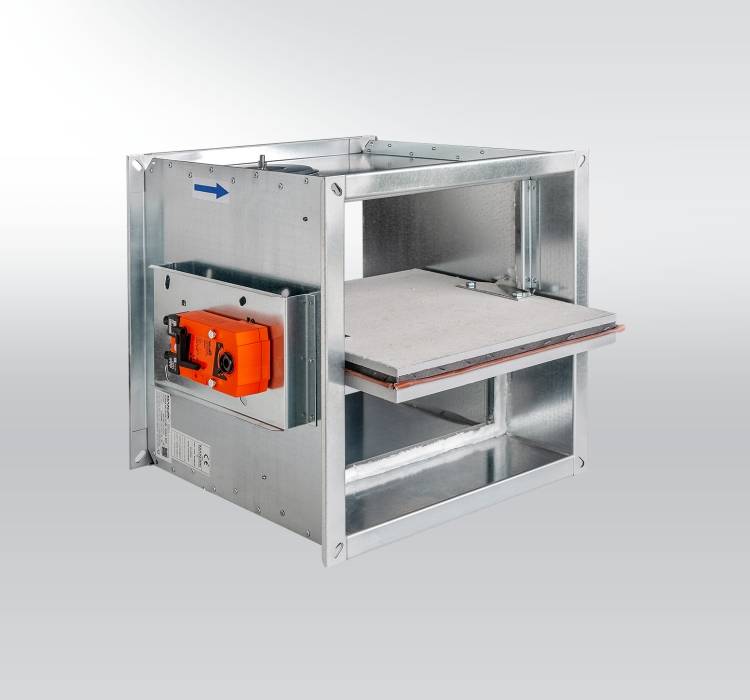

Single-compartment smoke control damper, designed for installation with horizontal blade axis.
The dampers can be installed in various duct sizes with respect to the field of direct applications according with EN 1366-9.

Description

Single compartment smoke control damper allows usage in smoke control ducting systems. Suitable for heat and smoke extraction from one compartment.

Features and benefits:

Square dampers from 180 x 180 mm to 1600 x 1000 mm.
CE certified to EN 12101-8.
Tested in accordance with EN 1366-10.
Classified to EN 13501-4.
Damper actuating by electrical actuator.

General information

Color	Silver
Finish	Galvanized
Material	Steel
Shape	Rectangle Square
Length	450 mm
Width	180 mm 200 mm 225 mm 250 mm 280 mm 300 mm 315 mm 355 mm 400 mm 450 mm 500 mm 550 mm 560 mm 600 mm 630 mm 650 mm 700 mm 710 mm 750 mm 800 mm 900 mm 1000 mm Bespoke Guidance for specification option: The dampers are available in any 5 mm increment within their minimum and maximum sizes. Show more
Height	180 mm 200 mm 225 mm 250 mm 280 mm 300 mm 315 mm 355 mm 400 mm 450 mm 500 mm 550 mm 560 mm 600 mm 630 mm 650 mm 700 mm 710 mm 750 mm 800 mm 900 mm 1000 mm 1100 mm 1250 mm 1400 mm 1500 mm 1600 mm Bespoke Guidance for specification option: The dampers are available in any 5 mm increment within their minimum and maximum sizes. Show more

Uniclass	Pr_65_65_24_80 Smoke dampersPrimary
CAWS	U90/445 Dampers, smoke

Specification data - Smoke dampers

Standard	To EN 12101-8.
Classification	-
Standard	To EN 13501-4.
Single compartment	-
Integrity class	E600 90.
Suitability	Ve duct.
Smoke leakage	S.
Under pressures	1000.
Inside or outside	(i ↔ o).
Smoke control use	C300.
Aerodynamic performance	To EN 1751. Guidance for specification option: Damper blade tightness: Class 2 (minimum). Damper casing tightness: Class C (minimum).
Activation	AA – automatic.
Actuators	Belimo BEN, BEE, BE/ Schischek InMax 50.75-S for 230 V. Belimo BEN, BEE, BE/ Schischek InMax 50.75-S for 24 V. Belimo BEN (BEE, BE)-ST for 24 V with communication and supply device BKNE 230-24. Guidance for specification option: BKNE 230-24 serves as a decentralized network device for powering the actuator and also transmits the signal of the communication and control device BKSE 24-6. Manufacturer guidance Schischek InMax 50.75-S actuators (universal 24V or 230V supply) are used for large size of dampers.

Dimensions	- Manufacturer guidance Consult manufacturer's literature for performance details and insert requirements. Dampers from 180 x 180 mm to 1600 x 1000 mm. The dampers are available in any 5 mm increment within their minimum and maximum sizes. Construction length: 450 mm.
Material	Galvanized steel. Guidance for specification option: As standard.
