Sensorflow 21 - Electronic Small Spout
Verified by manufacturer over a year ago

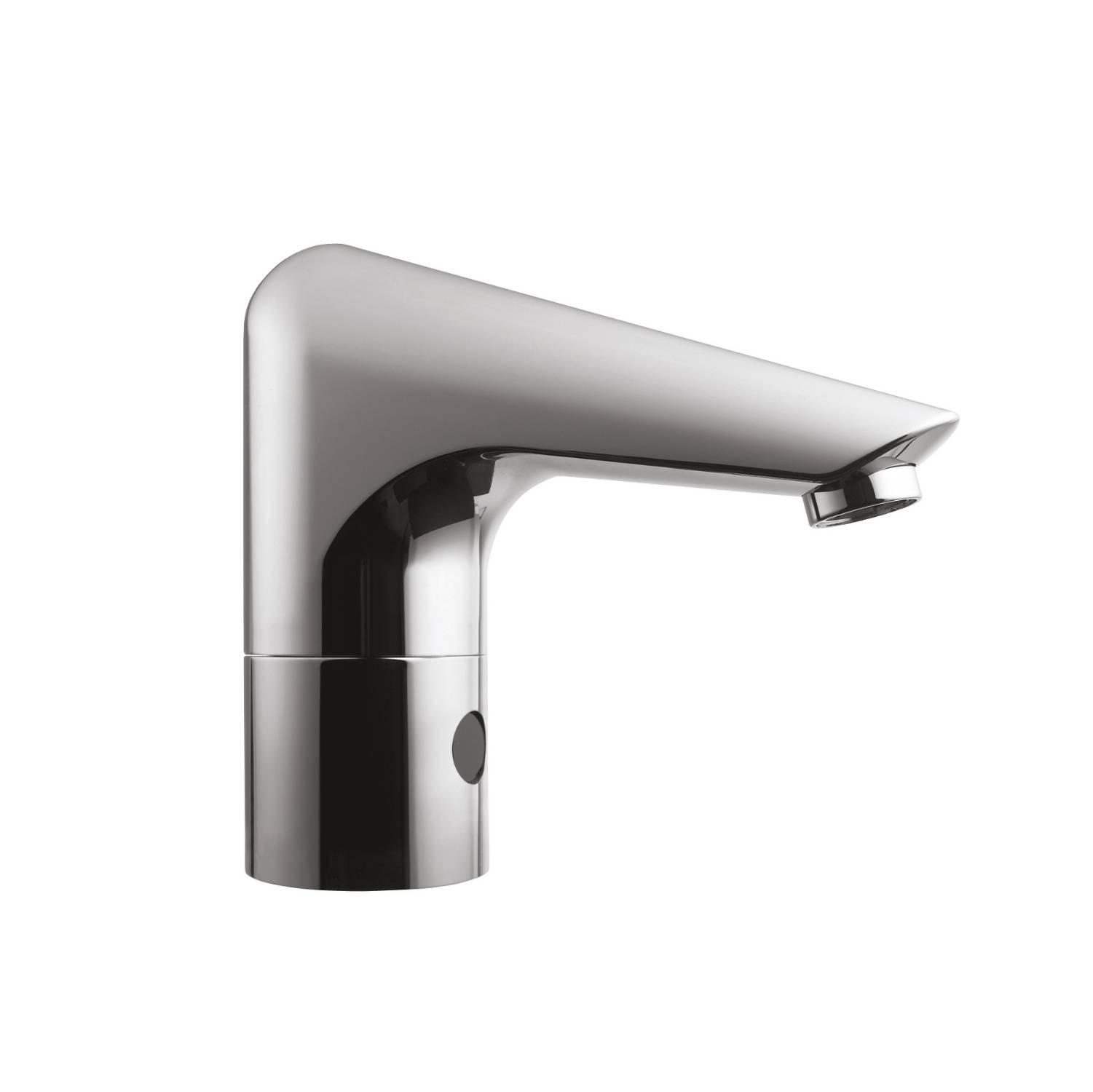

A deck mounted single mixer tap with tall spout and sensor operation.
Application
Suitable for commercial use.
Description
A range of compact water saving vandal resistant sensor operated hands-free electronic basin mounted spouts used where there is a demand for hygiene and water saving.
Sensorflow 21 washbasin mounted tap with tall spout and integral sensor, anti-vandal laminar flow outlet, copper tube inlet, servicing valve and filter with mains supply.
Features and benefits:
- Laminar flow.
- Anti-vandal outlet housing.
- Hygienic "no touch" operation.
- 4.7 litres per minute flow regulator.
- Designed to be supplied with pre-mixed water.
General information
Color | Silver |
Finish | Chrome |
Material | Brass |
Length | 150 mm |
Width | 56.5 mm |
Height | 136 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/335 Washbasins N13/30 Washbasins N11/350 Sinks, taps, traps and wastes |
Specification data - Washbasin manual water supply sets
Approval | Water Regulations Advisory Scheme (WRAS)-approved. |
Form | Sensor mixer tap. |
Materials | |
Body | Brass. |
Finish and colour | Chrome-plated.Chrome, ultra steel. |
Flow rate (maximum) | 4.7 L/minute at 3 bar. |
Integral accessories | Sensors.Guidance for specification option: Spouts with integral sensors detect hands within the sensing range and the solenoid valve is opened. Automatically shuts off if sensor is obstructed for a maximum of 50 seconds. Transformer.Guidance for specification option: Mains powered transformer with option to link up to 5 link units per main unit alternatively there are stand alone battery powered units. Servicing valves.Guidance for specification option: Individual solenoid valve, copper tube inlet and combined servicing valve and filter. |
Mounting | Deck mounted. |
Accessories | None. Low pressure flow straightener. |
