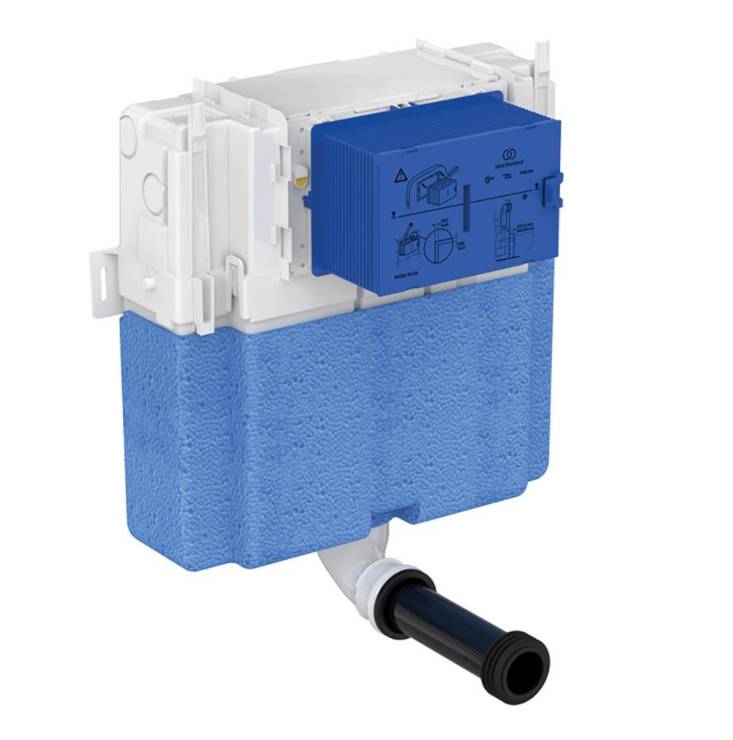

Septa Pro XS pneumatic push button

Verified by manufacturer over a year ago

Ideal Standard (UK) Ltd

150 mm depth, pneumatic WC cistern. front or top actuation CL2, furniture height (820 mm).

Jump to:
+44 (0)870 122 8822 Website

Application

For use as pneumatic WC cistern.

Description

ProSys 150 mm depth WC cistern, pneumatic. front or top actuation CL2, furniture height (820 mm).


Features and benefits:

  • Pneumatic actuation.
  • 150 mm depth.
  • Tool free maintenance.
  • Weight: 2.96 kg.
  • Wide range of contemporary flush plate options.
  • Water saving smart valve (delay fill).
  • Low height capability.
  • Suitable for use with BTW WC bowls at 6 litre dual flush.
  • The valve can be adjusted to 4.5 litre low volume flushing with appropriate WCs.
  • For use with pneumatic actuation flush plates.
  • Not suitable for electronic actuation flush plates.
  • Front or top actuation.
  • Where top actuation is required use the R017667 front to top conversion kit.
  • Can be used at low furniture height, check flushing matrix for bowl compatibility.

General information

Width

440 mm

Height

415 mm

Uniclass

Pr_40_20_93_89 WC cisternsPrimary

CAWS

N13/10 WC pans and flushing arrangements

N13/300 WCs and cisterns

Specification data - WC cisterns

Standard

To BS EN 997, Class 2 and BS EN 14055.

Form

Concealed.

Operation

Push-button.

Capacity

6/4.5 L.

Water supply, overflow and outlet holes

-

Outlet

Bottom outlet.

Dimensions

440 x 150 x 415 mm.

Guidance for specification option:

W x D x H.
