Series 10 Slimline Horizontal Sliding 2 Pane

Name: Series 10 Slimline Horizontal Sliding 2 Pane
Brand: Selectaglaze Ltd
SKU: uM4XmVPYVW9dEXVg73jP6U

Verified by manufacturer 6 days ago

Selectaglaze Ltd

Third party certifications:

Acclaim Accreditation
Certificate type
Achilles Information Limited - Procurement Management
Certificate type
CHAS
Certificate type
Constructionline
Certificate type
ISO 9001 Quality Management
Certificate type
Alcumus SafeContractor
Certificate type

Slimline horizontal sliding (HS) secondary glazing with two panes.

Jump to:

BOS

+44 (0)1727 837271 Website

Application

Slimline framing section in a two-pane horizontal sliding option that can provide blast mitigation.

Description

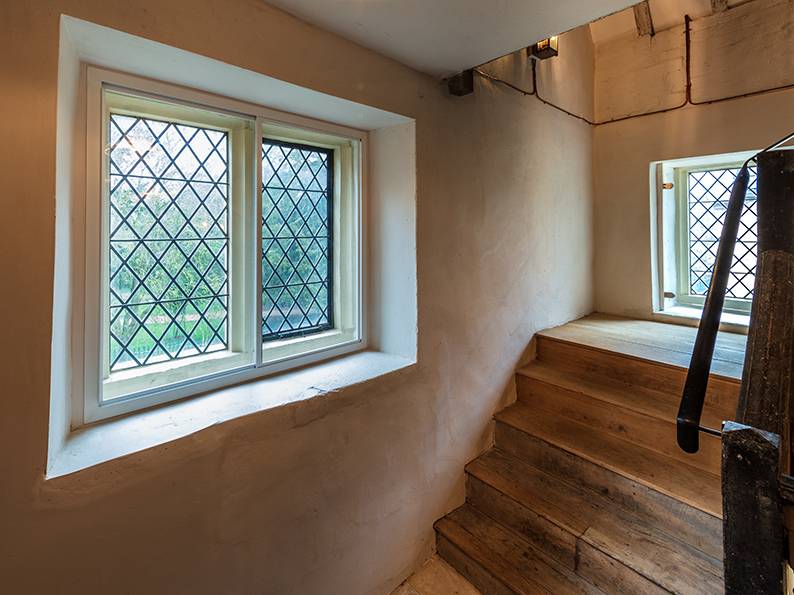

Slimline horizontal sliding (HS) secondary glazing unit with two sliding sashes. Removable to provide easy access to the outer window, facilitating cleaning and maintenance.

Sashes have integral full-height finger pulls, 23 mm wide interlock stile and twin silicone treated, grey polypropylene pile weather seals.

All fixings are concealed within the frame, which may be linked to other frames with a colour-matched mullion/ transom section.

Suitable for listed buildings where the primary glazing cannot be changed. It is a reversible adaptation, so generally accepted by heritage agencies.

Will reduce heat loss by up to 50% using standard glass and up to 65% with a thermally-efficient glass (low emissivity). High performance brush seals will eliminate most drafts and ensure greater comfort near the window.

Features and benefits:

Twin compression seals.
Concealed fixings.
Can be coupled to other units with colour-matched aluminium alloy transom/ mullion.
Low profile running track.

General information

Color	Other Guidance for specification option: RAL colour range, wood grain shades, anodized colour range. White
Finish	Anodized Powder-coated Woodgrain
Material	Aluminium Guidance for specification option: Extruded aluminium alloy 6063-T6.
Shape	Rectangle Other
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	Ten year

Uniclass	Pr_30_59_98_02 Aluminium window unitsPrimary
CAWS	L10/58 Secondary glazing system L10/580 Secondary glazing system

Specification data - Aluminium window units

Description	Slimline horizontal sliding (HS) secondary glazing with two panes.
Manufacturer	Selectaglaze Ltd.
Dimensions and configurations	As drawing. Guidance for specification option: Insert details, available 350–2200 x 500–2800 mm (h x w). As schedule. Guidance for specification option: Insert details, available 350–2200 x 500–2800 mm (h x w).
Product performance	-
Safety	-
Security level	None. ISO 16933 EXV 45.
Environmental	-
Acoustic performance rating	46 dB (Rw). Guidance for specification option: Up to 46 dB (Rw) reduction dependent on glass and cavity.
Thermal	-
Whole window U-value	1.81 W/m²K. Guidance for specification option: As low as 1.81 W/m²K, dependant on glass and primary window make-up. 2.9W/m²K.
Frame	-
Profile	Standard. Low-profile.
Finish as delivered	-
Coating	Anodized. Polyester powder-coated. Wood-grain effect.
Colour	Analok bronze AA25. Guidance for specification option: For anodized. Analok silver AA10. Guidance for specification option: For anodized. HIPCA 9910 semi-gloss white. Guidance for specification option: For polyester powder-coated. RAL. Guidance for specification option: Insert requirement, for polyester powder-coated. Special order. Guidance for specification option: Insert requirement, for anodized and wood grain effect finishes.
Ventilator	Not required. Over the frame acoustic ventilator. Over the frame standard ventilator.
Glazing or infill	-
Requirements	Toughened glass. Laminated. Laminated, low-E. Toughened. Toughened, low-E. Glass polycarbonate. Manufacturer guidance Glazing thickness: 4–6.8 mm.
Hardware	H1- Integral finger pull. Guidance for specification option: The handles are colour matched to the frame. H3 - Recessed finger pull. Guidance for specification option: The handles are colour matched to the frame. L1 - Shoot Bolt. L2 - Fitch catch. Guidance for specification option: Black BL, Brushed steel BS, Polished chrome PC, Gold GO, White WH. L4 - Plunge lock. Guidance for specification option: Polished chrome PC. L13 - Sliding Latch. Guidance for specification option: Colour matched CM.
Operation	-
Type	Manual.
Fixing features	Face-fixed. Reveal-fixed. Splayed reveals.

Thickness	4 mm. 6 mm. 6.4 mm. 6.8 mm. Manufacturer guidance (Glazing)
Glazing gasket	Black. White.
Gloss level	Not required. High-gloss. Matt. Semi-gloss. Manufacturer guidance (Frame)
Acoustic reveal linings	Not required. Vinyl-faced acoustic foam.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Aluminium Guidance for specification option: Extruded aluminium alloy 6063-T6.
Recyclability	Approximately 99% of the product can be recycled. Aluminium and glass are fully recyclable. Remaining 1% is formed of gaskets, pile seals and fixing screws, some of which may also be recycled when segregated. Guidance for specification option: At end of life remove unit/s. Breakdown into constituent parts; aluminium, glass, metal fixings, timber, and recycle.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	43 % Guidance for specification option: 60% of the aluminium used to make the products comes from recycled sources. 35% of glass supplied is from recycled sources. 100% of timber comes from FSC certified forests.
