Series 2 Platform - Plant Deck

Name: Series 2 Platform - Plant Deck
Brand: Configured Platforms Ltd
SKU: kb89tDuPMqavoM7L14GZ3K

Verified by manufacturer 22 hours ago

Configured Platforms Ltd

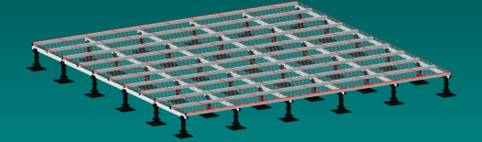

Structural aluminium roof platform for mounting plant and equipment.

Jump to:

+44 (0) 113 276 0450 Website

Application

For creating a level surface for mounting plant and equipment including HVACR on roofs.
Suitable for flat roofs and multi-fall shallow gradients.

Description

Structural aluminium roof platform for mounting plant and equipment.

Features and benefits:

Individually height adjustable feet to pick up multiple roof falls.
Pre-manufactured kit form supply.
Free standing design eliminates penetrations keeping the roof membrane leak free.
Distinctive design distributes the load evenly, reducing the structural requirements of the roof.
All aluminium and 304 stainless steel components with stainless steel fixings – backed by a 20 year warranty.

General information

Color	Grey
Finish	Mill
Material	Aluminium Guidance for specification option: Extruded aluminium structure. Stainless steel Guidance for specification option: Fixings. Plastic Guidance for specification option: Structural plastic bases.
Shape	Square Rectangle Manufacturer guidance Flat surface - square or rectangle - with base structure to suit roof drainage falls.
Length	Bespoke Guidance for specification option: Any size in 600 mm increments.
Width	Bespoke Guidance for specification option: Any size in 600 mm increments.
Warranty description	20 year

Uniclass	Pr_20_85_65_02 Aluminium plant platforms Primary
CAWS	L35/370 Guardings L35/360 Working platforms

Specification data - Aluminium plant platforms

Product reference	Series 2 Platform.

Frame section	Extruded 60 x 40 mm aluminium rectangular hollow sections.
Frame fixing to superstructure	Free standing: Non-polymer migrating, anti vibration rubber pad to each base.
Material	Extruded and expanded 13 mm aluminium diamond pattern mesh, 600 mm wide lengths.
Applied anti-slip treatment	Knurled anti-slip surface.
Assembly connectors	Stainless steel structural tek screws.
Air flow	70% free airflow.
Live load rating	2.5 kPa (255 kg/m²). Guidance for specification option: Load sharing design tranfers centrally located load over the footprint size.
Weight	18 kg/m².
Accessories/ Optional surrounds	Not required. Guardrail system. Guidance for specification option: Can be configured to any of the perimeter sides in any 600 mm increment, with the option for a self-closing gate. Standard Screen system. Guidance for specification option: Can be configured to any of the perimeter sides with an option for a door or a double door. Height options in 400 mm increment sizes above the walking surface. SoundShield system. Guidance for specification option: Can be configured to any of the perimeter sides with an option for a door or a double door. Height options in 400 mm increment sizes above the walking surface - Rw 28. PeaceMaker system. Guidance for specification option: Can be configured to any of the perimeter sides with an option for a door or double door. Height options in 400 mm increment sizes above the walking surface - NRC 1. Acoustic+ system. Guidance for specification option: Can be configured to any of the perimeter sides with an option for a door or double door. Height options in 400 mm increment sizes above the walking surface - Rw 33. Flatscreen system. Guidance for specification option: Can be configured to any of the perimeter sides with an option for a door or double door. Height options in 400 mm increments - Rw 31. Peaceflow300. Guidance for specification option: Can be configured to any of the perimeter sides with an option for a door or double door. Height options in 400 mm increments - Rw 11. Show more

Sustainability data

Material	Aluminium Guidance for specification option: Extruded aluminium structure. Stainless steel Guidance for specification option: Fixings. Plastic Guidance for specification option: Structural plastic bases.
A1-A3 (production stage)	Embodied carbon as defined in BS EN 15804
Normalised unit	8 kg CO₂ eq/kg
Declared unit	8 kg CO₂ eq/kg Self-declared Lower emissions
Recyclability	100% recyclable
Recycled content As defined in clause 7.8 of BS EN ISO 14021	70 % Guidance for specification option: Up to 70%.
