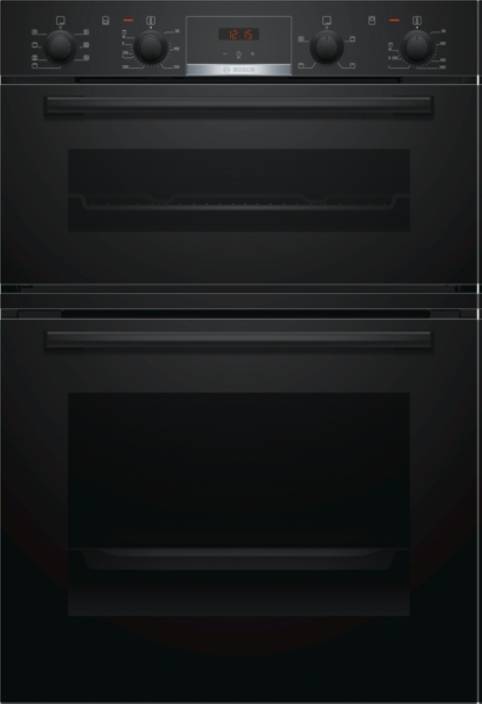

Series 4 Double Oven
Verified by manufacturer 2 days ago
Built-in double oven with red LED display, main oven five functions, two piece slim pans, EcoClean back. 2nd oven three functions.
Application
For domestic applications.
Description
Built-in double oven with 3D hot air, red LED display, main oven five functions, two piece slim pans, EcoClean back. 2nd oven three functions.
Features and benefits:
- Red LED display control: easy to use thanks to the time functions.
- Pop-out controls: Make the front of the oven easy to clean.
- EcoClean direct: less cleaning effort thanks to a special coating which covers the rear wall of the lower oven.
- Two universal pans, slim size: optimized for smaller amounts of different dishes.
General information
Color | Silver Black |
Finish | Brushed |
Material | Stainless steel Glass |
Shape | Rectangle |
Length | 550 mm |
Width | 594 mm |
Height | 888 mm |
Warranty description | Two year |
Uniclass | |
CAWS | N11/360 Appliances N11/40 Appliances N12/330 Cooking equipment N12/330 Cooking equipment |
Specification data - Built-in electric ovens
Arrangement | Double oven. |
Material and finish | Brushed stainless steel.Black. |
Dimensions | |
Height (maximum) | 888 mm. |
Width (maximum) | 594 mm. |
Depth (maximum) | 550 mm. |
Capacity (minimum) | 34 L – first cavity, 71 L second cavity. |
Shelving | Three combination grids, one universal pan, two universal pans (slim size). Five shelf positions. |
Doors | Drop-down. |
Features | Red LED display, main oven five functions, EcoClean back. 2nd oven three functions. |
Rating | 5.9 kW. |
Electrical supply | 220–240 V, 50/60 Hz. |
EU energy label rating (minimum) | A, B. |
Accessories | None. HEZ327000 Pizza stone. HEZ530000 Half tray. HEZ531010 Baking tray, non-stick ceramic coated. HEZ532010 Universal pan. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Series 4, Built-in double oven MBS533BS0B
Series 4, Built-in double oven MBS533BB0B
