ShieldFLEX P Mastic Asphalt Paving System

Verified by manufacturer over a year ago

Shield Membranes Ltd Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

Mastic asphalt paving; waterproofing, leveling and protection system.

Jump to:
+44 (0)20 77409279 Website

Application

Can be used on horizontal, sloped and vertical surfaces. It is a proven way of topping car parks, lorry decks, bridges, walkways and platforms.

Description

A polymer modified paving grade of mastic asphalt, specifically designed for elevated decks, car parks, lorry decks, bridges, podiums and more. It has been designed, tested and certified as being durable enough for commercial traffic. The polymer modification allows the product to retain its integrity at lower temperatures, and on areas with more movement than that which conventional grades of mastic asphalt could withstand.


Technical characteristics:

  • Specific gravity: 2.0-2.4.
  • Water vapour permeability: 0.067% (g/day).
  • Compressive strength (to BS EN 13892-2): 20 N/mm² (after five days).
  • Flash point: <300°C.


Features and benefits:

  • BBA Certified.
  • Proven track record.
  • Unapparelled durability for the application.
  • Polymer modified to increase durability and extend life expectancy.
  • Expected life in excess of 20 years when maintained correctly.
  • ≥15 mm laying thickness (in 5 mm increments).

General information

Color

Black

Finish

Sanded

Guidance for specification option:

generally crimped for added slip resistance

Material

Asphalt

Warranty description

25 year

Guidance for specification option:

Up to

Uniclass

Pr_35_31_05_50 Mastic asphalt (MA) surface coursesPrimary

CAWS

Q22/170 Proprietary vehicular paving

Specification data - Mastic asphalt (MA) surface courses

Standard

To BS EN 13892-2, BS 6925:1988, BS EN 1992-1-1:2004, BS 8218:1998, EN 13501-5:2005.

Third party certification

BBA Certified - 17/5452.

Constituents

-

Aggregate size (maximum)

10 mm.

Binder designation

Polymer modified bitumen (PMB).

Colour

Black.

Recycled content (maximum)

10%.

Density

2100–2150 kg/m³.

Curing time

Light foot traffic: 30–50 minutes; full traffic: 24 hours.

Sustainability data

Country of product manufacture

United Kingdom

Recyclability

100% recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

10 %

Guidance for specification option:

Up to

Third party certifications

Third party certifications

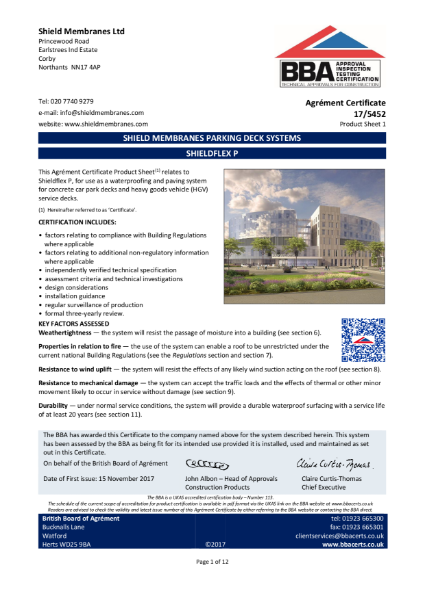

BBA Agrément Certificate

BBA Agrément Certificate

17/5452 ShieldFLEX P Paving Deck System

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management System

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001 Quality Management System

Literature

ShieldFLEX Mastic Asphalt Waterproofing System

ShieldFLEX Mastic Asphalt Waterproofing System
