ShieldSEAL Liquid Applied Waterproofing System

Verified by manufacturer over a year ago

Shield Membranes Ltd Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

Liquid applied roof waterproofing system.

Jump to:
+44 (0)20 77409279 Website

Application

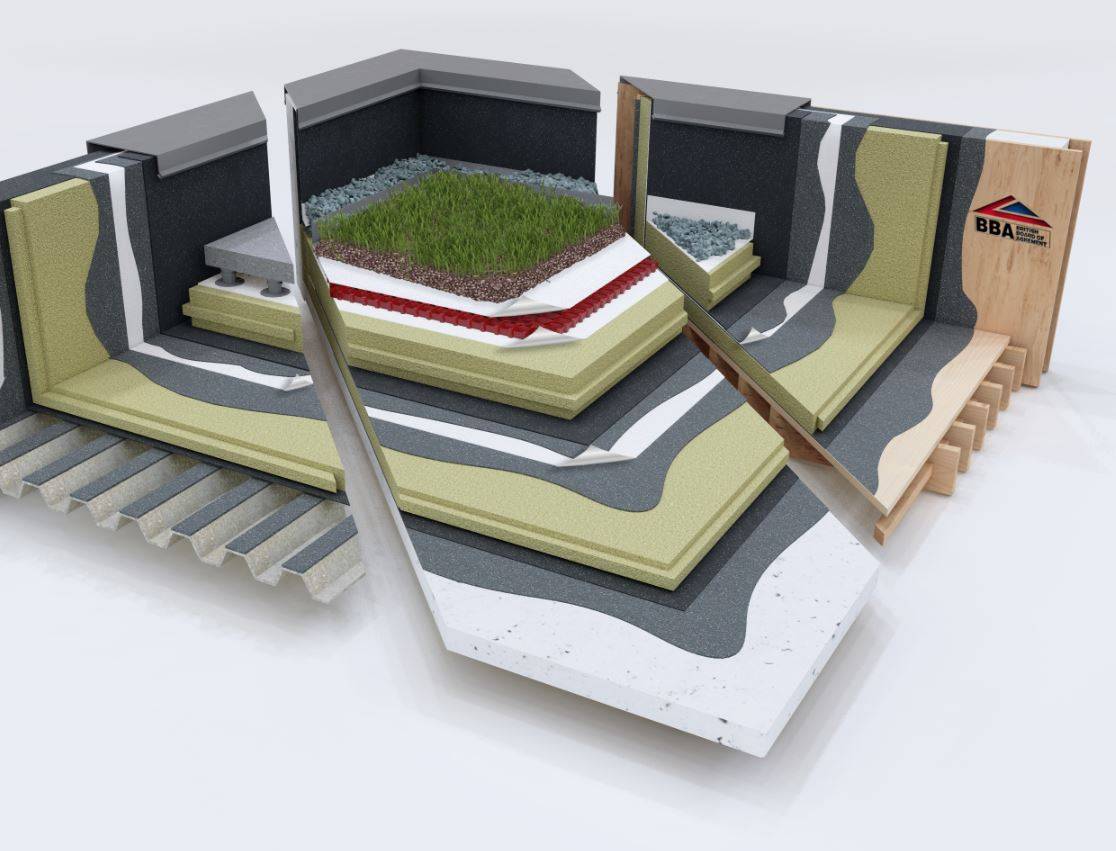

Used on both pitched and flat roofs and can be used on new or existing roofs, walkways, balconies, gutters and further areas that have limited pedestrian access such as blue and living roofs and podiums.

Description

A one part, wet-on-wet liquid applied roof waterproofing system. Due to its excellent adhesion it can be applied on several surfaces: plywood, bitumen membranes, asphalt, metals, brick and concrete.


Components:

ShieldSEAL is a waterproofing system that consists of the following:

  • ShieldSEAL PU Primer - Two-component, polyurethane-based primer for use over concrete substrates (where required).
  • ShieldSEAL - Single component waterproofing based on polyurethane resin.
  • ShieldSEAL Top - Two-component polyurethane resin UV-protection finishing layer.
  • ShieldSEAL Grip - Plastic beads mixed in to SHIELDSeal Top to provide a rough surface for walkways.


Technical characteristics:

  • Density: ShieldSEAL - 1.3–1.4 kg/m³; ShieldSEAL Top: 1.3 kg/m³.
  • Viscosity at 23°C: 2.0–8.0.
  • Dry extract: >90.
  • Flash point: 42°C.
  • Ashes at 450°C weight: 42–47%.
  • Temperature: 2°C and rising and not exceeding 30°C.
  • Hardness Shore A at 23°C: C >75.
  • Tensile strength: Reinforced with ShieldSEAL matting >10 MPa.
  • Dry time: 2–8 hours. Fully cured in 24 hours.
  • Tensile strength: 7 MPa.
  • Overcoat time: +5 ~ +48 hours.
  • Elongation: >400%.
  • Water vapour resistance: u = 2.500.
  • Concrete adherence: >2 MPa.
  • Percentage solids: ShieldSEAL - 90%; ShieldSEAL TOP - 60%.


Features and benefits:

  • Cold applied, no heat required.
  • Suitable for flat (zero falls) roofs.
  • BBA Approved - cert no. 19/5645.
  • Durable - lasts for 25 years when installed as per manufacturers guidelines.
  • When applied to a concrete substrate, it can accept limited foot traffic and light concentrated loads without damage.
  • Weather tightness - System will resist passage of moisture into buildings.
  • Self terminating.

General information

Color

Grey

Guidance for specification option:

Light grey (ShieldSEAL and ShieldSEAL Top); Dark grey ( ShieldSEAL Grip).

Finish

Anti-slip

Guidance for specification option:

ShieldSEAL Grip: Plastic beads mixed in to SHIELDSeal Top to provide a rough surface.

Material

Polyurethane

Shape

Formless

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

40 year

Guidance for specification option:

Up to 40 years.

Uniclass

Ss_30_40_30_40 Liquid-applied cold roof covering systemsPrimary

CAWS

J31/110 Cold deck roof coating

J21/130 Cold deck roof coating

Specification data - Liquid-applied cold roof covering systems

Preparation

-

Horizontal work

ShieldSEAL PU Primer.

Skirtings and vertical work

ShieldSEAL PU Primer.

Liquid-applied waterproofing

-

Type

ShieldSEAL.

Surface protection

ShieldSEAL Top with ShieldSEAL Grip.

Sustainability data

Country of product manufacture

United Kingdom

Third party certifications

Third party certifications

BBA Agrément Certificate

19/5645 ShieldSEAL Cold Applied Waterproofing System

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management System

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001 Quality Management System
