Sikalastic®-8800 - Liquid applied polyurea membrane

Verified by manufacturer 2 months ago

Sika Limited

Liquid applied pure polyurea membrane for both vertical and horizontal areas.

Jump to:
+44 (0)1707 394444 Website

Application

Applied on prepared/ primed external concrete surfaces by spraying. Suitable uses include:

On concrete:

  • Abrasion resistant protective coating in industrial and manufacturing facilities.
  • Waterproofing for cut and cover structures.
  • Waterproofing for submersed structures.
  • Waterproofing on walkways and balconies.
  • Waterproofing on floors and car park decks.
  • Water retaining structures in power plants.
  • Secondary containment structures.
  • Tank, bund and pit lining in sewage and waste water treatment plants.


On steel:

  • Truck bed lining.
  • Waterproofing and wearing layer on steel ridges.

Description

Sikalastic®-8800 is a two part, elastic, 100% solids, very fast curing and coloured pure polyurea liquid applied membrane with good chemical resistance. It is highly flexible and used for both vertical and horizontal areas.


Features and benefits:

  • Very fast reactivity and curing time.
  • Almost immediate return-to-service time.
  • Applicable in temperatures from -20°C to +50°C.
  • Performs in constant dry temperatures from -30°C to +100°C.
  • Excellent crack bridging properties.
  • Good chemical resistance.
  • Excellent abrasion resistance.
  • UV light exposure may lead to yellowing.
  • Not resistant to biogenic sulphuric acid.


Approvals/ standards:

  • Conformity with LEED v4 MRc 2 (Option 1): Building Product Disclosure and Optimization – Environmental Product Declarations.
  • Conformity with LEED v2009 IEQc 4.2: Low-Emitting Materials - Paints and Coatings.
  • Coating for concrete protection according the requirements of EN 1504-2:2004, Declaration of Performance 0206070100100000271008, certified by FPC Notified Body and provided with CE-Marking.
  • Geoscope GmbH, project No. 131303A, 2013, Determination of the durability of the synthetic membrane Sikalastic-8800 in an autoclave, based on DIN EN ISO 13438.
  • Eurofins Product Testing A/S, report No. G23435_Ver2/BJ1, 2013, Determination of the overall migration and migration of isocyanates acc. EN 1186 and EN 14338.
  • KIWA Polymer Institut GmbH, report No. P8331-E, 2013, Testing of static and dynamic crack bridging ability in accordance with DIN EN 1062-7, as well as bond strength after freeze-thaw-cycling with de-icing salt immersion and after thundershower cycling acc. DIN EN 13687-1 and -2, in combination with Sikafloor®-156.
  • KIWA Polymer Institute GmbH, report No. P8395, 2013,Testing of the root resistance according DIN 4062.
  • KIWA Polymer Institute GMBH, report No. P92787-1-E, Tests on a coating system in accordance with test category OS 11/A, according DIN V 18026 in accordance with EN 1504-2.
  • Radon diffusion coefficient EN ISO/IEC17025 Sikalastic ®-8800, CTU in Prague, Test Report No.124042/2017.
  • BBA Certificate No 19/5621 for Below ground and protected Podium Deck waterproofing.

General information

Color

Grey

Material

Polyurea

Shape

Formless

Warranty description

25 year

Uniclass

Pr_35_31_68_47 Liquid tanking resinsPrimary

CAWS

M12/10 Resin flooring

M12/110 Resin flooring

J30/110 Cold-applied tanking

J30/10 Cold-applied damp-proofing

J30/130 Cold-applied damp-proofing

Product range

Waterproofing

Specification data - Liquid tanking resins

Composition

Polyurea.

Shore hardness - A

To DIN 53504, >50.

TensileStrength

To DIN 53504, >20 N/mm²

Elongation at break

To DIN 53504, ~400%.

Crack bridging

To DIN EN 1062-7, Class A5 (Static); Class B4.2 (Dynamic).

Chemical resistance

-

Manufacturer guidance

Resistant to de-icing salts, bitumen, alkalis, fresh- and ground water and various chemicals. Contact manufacturer for specific

information.

Reaction to fire (to EN 13501-1)

Class Efl.

VOC Content (maximum)

<500 g/l VOC.

Primer

Sikalastic® Primer-01.

Guidance for specification option:

  • Two-component, low odour, rapid curing, high solids polyurea/ polyurethane hybrid primer.
  • Consistent and durable adhesion of Sikalastic® Systems on cement based substrates.
  • Consult manufacturer's literature for details.

Not required.

Third-party certification

British Board of Agrément (BBA) certificate.

Literature

Sikalastic®-8800

Sikalastic®-8800

Sikalastic® Primer-01

Sikalastic® Primer-01

Case studies

Bank Station Capacity Upgrade, London - Watertight Concrete

Bank Station Capacity Upgrade, London - Watertight Concrete

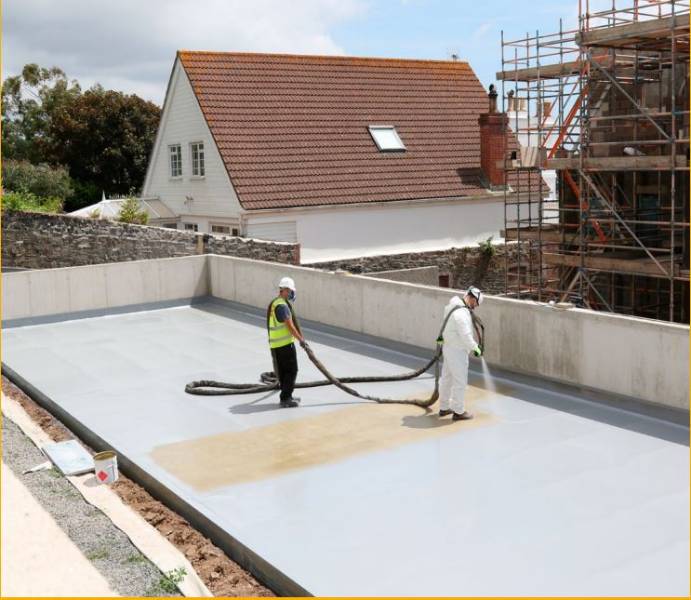

West Grove, Jersey
