SikaShield® Bituminous Membrane (Uninsulated Roof System)

Name: SikaShield® Bituminous Membrane (Uninsulated Roof System)
Brand: Sika Limited
SKU: oJN5VYP8cj8eDGva7PG5Re

Verified by manufacturer 7 months ago

Sika Limited

Third party certifications:

CCPI System
Certificate type
BBA Agrément Certificate
Certificate type
EPD
Certificate type

Bitumen membrane system for uninsulated roofs.

Jump to:

BOS

+44 (0)1707 394444 Website

Application

Flat and sloping roofs.

Description

SikaShield® Pro Bitumen membrane system for cold roofs, consisting of SikaShield® component products.

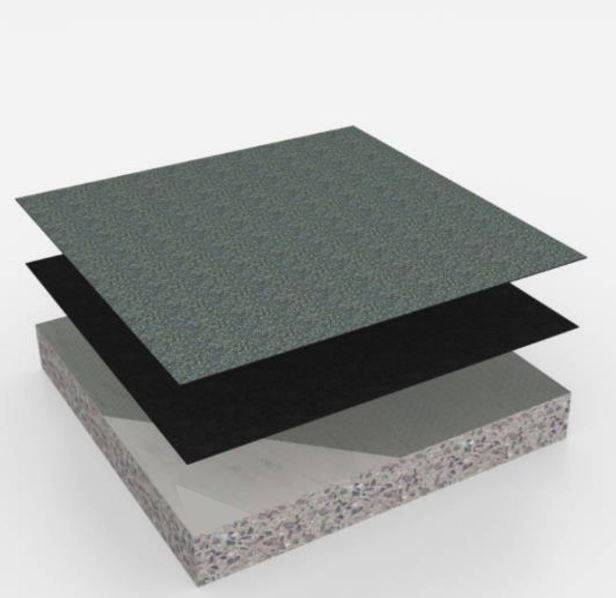

System components:

Primer (SikaRoof® Primer-600 UK / Sika Primer 610 Spray).
Underlay ( SikaShield® E74 PE SA 3 mm).
Cap sheet (SikaShield® HB79 MG 4 mm / SikaShield® E79 MG SA 4 mm.

General information

Color	Black
Finish	Textured
Material	Bitumen
Shape	Rectangle
Length	6000 mm Guidance for specification option: Roll size for cap sheets.
Width	1000 mm

Uniclass	Ss_30_40_30_70 Reinforced bitumen membrane cold roof covering systemsPrimary
CAWS	J41/12 Reinforced bitumen membrane cold deck roof covering

Product range	Roofing

Specification data - Reinforced bitumen membrane cold roof covering systems

Preparation	-
Horizontal work	SikaRoof® Primer-600 UK. Guidance for specification option: One-part ready to use primer. Sika® Primer 610 Spray. Guidance for specification option: Spray applied primer for use with sika self adhered AVCL and carrier membranes.
Skirtings and vertical work	SikaRoof® Primer-600 UK. Guidance for specification option: One-part ready to use primer. Sika® Primer 610 Spray. Guidance for specification option: Spray applied primer for use with sika self adhered AVCL and carrier membranes.
Waterproof covering	-
First layer	-
Type	SikaBit® Pro SA-730. Guidance for specification option: 3 mm Elastomeric Bituminous Roof Membrane, Self-Adhesive, Flexible At -25°C.
Attachment	Self adhesive.
Top layer	-
Type	SikaBit® Pro [T/SA]-940 G UK. Guidance for specification option: 4 mm elastomeric and plastomeric bituminous hybrid roof membrane, with a mineral granule finish.
Attachment	Self adhesive. Torch on. Manufacturer guidance Delete where appropriate.
Detail work	-
Flashings	- Manufacturer guidance In accordance with Sika Limited standard details and Technical guidance.
Skirtings and upstands	- Manufacturer guidance In accordance with Sika Limited standard details and Technical guidance.
Welted drips	- Manufacturer guidance In accordance with Sika Limited standard details and Technical guidance.
Ancillary items	SikaBit® Roof Drain. SikaBit® Roof Lightning Conductor Clip. SikaRoof® Light rooflights. SikaBit® Roof Scupper. SikaBit® Roof Overflow. SikaBit® Roof GRP Edge Trims. SikaBit® Pro Roof Walkway. SikaRoof® SOTER® II Fall Protection System. SikaRoof® Highfix. SikaRoof® Light. SikaPad® Paving Support Pads.
Execution	- Manufacturer guidance In accordance with Sika Limited specification.
System completion	- Manufacturer guidance In accordance with Sika Limited specification.
