SikaShield® Hot Melt (Uninsulated Roof System with Ballast)

Verified by manufacturer 5 months ago

Sika Limited Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • CCPI System

    CCPI System

    Certificate type

Hot melt structural waterproofing system.

Jump to:
BOS
+44 (0)1707 394444 Website

Application

Flat roofs.

Description

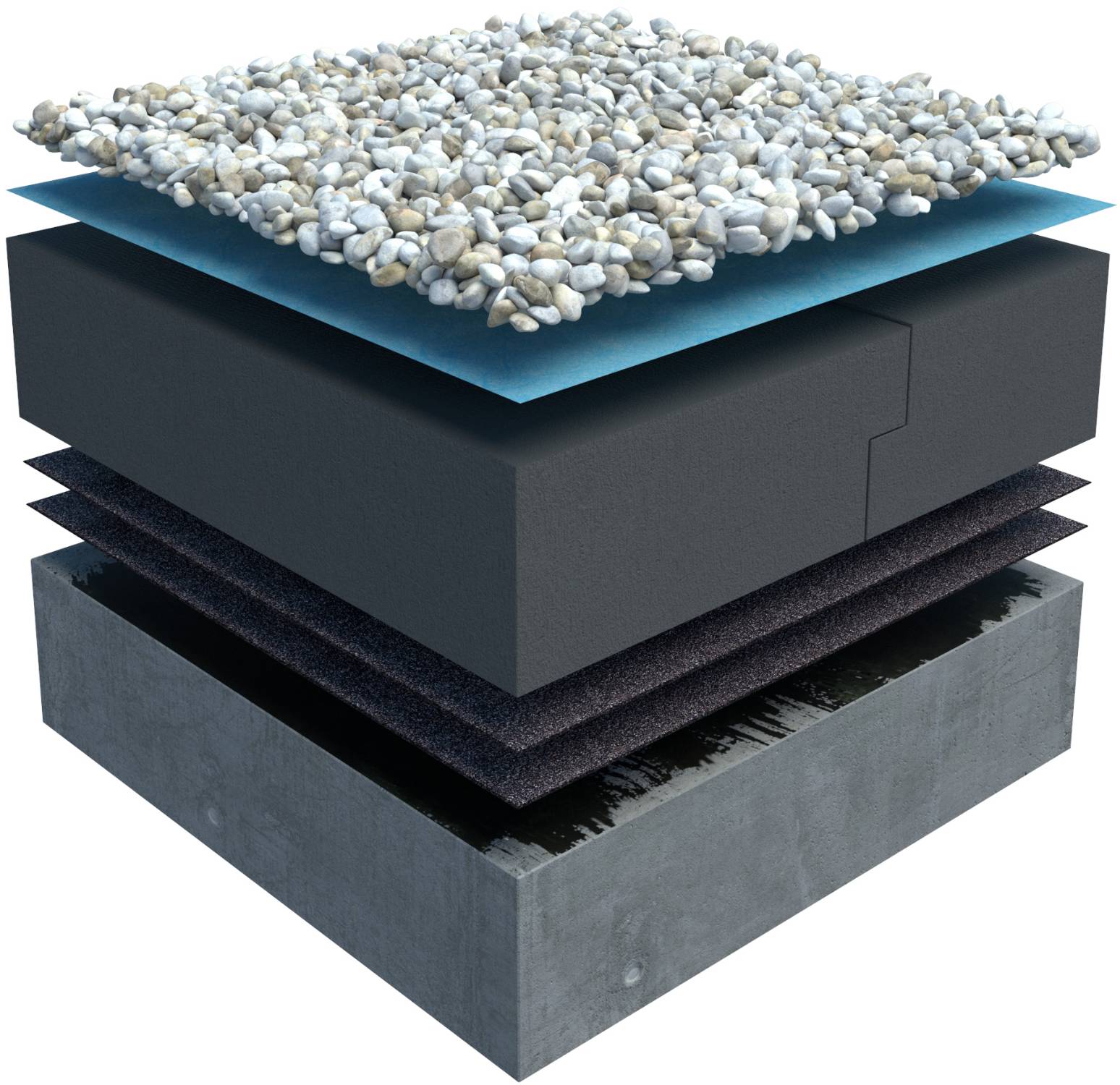

SikaShield® Hot melt structural waterproofing covering system consisting of SikaShield component products.


System components:

  • Primer (Sika® Igolflex P-10 EL UK).
  • Waterproofing - first layer (SikaShield® Hot Melt 50/70).
  • Waterproofing - intermediate layer (SikaShield® Roof F-50 UK).
  • Waterproofing - top layer (SikaShield®Hot Melt 50/70).
  • Protection layer (SikaShield® Roof Access Layer UK).


Can be covered with min 50 mm thick concrete paving (by others) or minimum 50 mm thick 20–40 mm, well-rounded river washed stone ballast (by others).

General information

Color

Black

Finish

Textured

Material

Bitumen

Shape

Rectangle

Guidance for specification option:

Sheets supplied in rolls. Can be formed to shape of the roof.

Uniclass

Ss_30_40_30_40 Liquid-applied cold roof covering systemsPrimary

CAWS

J31/10 Warm deck roof coating

J31/110 Cold deck roof coating

Product range

Roofing

Specification data - Liquid-applied cold roof covering systems

Preparation

-

Horizontal work

Sika® Igolflex P-10 EL UK.

Guidance for specification option:

High Penetration Primer.

Sika® Igolflex P- 15 UK.

Guidance for specification option:

Bituminous primer.

Skirtings and vertical work

Sika® Igolflex P-10 EL UK.

Guidance for specification option:

High Penetration Primer.

Sika® Igolflex P-15 UK.

Guidance for specification option:

Bituminous primer.

Liquid-applied waterproofing

-

Type

SikaShield® Hot Melt 50/70.

Guidance for specification option:

Monolithic rubberised bitumen membrane for roof waterproofing.

Reinforcement

SikaShield® Roof F-50.

Guidance for specification option:

Hot melt reinforcing polyester fleece.

Surface protection

SikaShield® Hot Melt 50/70.

Guidance for specification option:

Monolithic rubberised bitumen membrane for roof waterproofing.

System accessories

SikaShield® Roof Insulated Outlets.

Execution

-

Manufacturer guidance

In accordance with Sika Limited specification.

System completion

-

Manufacturer guidance

In accordance with Sika Limited specification.

Protection layer

SikaShield® Roof Access Layer UK.

Guidance for specification option:

SBS modified bituminous protection membrane.

Surface finish

Minimum 50 mm thick concrete paving slabs (by others).

Minimum 50 mm thick 20–40 mm well-rounded river washed stone ballast (by others).

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

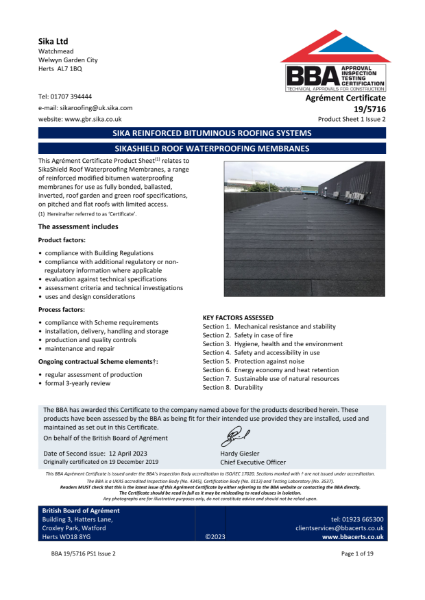

BBA Agrément Certificate

BBA Agrément Certificate

Sika Roofing SikaShield hot melt BBA

CCPI System

CCPI System

CCPI Hot Melt Waterproofing

Literature

Sikashield brochure 2023

Sikashield brochure 2023

Case studies

Castlemead, London Borough of Southwark

Castlemead, London Borough of Southwark

Cyns Tavern, Little Hulton in Salford

Cyns Tavern, Little Hulton in Salford

Cold War Bunkers, Cambridge

Cold War Bunkers, Cambridge

Portland Primary School

Portland Primary School
