Verified by manufacturer 5 months ago
CCPI System
Certificate type
BBA Agrément Certificate
Certificate type
Hot melt inverted roof covering system.
Flat roofs.

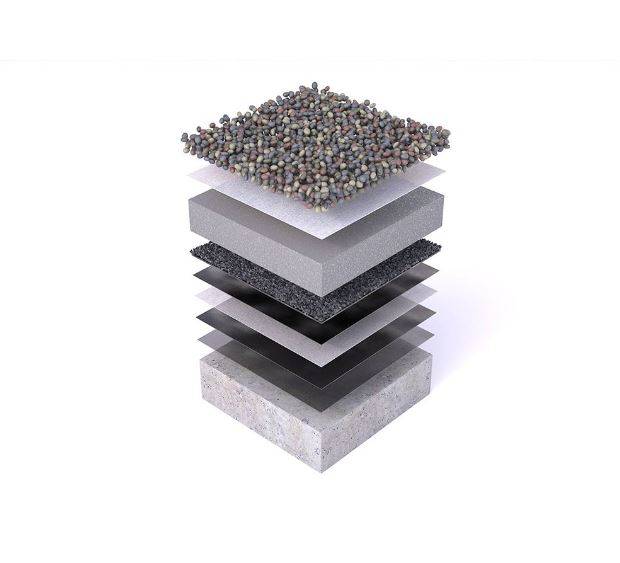

Hot melt inverted roof covering system consisting of SikaBit component products.
System components:
Can be covered with min 50 mm thick concrete paving (by others) or minimum 50 mm thick 20–40 mm well-rounded river washed stone ballast (by others).
Color | Black |
Finish | Textured |
Material | Bitumen |
Shape | Rectangle Guidance for specification option: Sheets supplied in rolls. Can be formed to shape of the roof. |
Uniclass |
Product range |
Preparation | |
Horizontal work | Sika® Igolflex P-10 EL UK.Guidance for specification option: High Penetration Primer. Sika® Igolflex P-15 UK.Guidance for specification option: Bituminous primer. |
Skirtings and vertical work | Sika® Igolflex P-10 EL UK.Guidance for specification option: High Penetration Primer. Sika® Igolflex P-15 UK.Guidance for specification option: Bituminous primer. |
Liquid-applied waterproofing | |
Type | SikaBit® Hot Melt 50/70.Guidance for specification option: Monolithic rubberised bitumen membrane for roof waterproofing. |
Reinforcement | SikaBit® Roof F-50.Guidance for specification option: Hot melt reinforcing polyester fleece. |
Surface treatment | SikaBit® Hot Melt 50/70.Guidance for specification option: Monolithic rubberised bitumen membrane for roof waterproofing. |
Insulation | |
Type | Sikatherm® EPX N 300 R Insulation.Guidance for specification option: Extruded polystyrene thermal insulation board. Sikatherm® EPS 200 0.035 RJ1.Guidance for specification option: Closed cell, rigid expanded polystyrene insulation board. Sikatherm® EPS 200 0.031 RJ1.Guidance for specification option: Closed cell, rigid expanded polystyrene insulation board. |
Fixing | Rebated boards loose laid (subject to sufficient weight and boards being ballasted immediately).Guidance for specification option: Dependant on installation. Contact manufacturer for details. |
Water control layer | SikaRoof® Water Infiltration Reduction Layer.Guidance for specification option: A high performance non–woven polyethylene membrane for roof systems. |
Fill to perimeter upstands | SikaBit® E50 MG UK (mineral surfaced for exposed areas e.g. upstands). |
System accessories | SikaBit® Roof Insulated Outlets. |
Execution | Manufacturer guidanceIn accordance with Sika Limited specification. |
System completion | Manufacturer guidanceIn accordance with Sika Limited specification. |
Protection layer | SikaBit® Roof Access Layer UK. Guidance for specification option: SBS modified bituminous protection membrane. |
Surface finish | Minimum 50 mm thick concrete paving slabs (by others). Minimum 50 mm thick 20–40 mm well-rounded river washed stone ballast (by others). |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
