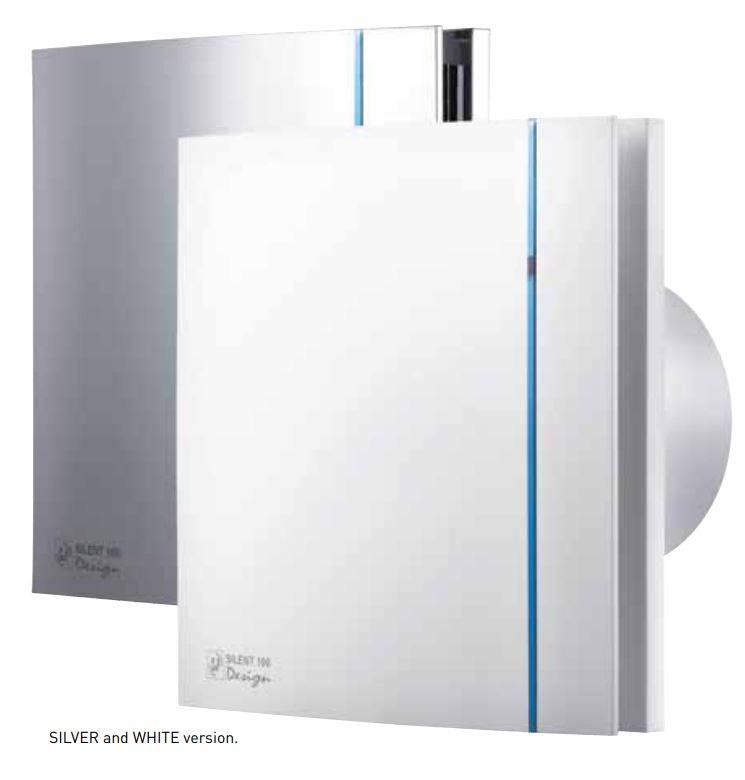

SILENT DESIGN | Wall / Ceiling Extract Fan Series

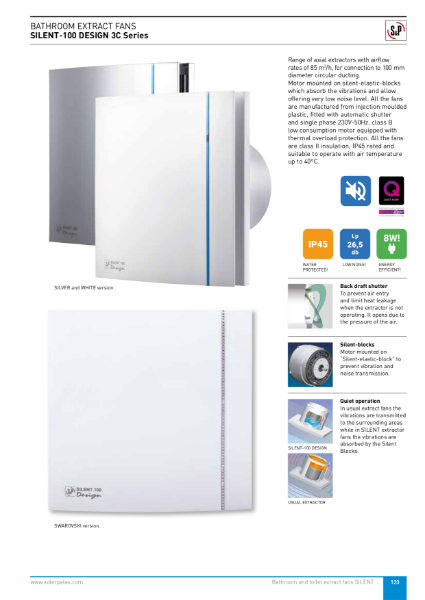

Range of axial extractors with airflow rates of 85–300 m³/hour, for connection to 100–160 mm diameter circular ducting. Motor mounted on silent-elastic-blocks which absorb the vibrations and allow offering very low noise level. All the fans are manufactured from injection moulded plastic, fitted with automatic shutter and single phase 230V-50Hz, class B low consumption motor equipped with thermal overload protection. All the fans are class II insulation, IP45 rated and suitable to operate with air temperature up to 40ºC.

Available as CZ, CZR and CHZ models, consult literature for the different model features including pilot light, backdraft shutter and adjustable humidistat.

Features and benefits:

• Back draft shutter.
• Silent-blocks.
• Quiet operation.
• Silent 200 and 300: Interchangeable colour bars.
• Quiet Mark (Series 100).
