Single Glazed - With Fire Rating - Frameless Glass Partition
Verified by manufacturer 12 days ago
Single glazed, frameless, demountable glass partition with fire protection.
Application
- Office and conference rooms.
- Atriums, schools and fire compartments.
- Industrial and factory areas.
- Training and research facilities.
Description
The continuous fully-glazed partition Lindner Life Fire, with the fire protection class selection F30/EI30, provide an open and transparent feeling in the room. This is complemented by a warm natural material, such as profiles made of wood. The system is studless and the glass is butt-jointed. The system construction allows it to be installed directly on site, which grants a flexible adaptation to the spatial conditions. The installation-friendly system design provide for a quick assembly and for a complete dismantling as well.
Features and benefits:
- Customized, project-specific solutions are possible.
General information
Color | Clear |
Finish | Other |
Material | Wood Glass |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | 3500 mm |
Uniclass | |
CAWS | K30/10 Relocatable partition system K30/130 Relocatable partition system |
Specification data - Partition panels
Unit size | |
Thickness | 100 mm.125 mm.150 mm.Manufacturer guidanceWall thickness. |
Partition height (nominal) | Manufacturer guidanceInsert requirements up to 3500 mm. |
Width (nominal) | Manufacturer guidanceInsert requirements up to 1500 mm. |
Deflection allowance (maximum) | |
Head | Up to 25 mm. |
Panel partition type | Glazed. |
Framing, fixing points and joints | Framless. Glass is butt-jointed. |
Joint treatment | |
Type | Silicone joints. |
Finish and colour | Black. |
Glazed panels | |
Type | Single-glazed.Laminated safety glass.Manufacturer guidance
|
Additional features | Not required.Glass finish - foils. |
Joint width | <6 mm. |
Weight | 50–100 kg/m². |
Connections | Floor: 54 mm. Manufacturer guidanceVisual width of connection profiles. |
Profile | Wood/Wood veneer. Metal optic. |
Reaction to fire classification | To EN 13501-2, EI30. Guidance for specification option: To DIN 4102, F30. To EN 13501-2, EI60. Guidance for specification option: To DIN 4102, F60. To EN 13501-2, EI90. Guidance for specification option: To DIN 4102, F90. |
Sound insulation | To ISO 717-1, 41–51 dB Rw. |
Sustainability data
Material | Wood Glass |
Recyclability | Most of the components can be reused/reprocessed |
Expected Life | 50 year |
Literature

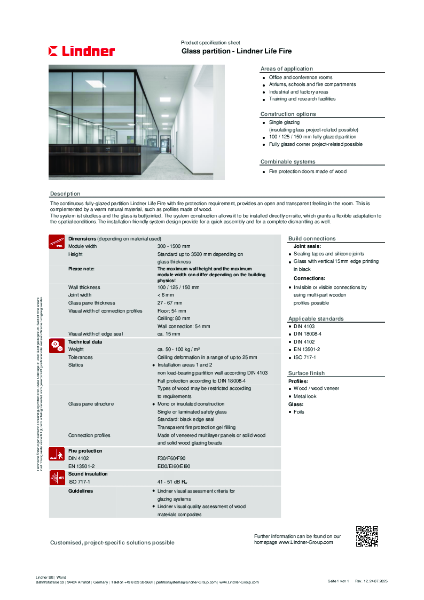

Lindner Life Fire - Data sheet
Lindner Partition systems and doors - Brochure
Case studies
Maria-Ward-Schulen -> Partitions
Scharr Reconstruction -> Ceilings, Partitions, Floors
