Single Ovens - activeClean, TFT touchDisplay Pro

Verified by manufacturer 5 months ago

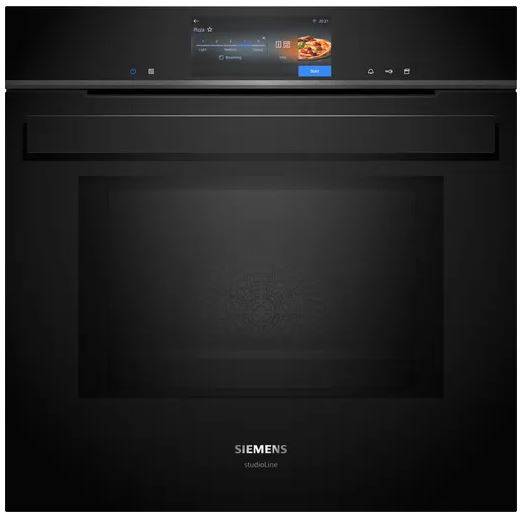

iQ700, Built-in oven, 60 x 60 cm, Black HB978GNB1B

Siemens Home Appliances Variant:

Multifunction range of built in electric ovens with TFT touch display.

Jump to:
BOS
0344 8929021 Website

Application

For domestic applications.

Description

Range of built-in single multi-function activeClean ovens with 13 or 27 heating methods depending on the model.


Features and benefits:

  • studioLine black steel design.
  • Touch control.
  • studioLine glass handle.
  • Cavity inner surface: enamel anthracite.
  • Temperature range 30–275°C.
  • Cavity volume: up tp 71 L (depending on model).
  • Maximum door temperature 30°C.
  • Oven assistant with voice control.
  • activeClean (hydrolyse program/ full glass inner door).
  • Low door temperature during pyrolitic cleaning.
  • Quadruple glazed door with heat reflective glass glazed CoolTouch door.
  • Electronic door lock.
  • Control panel lock automatic safety switch off Residual heat indicator Start button Door contact switch.


Models:

  • HN978GQB1B: multifunction, browning detection by camera, 27 individual and combination functions, TFT touchDisplay Pro, softMove, varioSpeed, pulseSteam, roastingSensor Plus, bakingSensor, coolStart, one pair level independent telescopic rails.
  • HB978GNB1B : multifunction, 13 functions, TFT touchDisplay Pro, softMove,, roastingSensor Plus, bakingSensor, coolStart, one pair level independent telescopic rails.

General information

Color

Black

Grey

Material

Glass

Steel

Shape

Square

Length

548 mm

Width

594 mm

Height

595 mm

Warranty description

Five year

Uniclass

Pr_40_70_24_08 Built-in electric ovensPrimary

CAWS

N12/330 Cooking equipment

N11/360 Appliances

N11/40 Appliances

N12/330 Cooking equipment

Specification data - Built-in electric ovens

Arrangement

Single oven.

Material and finish

Black-coated steel.

Dimensions

-

Height (maximum)

595 mm.

Width (maximum)

594 mm.

Depth (maximum)

548 mm.

Capacity (minimum)

71 L - single oven.

Shelving

Five shelf positions.
One varioClip rail, full extension, stop function, pyrolitic proof.

Doors

Full glass inner door.

Features

Pyrolytic, self-cleaning.

Rating

3.6 kW.

Electrical supply

220–240 V.

EU energy label rating (minimum)

A+.

Fuse rating

16 A.

Frequency

50, 60 Hz.

Operating temperature range

30°C to 275°C.

Cable length

120 cm.

Manufacturer guidance

Length electrical supply cord.

Functions

13 heating methods.

Guidance for specification option:

4D hot air, conventional top and bottom heating, hot air grilling, full width grill, half width grill, pizza setting, coolStart, bottom heat, low temperature cooking, keep warm, plate warming, hotair gentle, conventional heat gentle.

Integral accessories

2 x combination grid, universal pan.

Accessories

Not required.

Z915003: Glass roasting dish 5.4 L.

HZ6BMA00: Assembly kit for vertical installation.

HZ66X650: Cover strip.

HZ664000: Baking and roasting grid (steam).
