Single Window System with a Top Hung Opening Light
Verified by manufacturer 9 months ago

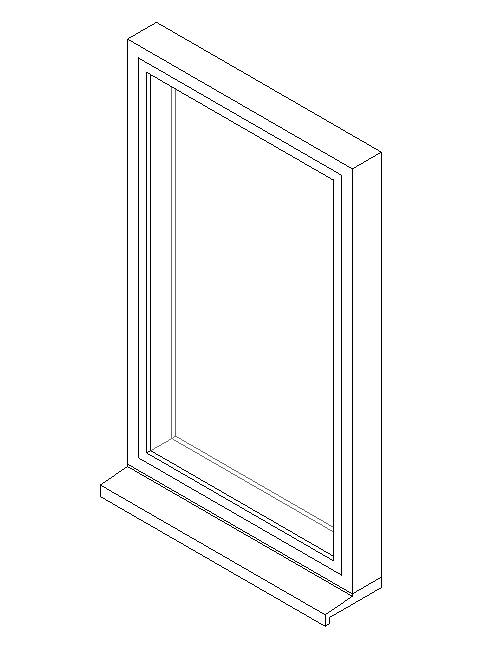

Generic single window system with a top hung opening light.
Description
Pre-assembled generic single exterior window system with optional sill, double or triple glazing.
System includes:
- Top Hung Light
- Outer Frame
- Optional Sill
General information
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 4 |
 Revit | Revit 2016 | 4 |
