Siniat Single Frame Partition CS70R-12St-25G - Metal Stud Partitioning
Verified by manufacturer 2 months ago

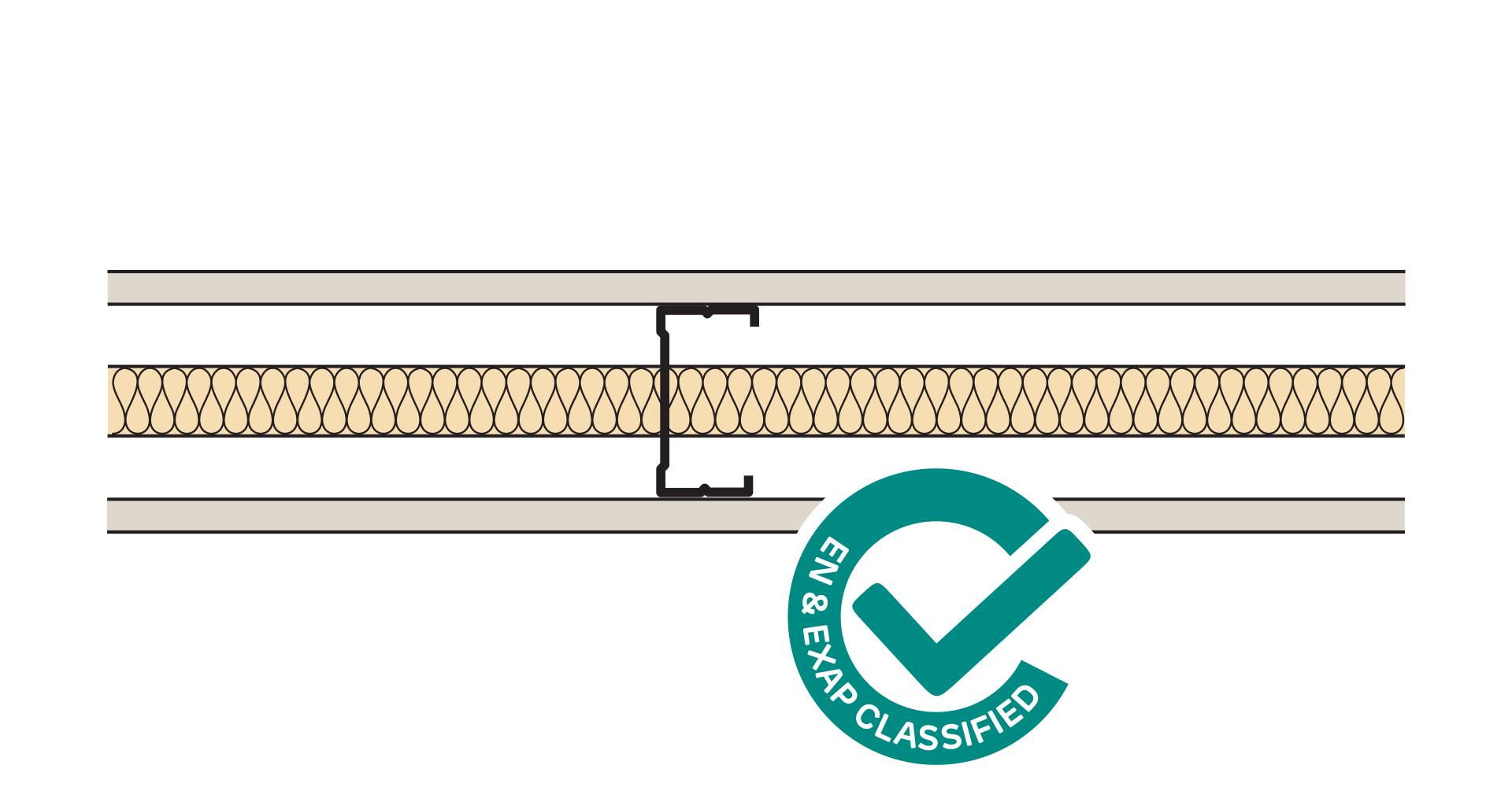

Single frame metal stud partition for use where fire and acoustic performance is required.
Application
- Suitable for use where fire and acoustic performance is required.
- Suitable for use in large commercial spaces.
Description
Siniat Metal Stud Partitioning is an economical, friction-fit system for assembling internal partitions. The design of the components ensures high strength, easy installation and a higher performing alternative to traditional timber frame partitions.
Features:
- Strong.
- Lightweight.
- Natural resistance to bowing, bending and insect infestation.
- High fire resistance performance.
- High acoustic performance.
- Flat finish.
Benefits:
- Less material is required than a similar timber frame structure.
- Multiple lengths can be carried at one time.
- Metal maintains shape, removing the chance of ‘screw popping’.
- Fire performance requirements are easily achieved using metal.
- Acoustic performance requirements are easily achieved using metal.
- Provides an easy surface for decoration.
General information
Material | Plasterboard Metal Glass mineral wool |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Lifetime Guidance for specification option: Etex Building Performance Limited offers both a comprehensive Lifetime System Warranty (excl. Aquaboard™ and Weather Defence) and External Board Warranty (Incl. Aquaboard™ - 10 Years and Weather Defence - 12 Years). For full details see the full Warranty and Proprietary Systems Policy at www.siniat.co.uk/knowledge-centre/. Etex Building Performance Limited warrants to the purchaser that the Siniat Plasterboard Solutions (“Systems”) as originally designed, built and unaltered will perform to the original laboratory performance parameters as set out in the Siniat Drywall Manual and other relevant literature as published by Siniat. The system must be constructed solely with the proprietary products and components as supplied by Siniat. The system must be installed by a professional installer in accordance with: the Siniat Drywall Manual; this specification document; CAD drawings; advice; and all relevant and applicable construction standards and regulations. |
Uniclass | |
CAWS | K10/30 Metal stud K10/125 Metal stud partition system |
Specification data - Gypsum board partition systems
System performance | All Siniat systems should be constructed to BS 8212:1995 and BS 8000-8:1989.Guidance for specification option:
|
Framing | Siniat C Studs CS70/Rx; Siniat U Track Deep Flange UDT72/P; Siniat U Track UT72/Rx.Guidance for specification option: Studs:
Tracks:
|
Insulation | Glass mineral wool.Guidance for specification option:
|
Linings | Face A Plasterboard Linings - Outer Layer: 12.5 mm Siniat Standard Board. |
Fasteners | 25 mm Siniat Self Tapping Screws at 300 mm centres. |
Joint treatment | Decorative.Guidance for specification option: Siniat taping and jointing system using appropriate Siniat jointing materials and Siniat Paper Joint Tape. Consult manufacturer for further details. Non-decorative.Guidance for specification option: Consult manufacturer for details. |
Finish | Siniat Universal Sealer.Siniat Drywall Sealer.Manufacturer guidanceApply undiluted across the whole drylined surface by brush or roller to coverage rate as defined by current Siniat Drywall Manual. |
Samples required | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
System accessories | Guidance for specification option: Consult manufacturer for options and insert requirements, or omit. |
Sealing (joints and penetrations) | Intumescent acoustic sealant. Guidance for specification option: Apply 6 mm continuous beads of Siniat Intumescent Acoustic Sealant around the perimeter of the framing or to the edge of outer layers of board, ensuring that all air-paths are sealed. All penetrations should use supporting constructions detailed in the Siniat Drywall Manual unless superseded by specific test information. For combined, warrantied performance specify FSi fire-stopping products. For cPVC pipe sealing use FSI PYROPRO(R) Sealant in place of Siniat Intumescent Acoustic Sealant. |
Height | Guidance for specification option: Insert requirements.
|
Fire resistance classification | 30 minutes to BS 476-22. |
Sound insulation | 41 Rw dB. |
Duty rating (to BS 5234-2) | Medium. |
Thickness | 95 mm. Guidance for specification option: Nominal thickness. System weight: 17.5 kg/m². |
Deflection | Guidance for specification option: Insert requirements or omit. If required as per Drywall manual. |
System code | CS70R-12St-25G. |
Third-party certification | All products are CE marked and UKCA marked in accordance with construction products regulation. Guidance for specification option: Consult manufacturer for further details. |
Standards | To BS EN 520, BS EN 10346, BS EN 10162, BS EN 14195 and BS EN 14566. Guidance for specification option:
|
Sustainability data
Country of material origin | Spain Manufacturer guidanceApplies to the bulk material (gypsum) only. Other components are from other countries. Consult manufacturer for details. |
Country of product manufacture | United Kingdom Manufacturer guidanceUK applies to the majority of manufacture but a small percentage of finished items are imported. Contact manufacturer for details. |
Material | Plasterboard Metal Glass mineral wool |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | Manufacturer guidanceLatest EPD information available from: https://www.siniat.co.uk/en-gb/documentation/ |
Recyclability | Gypsum and metal components can be recycled depending on the segregation of all materials. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidanceGypsum average 33.5% and metal average 17%. |
