Flat Glass Rooflight With Secondary Blinds Below Glass - Fixed
BRE Certificate
Certificate type
QA Certificate
Certificate type

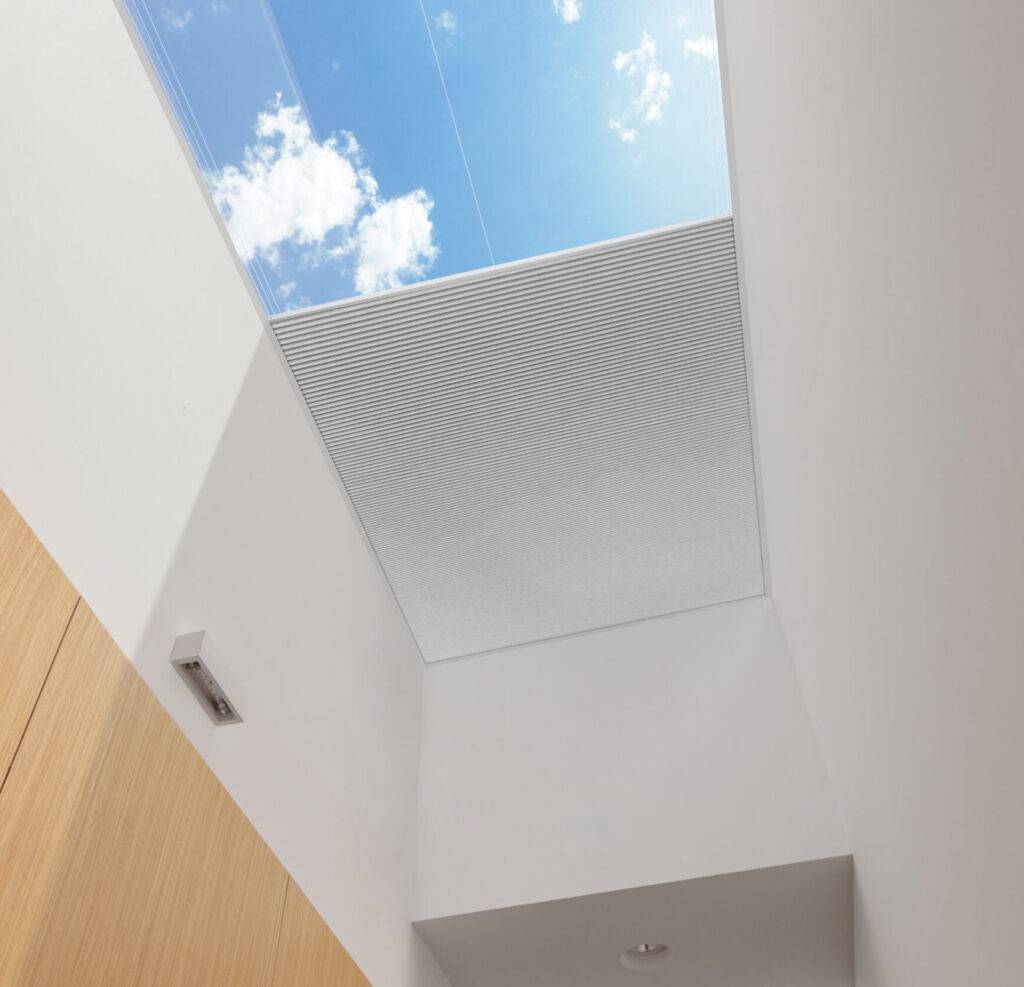

Fixed or opening Flat Glass rooflight with secondary blinds below glass.
For residential, commercial and public buildings.
An aesthetically-pleasing and effective daylighting solution. Fixed or opening flat glass rooflight with secondary blinds below the glass.
Features and benefits:
Designed to standard loadings of 640 N/m² (snow) and 750 N/m² (wind) and in accordance with the following Standards:
Color | Black Grey White Other |
Finish | Powder-coated |
Material | Aluminium Glass |
Shape | Square Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Two year Guidance for specification option: Blind unit. 15 year Guidance for specification option: Rooflight. |
Uniclass | |
CAWS | L10/45 Rooflights L10/460 Rooflights |
SKU Code | SK11-SB-FH |
Product range |
Form | Flat, single pane. Flat, multi-pane. |
Size | Guidance for specification option: Insert requirements (square/ rectangular only). Minimum size: 600 x 600 mm. Maximum size 4000 x 2000 mm. |
Product performance | |
Fire performance | |
Reaction to fire | Euro Class A1 non-combustible. |
Whole window U-value | 0.6 W/m²K. Guidance for specification option: Lowest U-value achievable; consult manufacturer for project-specific values. |
Frame | |
Material | Extruded aluminium. |
Finish | |
Coating | Powder coating to BS EN 12206-1. |
Colour | Anthracite Grey (RAL 7016). White (RAL 9010). Black (RAL 9005). Bespoke RAL. Guidance for specification option: Insert requirements. |
Film thickness (minimum) | Manufacturer's standard. |
Glazing or infill | |
Type | Insulating glass units. |
Colour | Clear. |
Operation | |
Type | Fixed. |
Blinds | Secondary electrically-operated blind, below glass; white. Guidance for specification option: Colour fastness: To BS 5867-1, Grade 6. Fabric: Polyester, 0.15 mm thick (330 gsm). UV stable; blackout with effective backing. Running speed: 30 rpm. |
Contains Red List materials | No |
Country of material origin | France |
Country of product manufacture | United Kingdom |
Material | Aluminium Glass |
Recyclability | Glass and aluminium are highly recycled. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 95 % |
