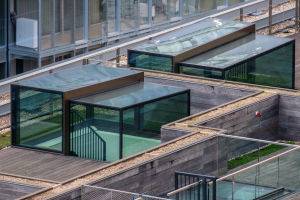

Sliding Box Rooflight - Sky.by.cantifix - Sliding Box for Roof Access
Verified by manufacturer 2 months ago
ISO 10140-2:2010 Sound Reduction Index Certificate
Certificate type
Weathertightness Testing
Certificate type
Sliding box for roof access with one or more panels sliding over one or more fixed panels.
Application
Rooflights and ventilation. Unsupported spans up to 6 m.
Description
Sliding box for roof access with one or more panels sliding over one or more fixed panels.
Features and benefits:
- Frame is a combination of thermally broken aluminium profile with fully cleated corners and steel profiles depending on the dimensions.
- Frame is fully assembled and thermally isolated with Nylon and XPS insulation.
- Standard clear double-glazed or triple-glazed units with a variety of low-E coating to give a minimum centre pane U-value of 0.6 W/m²K.
- All glass is safety glass in either toughened or heat-strengthened laminate.
- Options include low iron glass, solar control coatings along with acoustic or security interlayers.
- Unsupported spans up to 6 m.
General information
Color | Clear Guidance for specification option: Glass. Other Guidance for specification option: Framing. |
Material | Glass Aluminium Glass Reinforced Plastic (GRP) Stainless steel Steel |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Uniclass | |
CAWS | L10/45 Rooflights L10/460 Rooflights |
Specification data - Framed rooflights
Form | Sliding rooflight – single panel roof.Guidance for specification option: Insert requirements including number of sliding and fixed panels. |
Size | Guidance for specification option: Insert requirements. Unsupported spans up to 6 m. |
Product performance | |
Whole window U-value | To BS EN 10077, <1.4 W/m²K. |
Frame | |
Material | Aluminium.Manufacturer guidanceA combination of thermally broken aluminium profile with fully cleated corners and steel profiles depending on the dimensions. Fully assembled and thermally isolated with Nylon and XPS insulation. |
Finish | |
Coating | Powder coating. |
Colour | Guidance for specification option: Insert requirements; powder coated in any standard RAL colour. |
Film thickness (minimum) | Manufacturer's standard. |
Glazing or infill | |
Type | Toughened safety glass.Heat-strengthened laminate safety glass.Other.Guidance for specification option: Consult manufacturer for alternatives and insert requirements. Options include low iron glass, along with acoustic or security interlayers. See Glazing or infill - Coating below for further options. |
Construction | Double glazed.Triple glazed. |
Colour | Clear. |
Coating | Low-E to achieve minimum centre pane U-value.Guidance for specification option: Standard. Solar control. |
Operation | |
Type | Powered, electric.Guidance for specification option: Belt-driven by synchronised electronic motors. |
Control | By internal open/ close toggle switch through dead-man operation.Guidance for specification option: Standard, belt-driven by synchronised electronic motors controlled through central Printed Circuit Board (pcb). The whole 24 V system is designed to be 'plug and play'. External control through rain, wind and light sensors.External control through biometric device.External control through remote-control module.Manufacturer guidanceSee also Power supply for UPS option. |
Power supply | Standard. Uninterrupted power supply (UPS). Guidance for specification option: Achieved by installing a battery backup to allow for operation even during power outage. |
Ironmongery | All fittings in aluminium, stainless steel (304), printed from ABS material or other non-corrosive material. Guidance for specification option: Consult manufacturer for details as required. |
Air permeability | To BS EN 12207, Class 4 at 600 Pa. |
Resistance to wind load | To BS EN 12210, Class E2400. |
Watertightness | To BS EN 12208, Class 7A. |
Performance characteristics | CWCT classification (TN92): Class 2 (if four-edge supported and panels <4.5 m²). |
Sustainability data
Contains Red List materials | No |
Country of material origin | Poland |
Country of product manufacture | Poland |
Material | Glass Aluminium Glass Reinforced Plastic (GRP) Stainless steel Steel |
Manufacturing plant location | |
Expected Life | 25 year |
