Sliding Brick Anchors
Verified by manufacturer 3 months ago
WT75CHT
WT75CHT
A range of sliding brick anchors.
Application
Designed to accommodate vertical movement.
Description

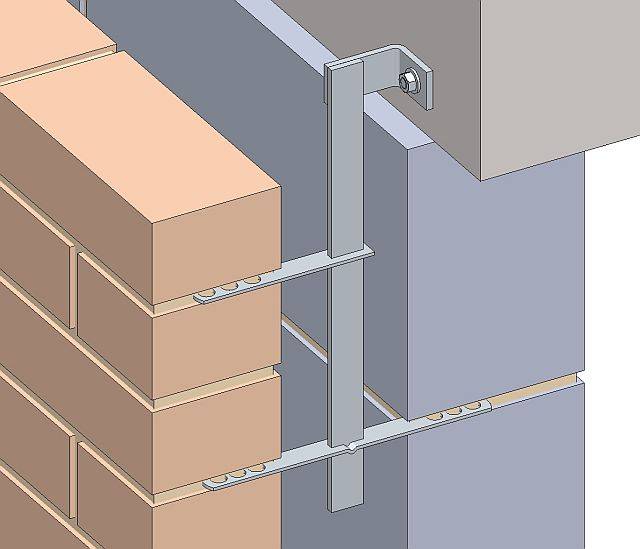

A range of sliding brick anchors designed to accommodate vertical movement and are supplied with one way and/or two way ties to provide a mechanical tie between masonry cladding and the structure.
Features and benefits:
- Minimum of two ties per stem.
- Designed to resist wind loads of up to 1.5 kN.
- Available in three lengths and various head details with 12 mm diameter fixing holes as standard, specials available on request.
- The stems are designed to fit within the cavity and take ties that will slide up and down to allow for vertical movement.
- WT75CHT, WT75BHT, WT75B, WT7EO, WT75L, WT75T, WT75C, restraint for the head of a cavity wall. The stem fits within the cavity and will accept either WT75T1 or WT75T2 ties.
General information
Color | Silver |
Material | Stainless steel Guidance for specification option: Grade 1.4301 (304), standard. Grade 1.4401 (316), optional. |
Shape | Other |
Uniclass | |
CAWS | F30/251 Wall head restraint slip ties |
Specification data - Head restraint slip ties
Material | Stainless steel, grade 1.4301 (304). |
Length | 350 mm.500 mm.600 mm. |
Accessories | None. WBEBM10. Guidance for specification option: M10 expansion bolt for fixing to concrete. WBXSM10. Guidance for specification option: M10 Xylan coated setscrew complete with neoprene isolation washer. WIP75. Guidance for specification option: Neoprene isolating patch for fixing to steelwork. |
Anchor type: | Cranked half twist head. |
Configuration | An offset stem and a single 12 mm hole to allow fixing to the face of the structure. |
Fixing holes | 12 mm diameter to suit M10 fixings. Manufacturer guidanceStandard. |
Ties | 150 mm. Manufacturer guidanceMinimum tie spacing. |
Wind loads | Up to 1.5 kN. Manufacturer guidanceWind load resistance. |
