Sliding Doors

Verified by manufacturer 8 months ago

Norwood Group Limited

Hermetically Sealed, automatic or manual sliding door set system, with a non-ferrous option available.

Jump to:
BOS
+44 (0)161 696 5100 Website

Application

Suitable for use with various types of walling. Norwood’s sliding doors have been designed for various applications, utilising the highest quality materials and technology. Hermetically sealed, they are suitable for a wide range of cleanrooms, laboratories and other controlled environments, meeting the stringent industry standards, including cGMP, MHRA and FDA requirements.

Description

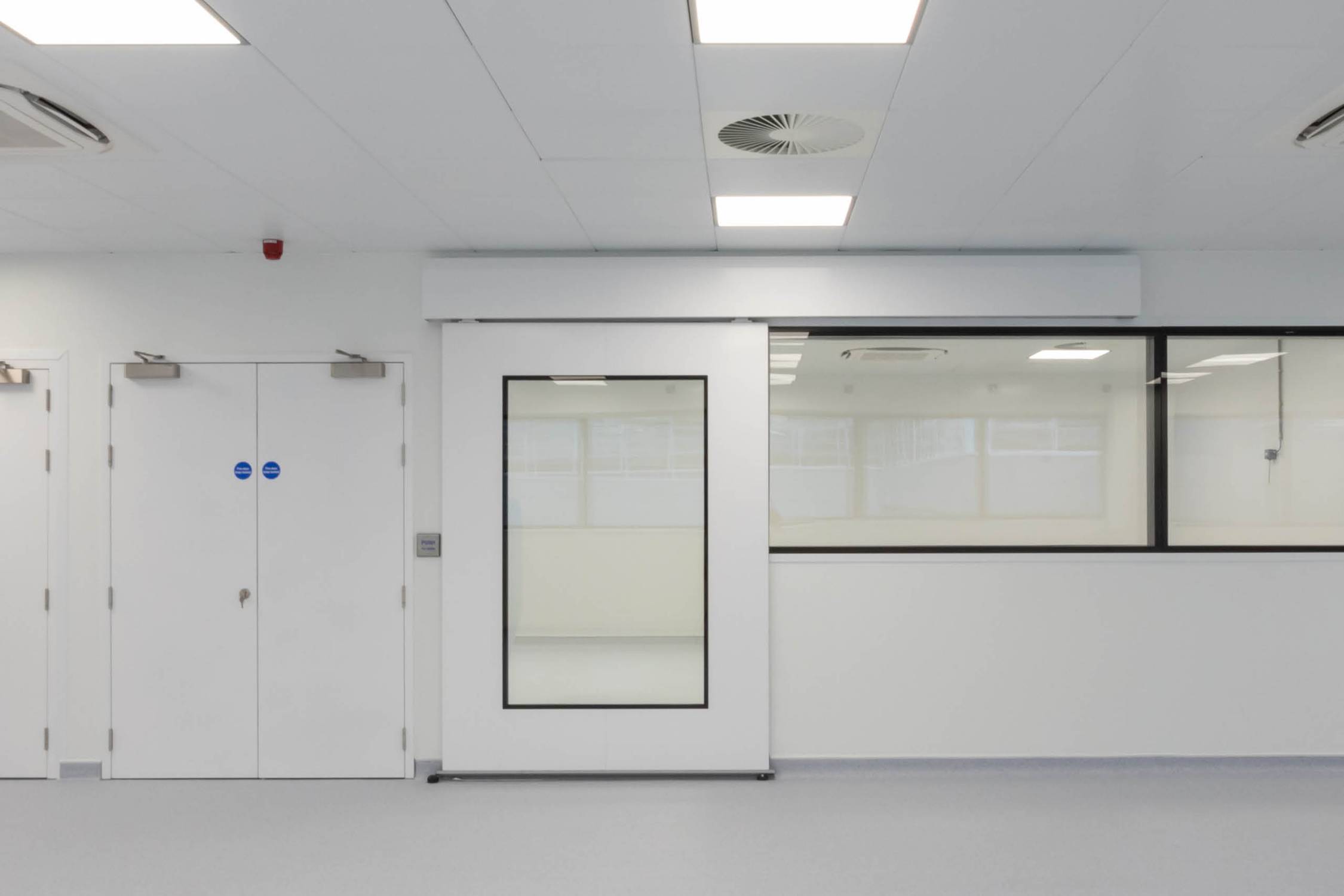

Norwood’s sliding doors have been designed for various applications, utilising the highest quality materials and technology. Hermetically sealed, they are suitable for a wide range of cleanrooms, laboratories and other controlled environments, meeting the stringent industry standards, including cGMP, MHRA and FDA requirements.


Our sliding doors can operate manually or under automation, and can be integrated into various types of walling while offering full flexibility and demountability.


We utilise a 1.2mm gauge mild steel for the leaf and 1.5mm gauge mild steel for the frame. The door set is finished in a high-quality RAL/BS exterior grade polyester coating, applied at 18-20 micron dry film thickness over 4-6 microns of epoxy anti-corrosive prime. The gloss level will be 35% ±5% depending on substrate interaction. Other finishes are also available.


Features and benefits:

  • Statutory compliant, including cGMP, FDA and MHRA.
  • Can be integrated into various types of walling while offering full flexibility and demountability.
  • Feature long lasting finishes that resist corrosion, UV radiation, and the majority of chemicals as well as scratches and the build-up of dirt and bacteria.
  • The door sizes are bespoke to each project and the customers’ requirements.
  • Ironmongery is applied prior to delivery to site to reduce installation and programme, there are various ironmongery packages available, but Norwood can manufacture to meet the customers specification.
  • Norwood is a registered member of the Automatic Door Suppliers Association (ADSA) and has in-house certified installers.
  • Non-ferrous option available.
  • Rail system: Compact aluminium track fixed directly to partition wall. All ramps and stops are integrated prior to arriving to site. Bottom guide is preinstalled prior to delivery making the install seamless. Additional supports can be supplied and fitted by Norwood.
  • Canopies: Stainless Steel, Powder Coated 1.2mm gauge mild steel, Aluminium.
  • Fully flush double glazed units with either 6.4mm laminated glass or 6mm toughened glass. Options available with integrated blinds, x- ray glass, yellow and smart glazing.
  • Designed, manufactured and installed by Norwood, our doors are delivered to site prefabricated, minimising site disruption, improving construction programmes and diminishing health and safety risks.

General information

Color

White

Guidance for specification option:

Standard.

Other

Guidance for specification option:

Various colours available, contact manufacturer for more details.

Beige

Black

Blue

Show more

Manufacturer guidance

RAL or BS colour available,

Finish

Powder-coated

Guidance for specification option:

Polyester.

Material

Steel

Aluminium

Glass Reinforced Plastic (GRP)

Shape

Rectangle

Square

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary

CAWS

L20/55 Doorsets

L20/520 Sliding doors

H11/135 Doors

H13/760 Doors

B12/25 Internal doors

B12/350 Internal doors

L20/280 Doors

Specification data - Sliding door and partition sets

Third-party certification

Accreditation by ADSA.

Guidance for specification option:

Automatic Door Suppliers Association (ADSA) and has in-house certified installers.

Arrangement

Double leaf.

Single leaf.

Leaf and part leaf.

Manufacturer guidance

Consult manufacturer for further details.

Track system

Manufacturer's standard.

Door leaves

-

Construction

1.2 mm gauge steel, cardboard core.

1.2 mm gauge steel, aluminium honeycomb core.

Manufacturer guidance

Fully silicone sealed and welded.

45 mm thick.

Finish and colour

Polyester powder-coated, white (RAL 9003).

Polyester powder-coated, other.

Guidance for specification option:

Various colours available, contact manufacturer for more details.

Manufacturer guidance

18—20 µm dry film thickness over 4-6 µm of epoxy anti-corrosive primer.

Operation

Automatic.

Manual.

Hardware

Guidance for specification option:

All options available - Manufactured to suit user requirements.

Accessories

Not required.

Automation kick switches.

Proximity sensors.

Push-to-release pneumatic operations.

Vision panels

-

Manufacturer guidance

Insert requirements: To various sizes to suit user requirements:

  • Fully flush double-glazed units, size to customers specification.
  • Fire-rated: single-glazed unit (7 mm Pyroguard glass), size to customers specification.
  • 6 mm toughened glass or 6.4 mm laminated glazed glass.

Acoustic performance

Rw 34 dB.

Perimeter seals or inserts

Hermetically sealed.

Material

Steel.

Aluminium.

Sustainability data

Contains Red List materials

No

Country of material origin

France

Country of product manufacture

United Kingdom

Recyclability

Steel is a fully-recyclable material and steel scrap has a strong
market position: steel recovered from structures and end products at the end of their lifecycle is efficiently re-used to make new steel.

Manufacturer guidance

Metals widely recycled.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %
