Slido D-Line11 160P - Door accessories
Verified by manufacturer 6 months ago

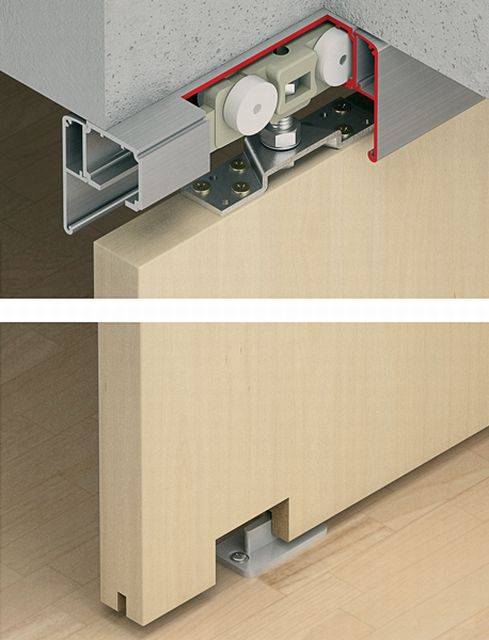

Sliding door mechanism.
Application
Suitable for commercial and residential interior doors.
Description
Smooth running quality system for commercial and residential interior doors.
Features and benefits:
- Fitting sets are for one door, without soft close.
- Trolley hangers have four ball bearing rollers.
- Maximum door weight: 160 kg.
- Door height adjustment: ± 5 mm.
- Suspension fitting with screwed-on support flange.
- For one and two leaf sliding doors.
- Tested to BS EN 1527:2013, 100 000 cycles.
General information
Color | Silver |
Finish | Anodized |
Material | Aluminium |
Length | 2000 mm 3000 mm |
Height | 36.5 mm |
Warranty description | Seven year |
Uniclass | |
CAWS | P21/10 Door track and running gear P21/350 Door track and running gear |
Product range |
Specification data - Door track and running gear
Standard | To BS EN 1527:2019. |
Integral accessories | NoneSoft Close Set available as special order for doors minimum 868 mm wide. |
Product Reference | Slido D-LINE11 160P |
Mounting | 44 mm bracket, 940.62.061. 64 mm bracket, 940.42.063. 2000 mm top track, 941.62.721. 3000 mm top track, 941.62.731. |
Clip panel | Not required. 2000 mm, 940.43.120. 3000 mm, 940.43.130. |
Fitting set | 941.62.009. Guidance for specification option:
|
Sustainability data
Country of material origin | Germany |
Country of product manufacture | Germany |
Literature
Häfele Slido Brochure
Slido D-Line11 160P
