Slimline Panorama design aluminium sliding door system - ASE 67 PD - Aluminium Sliding Door System
Verified by manufacturer 13 days ago
ASE67PD Panarama Design
ASE67PD Panarama Design
Panorama design sliding door system.
Application
Suitable for use as a panoramic sliding door system.
Description

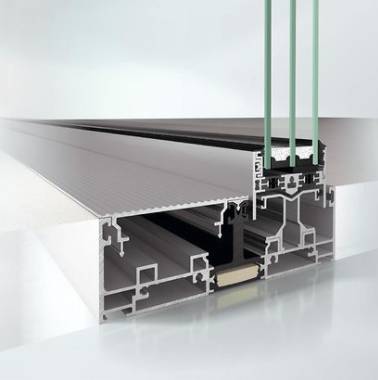

Thermally insulated, panoramic sliding door system with concealed outer frame and narrow profiles. The locking mechanism in the interlock section also allows open vent units to be locked and the optional level threshold facilitates a seamless transition between inside and outside.
Features and benefits:
- Special installation frame allows vents to be bonded easily and accurately.
- Adhesive tape for supporting the pane of glass guarantees a clean fabrication process.
- Drainage solution in the outer frame is simple and easy to fabricate.
- Various drainage levels ensure controlled drainage of water.
- Simple system logic and repeated fabrication steps allow the system to be fabricated quickly and efficiently for every unit type.
Standards:
- DIN EN 12210.
- DIN EN 12207.
- DIN EN 12208.
- DIN V ENV 1627.
- DIN EN 12400.
- DIN EN ISO 10077-2.
General information
Finish | Anodized Powder-coated |
Material | Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L20/60 Doors L20/520 Sliding doors |
Specification data - Sliding door and partition sets
Performance | Insulated. |
Track system | Single track. |
Operation | Manual.Guidance for specification option: Push, pull. |
Execution | Installing hardware. |
Product Reference | ASE67PD Panarama Design |
Resistance to wind load | To EN 12210, C3. |
Air permeability | To EN 12207, Class 4. |
Watertightness | To EN 12208, Class 7A/ 9A. |
Secured By Design | To ENV 1627, Class 2. |
Durability Class | To EN 12400, Class 3. |
Thermal insulation | To ISO 10077-2, from 1.0 W/(m²K). |
Thickness | Up to 49 mm. |
Weight | 400 kg. |
Acoustic performance | Not required. |
Durability | Up to 1 million cycles. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | United Kingdom |
Recyclability | cradle2cradle |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
