SMART Glass Balustrade Systems

Verified by manufacturer 5 months ago

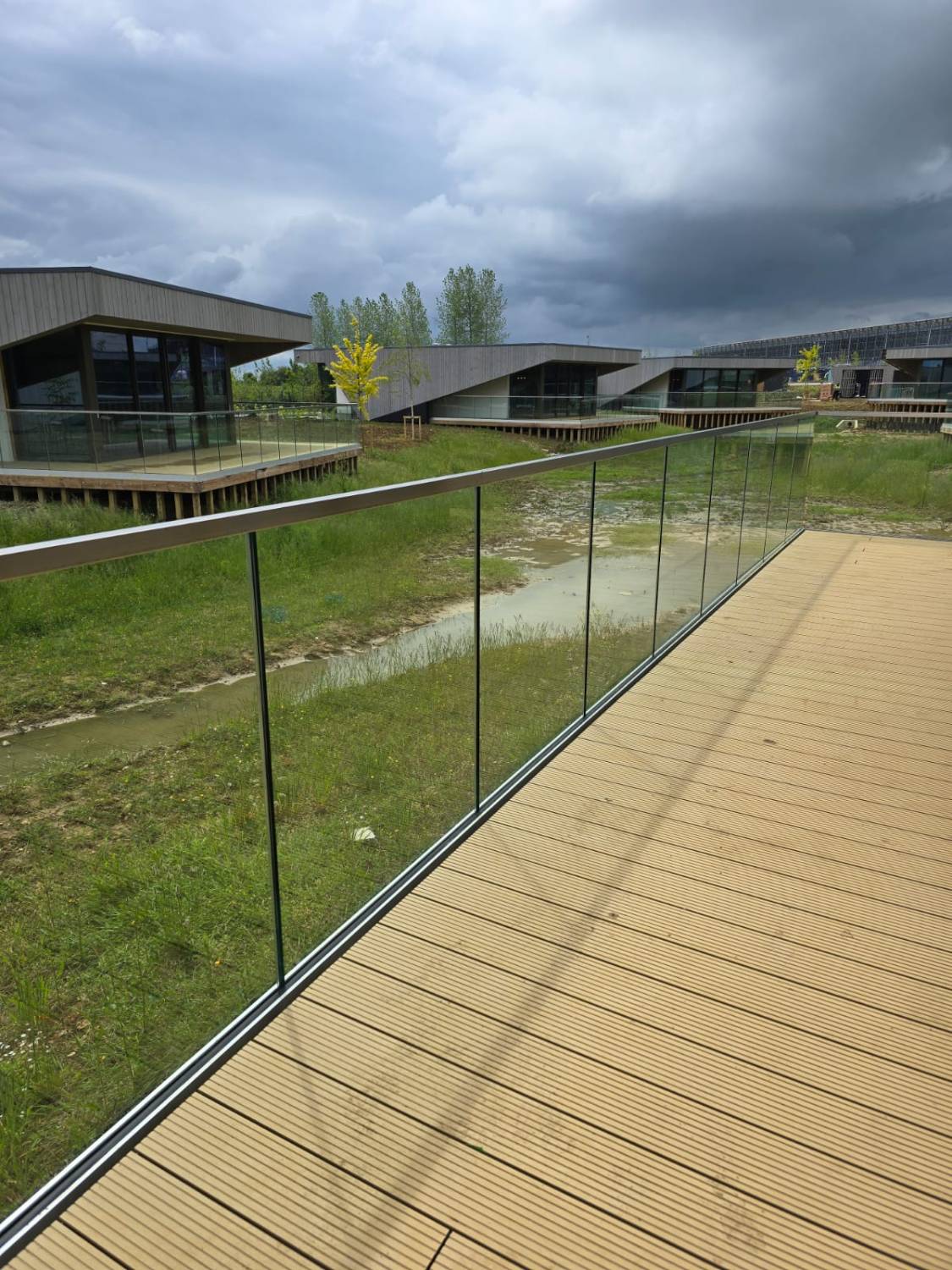

Top fixed balustrade with a U profile channel

Smart Balustrades Variant:
Third party certifications:
  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • Health & Safety Accreditation

    Health & Safety Accreditation

    Certificate type

  • Constructionline

    Constructionline

    Certificate type

A range of structural glass balustrade systems.

Jump to:
01543 399604 Website

Application

  • Suitable for stairs, balconies, terraces and ramps.
  • For external or internal use.
  • Commercial or residential properties.
  • Supply only or with installation.

Description

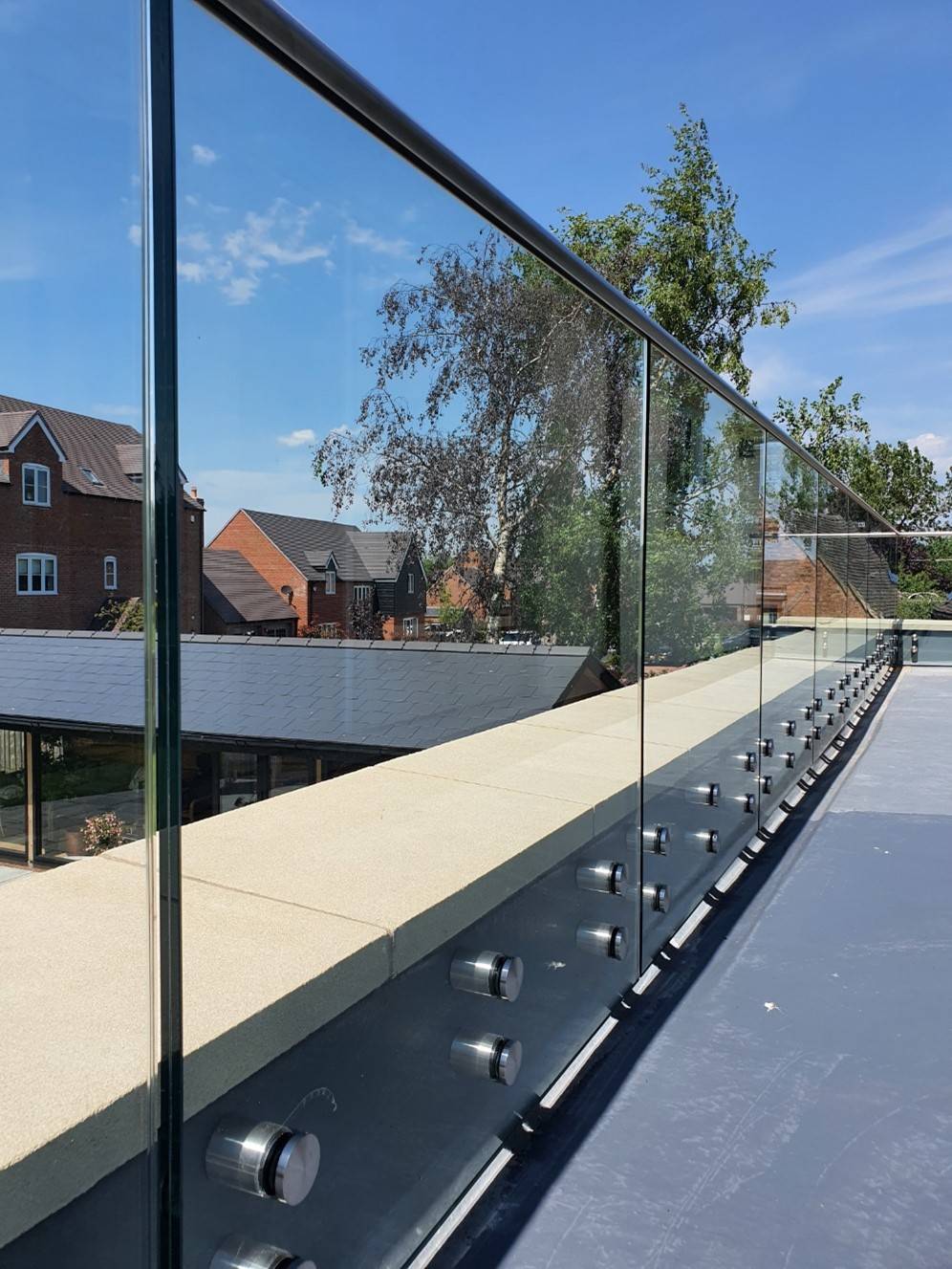

A range of structural glass balustrade systems. Variants include top or side fixed aluminium channels, bolt-through stainless steel adapters, and an insulated roof bracket system.


Balustrade Features:

  • Tubular Posts
  • Tubular Handrails
  • Perforated Infills


Features and benefits:

  • Available with a range of balustrade fixing options.
  • Timber or stainless steel tubular handrails are available.
  • Toughened laminated glass infill panels.
  • Perfect for modernisation.
  • No hot works on site.
  • Pre-manufactured and easy to install
  • Uninterrupted handrail transitions.
  • Custom designs are available.
  • Multiple glass thicknesses are available
  • Can support 0.74kN, 1.5kN and 3kN loadings

General information

Color

Finish

Anodized

Powder-coated

Brushed

Mirrored

Material

Glass

Aluminium

Stainless steel

Shape

Circle

Parallelogram

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Ss_25_60_05_05 Balustrade and guarding systemsPrimary

CAWS

L30/580 Proprietary handrails

L30/560 Proprietary balustrades

L30/55 Proprietary balustrades

L30/70 Proprietary handrails

Specification data - Balustrade and guarding systems

System performance

Loading requirements: 0.74 kN (17.5 mm glass) horizontal line load measured at 1100 mm above FFL with less than 25 mm deflection. 1.5 kN (21.5 mm glass) horizontal line load measured at 1100 mm above FFL with less than 25 mm deflection. 3.0 kN (25.5 mm sentry glass) horizontal line load measured at 1100 mm above FFL with less than 25 mm deflection.

Infills

17.5 mm toughened laminated glass to EN 12150 with flat polished edges and dubbed corners.

21.5 mm toughened laminated glass to EN 12150 with flat polished edges and dubbed corners.

25.5 mm toughened laminated glass to EN 12150 with flat polished edges and dubbed corners.

Rails

-

Handrails

Timber, 42 mm diameter.

Stainless steel, 42 mm diameter.

Timber, 48 mm diameter.

Stainless steel, 48 mm diameter.

Manufacturer guidance

Timber or stainless steel internally, stainless steel externally.

Connection: Timber to be fixed with a suitable adhesive. Stainless steel to be fixed with friction gasket.

Fixing to parent structure

Mechanical anchor.

Guidance for specification option:

Concrete.

Chemical anchor.

Guidance for specification option:

Concrete.

Bolt through.

Guidance for specification option:

Steel.

Drill and tap.

Guidance for specification option:

Steel.

Fixing

Glass: Adjustable wedge system to continuous track.

Base channel

U profile anodized aluminium extruded base track.

Glass colour

Clear.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Glass

Aluminium

Stainless steel

Recyclability

All materials are widely recycled

Third party certifications

Constructionline Gold

Constructionline Gold

Constructionline Gold

Health & Safety Accreditation

Health & Safety Accreditation

Acclaim Accreditation SSIP

Health & Safety Accreditation

Health & Safety Accreditation

DEEM TO SATISFY - Principal Contractor

Constructionline

Constructionline

Social Value
